Key Specifications
Engine
Two cylinder boxer, two-stroke
Power
81 kW / 110 hp @ 7750 rpm
Torque
120 Nm / 12.2 kgf-m / 88 lb-ft @ 6000 rpm
Top Speed
206.8 km/h / 129 mph.
Fuel Capacity
5.28 gallons

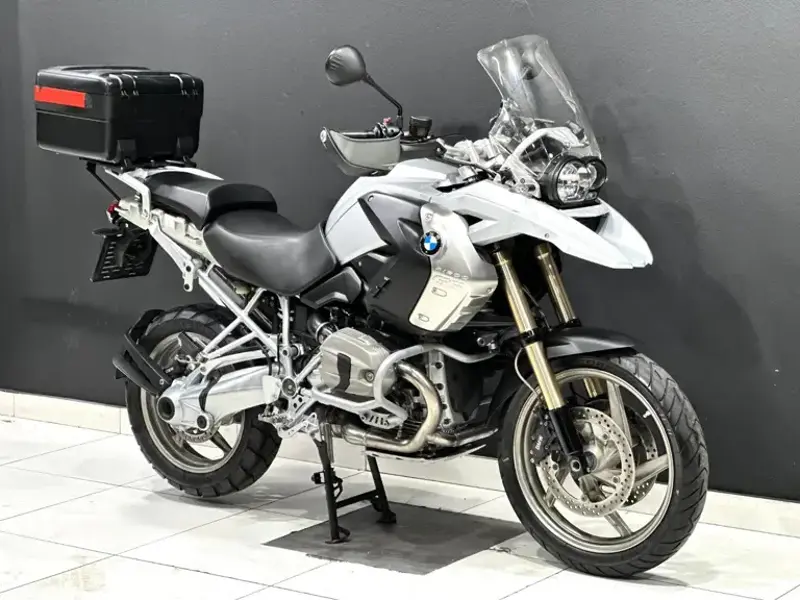

Full 2012 BMW R 1200GS Specifications
Comments
Blata is from the Czech Republic.
Year
2012
Colours
Titan silver, blue
Make Model
BMW R 1200GS
Width (mm)
915 mm
Width (in.)
36.0 inches
Wheelbase (mm)
1,507 mm
Wheelbase (in.)
59.3 inches
Seat Heigth -Alternate (mm)
765 mm
Seat Heigth -Alternate (in.)
30.1 inches
Seat Height (mm)
850 mm
Seat Height (in.)
33.5 inches
Length (mm)
2,210 mm
Length (in.)
87.0 inches
Height (mm)
1,450 mm
Height (in.)
57.1 inches
Seat Height
850 mm - 870 mm / 33.4 in - 34.2 in
Wheelbase
1507 mm / 59.3 in
Height
1450 mm / 57.1 in
Length
2210 mm / 87.0 in
Width
953 mm / 37.5 in
Dry Weight (kg)
203
Dry Weight (lbs.)
447.5 pounds
Fuel Capacity (gal.)
5.28 gallons
Wet Weight (lbs.)
504.9 pounds
Wet Weight (kg)
229.0 kg
Fuel Capacity (l)
20.00 litres
Dry Weight
205 kg / 452 lbs
Fuel Capacity
20 Litres / 5.2 US gal
Wet Weight
238 kg / 525 lbs
Fuel Control
DOHC
Fuel Reserve (gal.)
1.06 gallons
Fuel Reserve (l)
4.00 litres
Engine Type
Two cylinder boxer, two-stroke
Displacement (ci)
71.39 cubic inches
Displacement (cc)
1170.00 cc
CO2
99.8 CO
Bore x Stroke (in,)
4.0 x 2.9 inches
Bore x Stroke (mm)
101.0 x 73.0 mm
Displacement
1170 cc / 71.4 cub in.
Engine Detail
Four stroke, two cylinder horizontally opposed Boxer, DOHC, 4 valves per cylinder
Fuel System
Injection. Electronic intake pipe injection/BMS-K digital engine management with overrun fuel cut-off, twin spark ignition
Bore x Stroke
101 x 73 mm
Compression Ratio
12.0:1
Cooling System
Air/oil cooled
Emissions
Closed-loop 3-way catalytic converter, emission standard EU-3
Engine Lubrication
Dry sump
Exhaust
Fully-controlled three-way catalytic converter
Fuel Consumption
4.30 litres/100 km (23.3 km/l or 54.70 mpg)
Fuel Induction
BMS-K+, ∅50mm throttle butterfly
Fuel Reserve
4L / 1.1 US gal
Ignition
BMS-K
Starter
Electric
Valve System
4
Clutch
Single-plate dry clutch, ∅180mm
Final Drive
Shaft
Gear Ratios
1st 2.375 / 2nd 1.696 / 3rd 1.296 / 4th 0.065 / 5th 0.939 / 6th 0.848:1
Gearbox
6-speed
Transmission / Drive
6 Speed
Trail (in.)
4.0 inches
Trail (mm)
101 mm
Wheel Travel - Front (in.)
7.5 inches
Wheel Travel - Front (in.)
6.7 inches
Wheel Travel - Front (mm)
190 mm
Wheel Travel - Front (mm)
170 mm
Wheel Travel - Rear (in.)
7.5 inches
Wheel Travel - Rear (mm)
190 mm
Frame Type
Tubular steel frame, load-bearing power unit
Suspension - Front
Telelever, stanchion diameter ∅41mm, central spring strut, spring preload 9 times mechanically adjustable
Suspension - Rear
Die-cast aluminium single-sided swinging arm with BMW Motorrad Paralever, WAD strut (travel-related damping), spring pre-load hydraulically adjustable to continuously variable levels by means of handwheel, rebound damping adjustable.
Rake
25.7°
Wheel Travel - Front
190 mm / 7.5 in
Wheel Travel - Rear
200 mm / 7.9 in
Lighting system
12V 55W headlight
Brakes - Front Diameter (in.)
12.0 inches
Brakes - Front Diameter (mm)
305 mm
Brakes - Rear Diameter (in.)
10.4 inches
Brakes - Rear Diameter (mm)
265 mm
Brakes - Front
2 x ∅305mm discs, 4 piston caliper. Optional: BMW Motorrad Integral ABS
Brakes - Rear
Single ∅265mm disc 2 piston caliper. Optional: BMW Motorrad Integral ABS
Rims
Cast aluminium
Tyres - Front
110/80 ZR19
Tyres - Rear
150/70 ZR17
