Key Specifications
Power
72 kW / 98 hp @ 7000 rpm
Torque
115 Nm / 11.7 kgf-m / 84.8 ft-lbs @ 5500 rpm
Top Speed
213 km/h / 132 mph
Fuel Capacity
20.00 litres

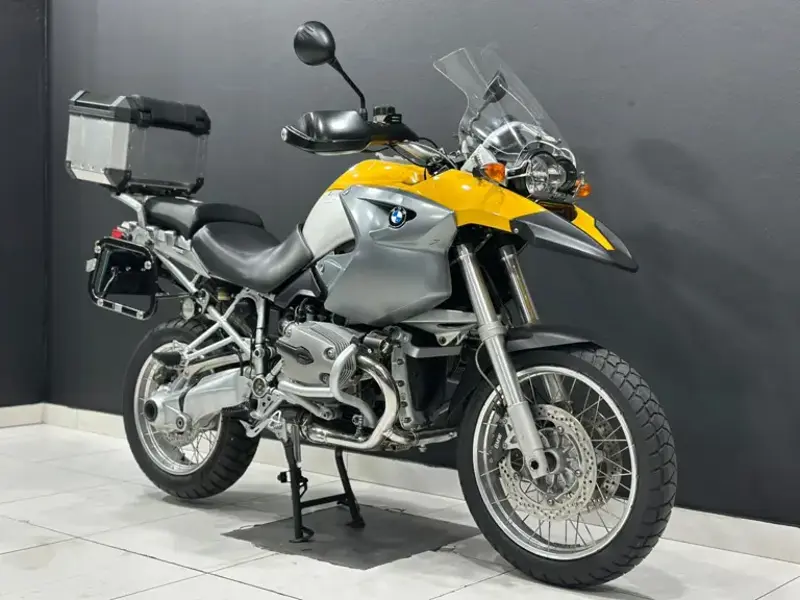

Full 2006 BMW R 1200GS Specifications
Year
2006
Make Model
BMW R 1200GS
Width (mm)
915 mm
Width (in.)
36.0 inches
Wheelbase (mm)
1,520 mm
Wheelbase (in.)
59.8 inches
Seat Height (mm)
840 mm
Seat Height (in.)
33.1 inches
Length (mm)
2,210 mm
Length (in.)
87.0 inches
Height (mm)
1,430 mm
Height (in.)
56.3 inches
Seat Height
895 - 915 mm / 35.2 - 36.0 in
Wheelbase
1507 mm / 59.3 in
Height
1450 mm / 57.1 in (excl. mirrors)
Length
2210 mm / 87.0 in
Width
915 mm / 36.0 in (incl. mirrors)
Wet Weight (lbs.)
496.0 pounds
Wet Weight (kg)
225.0 kg
Fuel Capacity (l)
20.00 litres
Fuel Capacity (gal.)
5.28 gallons
Dry Weight (lbs.)
438.7 pounds
Dry Weight (kg)
199
Dry Weight
199 kg / 439 lbs
Fuel Capacity
20 Litres / 5.2 US gal
Wet Weight
225 kg / 496 lbs
Stroke
4
Engine Type
Twin
Displacement (ci)
71.39 cubic inches
Displacement (cc)
1170.00 cc
Bore x Stroke (mm)
101.0 x 73.0 mm
Bore x Stroke (in,)
4.0 x 2.9 inches
Displacement
1170 cc / 71.4 in.
Engine Detail
Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Fuel System
Injection. Electronic intake pipe injection/digital engine management: BMS-K with overrun fuel cut-off, dual ignition
Bore x Stroke
101 x 73 mm
Compression Ratio
11.0:1
Cooling System
Air/oil cooled
Fuel Consumption
5.5 L/100 km / 18.0 km/l / 42.4 US mpg
Fuel Induction
Electronic intake pipe injection/digital engine management: BMS-K with overrun fuel cut off, dual ignition
Fuel Reserve
4L / 1.1 US gal
Ignition
BMS-K
Starter
Electric
Valve System
4
Battery Capacity
Battery 12 V / 14 Ah, maintenance-free
Clutch
Single plate dry clutch, ∅180 mm, hydraulically operated
Final Drive
Shaft
Gear Ratios
1st 1.583 / 2nd 1.259 / 3rd 1.033 / 4th 0.903 / 5th 0.903 / 6th 0.805:1
Gearbox
6-speed
Transmission / Drive
6 Speed
Trail (in.)
4.3 inches
Trail (mm)
110 mm
Wheel Travel - Front (in.)
1.6 inches
Wheel Travel - Front (in.)
1.6 inches
Wheel Travel - Front (mm)
41 mm
Wheel Travel - Front (mm)
41 mm
Wheel Travel - Rear (in.)
8.7 inches
Wheel Travel - Rear (mm)
220 mm
Frame Type
Tubular space frame, engine load-bearing
Suspension - Front
Telelever, stanchion ∅41mm, central spring strut, spring preload 9 times mechanically adjustable.
Suspension - Rear
Die-cast aluminium single-sided swinging arm with BMW Motorrad Paralever, WAD strut (travel-related damping), spring pre-load hydraulically adjustable to continuously variable levels by means of handwheel, rebound damping adjustable.
Rake
27.1°
Trail
101 mm / 4.0 in
Wheel Travel - Front
190 mm / 7.5 in.
Wheel Travel - Rear
200 mm / 7.9 in.
Alternator
Alternator three-phase alternator 720 W
Brakes - Front Diameter (in.)
12.0 inches
Brakes - Front Diameter (mm)
305 mm
Brakes - Rear Diameter (in.)
10.4 inches
Brakes - Rear Diameter (mm)
265 mm
Brakes - Front
2 x ∅305mm discs, 4 piston caliper
Brakes - Rear
Single ∅265 mm disc, 2 piston caliper
Tyres - Front
110/80 ZR19
Tyres - Rear
150/70 ZR17
