Key Specifications
Engine
In-line four, four-stroke
Top Speed
120.0 km/h / 74.6 mph
Weight
205.9 kg / 454.0 lbs
Fuel Capacity
18.17 litres / 4.80 gallons
Advertisement

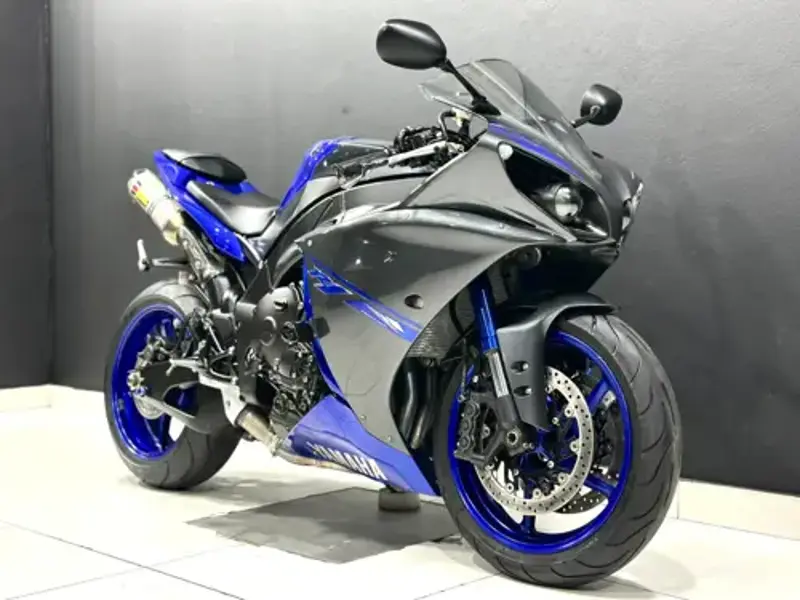

Full 2014 Yamaha YZF-R1 Specifications
Comments
Seven-level Traction Control System.
Colours
Team Yamaha Blue/White, Matte Gray, Rapid Red/Raven
Warranty
1 Year (Limited Factory Warranty)
Storage
Boot for integral helmet
Seat Height
836 mm / 32.9 in.
Wheelbase
1,415 mm / 55.7 in.
Height
1,130 mm / 44.5 in.
Length
2,070 mm / 81.5 in.
Width
714 mm / 28.1 in.
Dry Weight
59 kg / 130.1 lbs
Fuel Capacity
18.17 litres / 4.80 gallons
Wet Weight
205.9 kg / 454.0 lbs
Fuel Control
DOHC
Engine Type
In-line four, four-stroke
Displacement (ci)
60.90 cubic inches
Displacement (cc)
998.00 cc
CO2
165.4 CO
Bore x Stroke (mm)
78.0 x 52.2 mm
Bore x Stroke (in,)
3.1 x 2.1 inches
Engine Detail
Crossplane crankshaft technology. Titanium intake valves.
Fuel System
Injection. Fuel Injection with YCC-T and YCC-I
Compression Ratio
12.7:1
Emissions
No direct emission
Fuel Consumption
7.13 litres/100 km (14.0 km/l or 32.99 mpg)
Ignition
TCI: Transistor Controlled Ignition
Starter
Electric
Valve System
4
Clutch
Multiplate slipper clutch
Final Drive
Chain
Gearbox
6-speed
Primary Drive
#530 O-ring chain
Suspension - Front
43mm inverted fork
Suspension - Rear
Single shock w/piggyback reservoir
Rake
24.0°
Seat
2 people seat
Trail
102 mm / 4.0 in.
Wheel Travel - Front
119 mm / 4.7 in.
Wheel Travel - Rear
119 mm / 4.7 in.
Instrumentation
Digital
Lighting system
LED lights
Brakes - Front Diameter (in.)
12.2 inches
Brakes - Front Diameter (mm)
310 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Rear Diameter (mm)
220 mm
Brakes - Front
Double disc. Six-piston calipers. Radially mounted.
Brakes - Rear
Single disc. Single-piston caliper.
Tyres - Front
120/70-ZR17
Tyres - Front
100/80-10
Tyres - Rear
190/55-ZR17
Tyres - Rear
130/60-13
