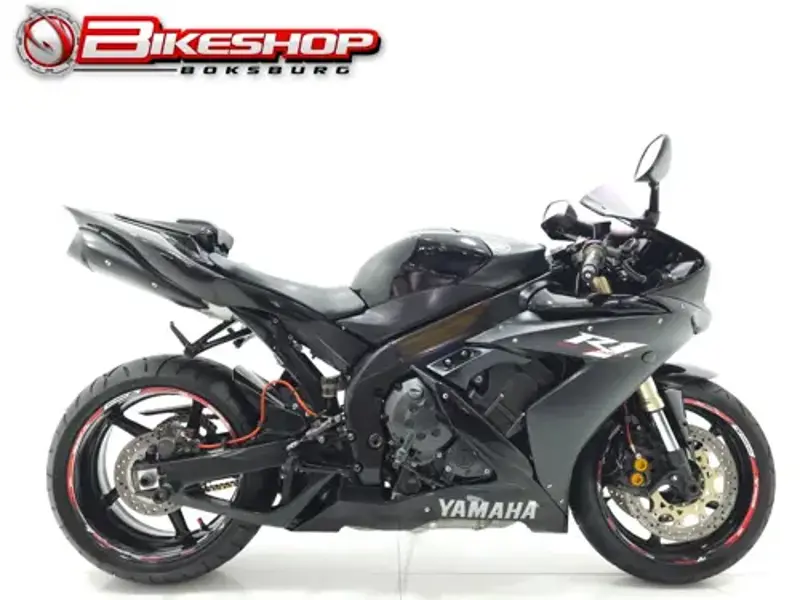

2006 Yamaha YZF-R1 Specifications

Name: 2006 Yamaha YZF-R1
Brand: Yamaha

Sport • Specs last verified 13 July 2026

No images available

Tap to enlarge

2006 Yamaha YZF-R1 Overview

Yamaha YZF-R1 is a sport motorcycle, displacing 998 cc. Power comes from a Twin engine running DOHC valve actuation, a compression ratio of 12.4:1. Bore and stroke come in at 77 x 53.6 mm. On the performance side, it delivers 106.60 of torque. On the road, the 2006 YZF-R1 tips the scales at 173 kg, carries an 18-litre fuel tank, offers a seat height of 835 mm and spans a 1,415 mm wheelbase. The full 2006 Yamaha YZF-R1 spec sheet below covers every technical detail, from suspension travel to tyre sizes.

2006 Yamaha YZF-R1 compared with other bikes in the Sport category

We checked the recorded figures for the 2006 Yamaha YZF-R1 against up to 2003 bikes in the Sport category in our database, counting each model once at the model year nearest to this one.

Only 137 of the other 1606 bikes in the Sport category have a taller seat height than the 835 mm of the YZF-R1.
With 998 cc, the YZF-R1 has the joint 485th largest engine displacement of 2003 bikes in the Sport category, 41% above the category average of 706 cc.
Narrowing the field to the 548 models within five model years of it, the seat height of 835 mm is taller than that of 493 of the other 547.

Versus the 2005 model

The figures we track are unchanged from the 2005 model: displacement and seat height all match.

2006 YZF-R1 - Pros & Cons

Strengths

Fuel injection: Fuel injection means consistent cold starts and clean throttle response without the fussiness of a carbureted setup.
Strong front braking: Stopping power up front is strong thanks to the double disc setup, with plenty of room to upgrade further with braided lines.
Large fuel range: An 18-litre tank means fewer stops on longer rides - a genuine plus for touring or a lengthy daily commute.

Considerations

Tall seat height: At 835 mm, shorter riders will likely be on tiptoes at a standstill - worth sitting on one before you buy.
Chain final drive upkeep: Budget time for routine chain maintenance - it's cheap to replace but needs consistent attention to avoid premature sprocket wear.

Wear Points & Servicing Notes

Fuelling & injector care

The fuel injection on the YZF-R1 needs little beyond good fuel and periodic use of an injector-cleaner additive - no jetting or float-bowl maintenance to worry about.

Valve clearance checks

With DOHC valve gear, the YZF-R1 needs periodic clearance checks; caught early they're a cheap adjustment, left unchecked they accelerate valve seat wear.

Brake disc and pad wear

Braking up front comes from double disc - solid stopping power, with disc and pad wear best checked on the same schedule as tyre changes.

Suspension condition on used examples

The YZF-R1's suspension runs Telescopic forks, 43mm at the front. The rear uses Swingarm. Fork-seal condition and rear linkage play are the two things worth checking before buying used.

Final drive maintenance

The YZF-R1 uses chain final drive, which is cheap to replace but needs regular cleaning, lubrication and tension checks to get a full service life out of the sprockets.

YZF-R1 - Buying & Maintenance Guide

What to check before buying

Before handing over money for a used 2006 Yamaha YZF-R1 with its 998 cc sport, cover the fundamentals: service book and oil change history, drivetrain wear, and any sign of oil weeping around the casings. This model runs chain final drive, so check chain slack and sprocket tooth profile specifically - a worn sprocket is a cheaper fix now than after it's chewed up the next chain. Now 20 years old, this sport is as likely to show age-related wear (perished rubber, seized fasteners, degraded seals) as mileage-related wear. Cold-starting it yourself tells you a lot - a healthy YZF-R1 should catch quickly and settle into a smooth idle.

Oil and filter changes

Nothing protects the YZF-R1's 998 cc twin like disciplined oil changes - stay on the manufacturer's schedule (roughly every 6,000 km or annually). With a 12.4:1 compression ratio, running the octane grade specified in the manual matters more than on a lower-compression engine. Match the viscosity grade to what the owner's manual specifies, not what's cheapest.

Fuel system care

Fuel injection on the YZF-R1 needs little attention beyond decent fuel and an occasional system-cleaner additive. Anything left standing for three months or more should have its fuel drained and replaced before it varnishes the injectors.

Valve clearance service

Valve clearances are easy to overlook on a used YZF-R1 since a bike out of spec doesn't always feel obviously wrong - but the wear it causes is real. Ask the seller for documentation before assuming it's been done.

2006 Yamaha YZF-R1 - Frequently Asked Questions

What engine does the 2006 Yamaha YZF-R1 have?

The 2006 Yamaha YZF-R1 uses a Twin engine with 998 cc of displacement.

How much does the 2006 Yamaha YZF-R1 weigh?

The 2006 Yamaha YZF-R1 weighs 173 kg. This is the manufacturer's dry figure.

How much torque does the 2006 Yamaha YZF-R1 produce?

The 2006 Yamaha YZF-R1 produces 106.60 of torque.

What is the fuel tank capacity of the 2006 Yamaha YZF-R1?

The 2006 Yamaha YZF-R1 has an 18-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 300-360 km between stops.

Is the 2006 Yamaha YZF-R1 suitable for shorter riders?

The 2006 Yamaha YZF-R1 has a seat height of 835 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.

What brakes does the 2006 Yamaha YZF-R1 have?

The 2006 Yamaha YZF-R1 uses double disc at the front and single disc at the rear.

What tyre sizes does the 2006 Yamaha YZF-R1 use?

The 2006 Yamaha YZF-R1 runs 120/70-ZR17 front and 190/50-ZR17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

Yamaha YZF-R1 Spec Evolution

The Yamaha YZF-R1 was produced across 24 model years (1999-2023). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	1999	2000	2001	2003	2004	2005	2006	2007	2008	2009	2010	2011	2012	2013	2014	2015	2016	2017	2018	2019	2020	2021	2022	2023
Wet Weight	205.0 kg / 451.9 lbs	-	-	-	-	-	-	-	-	205.9 kg / 454.0 lbs	205.9 kg / 454.0 lbs	205.9 kg / 454.0 lbs	205.9 kg / 454.0 lbs	205.9 kg / 454.0 lbs	205.9 kg / 454.0 lbs	199.1 kg / 439.0 lbs	199.1 kg / 439.0 lbs	199.0 kg / 438.7 lbs	200.0 kg / 441.0 lbs	200.0 kg / 441.0 lbs	203.2 kg / 448.0 lbs	203.2 kg / 448.0 lbs	203.2 kg / 448.0 lbs	203.2 kg / 448.0 lbs
Dry Weight	-	175 kg / 385.8 lbs	175 kg / 385.8 lbs	174 kg / 383.6 lbs	172 kg / 379.2 lbs	-	173 kg / 381.4 lbs	176.9 kg / 390.0 lbs	176.9 kg / 390.0 lbs	-	-	-	-	210.5 kg / 464.1 lbs	59 kg / 130.1 lbs	-	-	-	-	-	-	-	-	-
Engine Detail	-	-	-	-	-	-	-	-	-	-	-	Titanium intake valves	Titanium intake valves	Titanium intake valves	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.
Engine Type	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four	In-line four	In-line four	Twin	In-line four	In-line four	In-line four	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke
Top Speed	269.0 km/h / 167.1 mph	280.0 km/h / 174.0 mph	270.0 km/h / 167.8 mph	-	-	-	-	-	-	-	-	-	-	-	120.0 km/h / 74.6 mph	-	-	-	-	-	-	-	-	-
Seat Height	820 mm / 32.3 in.	815 mm / 32.1 in.	820 mm / 32.3 in.	815 mm / 32.1 in.	835 mm / 32.9 in.	833 mm / 32.8 in.	835 mm / 32.9 in.	836 mm / 32.9 in.	836 mm / 32.9 in.	833 mm / 32.8 in.	833 mm / 32.8 in.	833 mm / 32.8 in.	833 mm / 32.8 in.	836 mm / 32.9 in.	836 mm / 32.9 in.	856 mm / 33.7 in.	856 mm / 33.7 in.	856 mm / 33.7 in.	856 mm / 33.7 in.	856 mm / 33.7 in.	856 mm / 33.7 in.	856 mm / 33.7 in.	856 mm / 33.7 in.	856 mm / 33.7 in.
Fuel Capacity	18.00 litres / 4.76 gallons	18.00 litres / 4.76 gallons	18.00 litres / 4.76 gallons	17.00 litres / 4.49 gallons	-	18.35 litres / 4.85 gallons	18.00 litres / 4.76 gallons	17.97 litres / 4.75 gallons	17.97 litres / 4.75 gallons	18.16 litres / 4.80 gallons	18.16 litres / 4.80 gallons	18.17 litres / 4.80 gallons	18.17 litres / 4.80 gallons	18.17 litres / 4.80 gallons	18.17 litres / 4.80 gallons	17.03 litres / 4.50 gallons	17.03 litres / 4.50 gallons	17.03 litres / 4.50 gallons	17.03 litres / 4.50 gallons	17.03 litres / 4.50 US gallons	17.03 litres / 4.50 US gallons	17.03 litres / 4.50 US gallons	17.03 litres / 4.50 US gallons	17.03 litres / 4.50 US gallons
Oil Capacity (Quarts)	-	-	-	-	-	-	-	-	-	-	-	0.24 quarts	-	-	-	-	0.26 quarts	0.26 quarts	0.26 quarts	4.12 US quarts	4.12 US quarts	4.12 US quarts	4.12 US quarts	4.12 US quarts

Key Specifications

Engine

Twin

Power

Not recorded

Torque

106.60

Top Speed

Not recorded

Weight

173 kg / 381.4 lbs

Fuel Capacity

18.00 litres / 4.76 gallons

Full 2006 Yamaha YZF-R1 Specifications

Ground Clearance (in.) 5.3 inches

Ground Clearance (mm) 135 mm

Seat Height 835 mm / 32.9 in.

Wheelbase 1,415 mm / 55.7 in.

Height 1,105 mm / 43.5 in.

Length 2,085 mm / 82.1 in.

Width 720 mm / 28.3 in.

Dry Weight 173 kg / 381.4 lbs

Fuel Capacity 18.00 litres / 4.76 gallons

Max Torque 106.60

Power-to-Weight Ratio 0.9976 HP/kg

Bore x Stroke (in,) 3.0 x 2.1 inches

Bore x Stroke (mm) 77.0 x 53.6 mm

Stroke 4

Displacement (cc) 998.00 cc

Displacement (ci) 60.90 cubic inches

Engine Type Twin

Fuel Control DOHC

Fuel System Injection

Compression Ratio 12.4:1

Engine Lubrication Wet Sump

Ignition TCI (digital)

Starter Electric

Valve System 10

Clutch Wet, multiple-disc

Final Drive Chain

Gearbox 5-speed

Suspension - Front Telescopic forks, 43mm

Suspension - Rear Swingarm (Link suspension)

Brakes - Front Diameter (in.) 12.6 inches

Brakes - Front Diameter (mm) 320 mm

Brakes - Rear Diameter (in.) 8.7 inches

Brakes - Rear Diameter (mm) 220 mm

Brakes - Front Double disc

Brakes - Rear Single disc

Tyres - Front 120/70-ZR17

Tyres - Rear 190/50-ZR17

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
