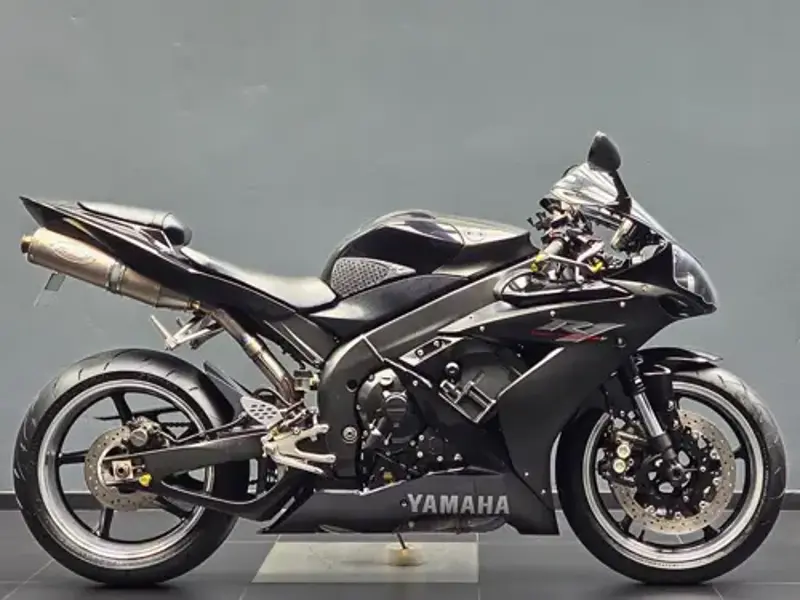

2005 Yamaha YZF-R1 Specifications

Name: 2005 Yamaha YZF-R1
Brand: Yamaha

Sport • Specs last verified 13 July 2026

No images available

Tap to enlarge

2005 Yamaha YZF-R1 Overview

For 2005, Yamaha offers the YZF-R1 as a sport motorcycle with 998 cc on tap. The 2005 Yamaha YZF-R1 is built around an In-line four engine running DOHC valve actuation, a compression ratio of 12.4:1. Internally, bore and stroke are 77 x 53.6 mm. In everyday use, the 2005 YZF-R1 carries a 18.35-litre fuel tank, offers a seat height of 833 mm and spans a 1,394 mm wheelbase. Every technical detail, from suspension travel to tyre sizes, is covered in the full 2005 Yamaha YZF-R1 spec sheet below.

2005 YZF-R1 - Pros & Cons

Strengths

Fuel injection: No choke, no jetting, no altitude compensation to think about - fuel injection just works across a wider range of conditions than carburetion.
Large fuel range: With a 18.35-litre tank, this isn't a bike you'll be stopping for fuel every hour - a real asset on longer trips.

Considerations

Tall seat height: A 833 mm seat puts flat-footing out of reach for a lot of riders - sit on it in person before committing.
Chain final drive upkeep: A chain drivetrain is the most common setup in its class, but it's also the one that demands the most regular hands-on maintenance.

Wear Points & Servicing Notes

Fuelling & injector care

Fuelling on the YZF-R1 comes from fuel injection. Cold starts and throttle response stay consistent across altitude and temperature, the main practical edge over a carbureted equivalent.

Valve clearance checks

Valve clearances on DOHC-equipped engines like the YZF-R1's drift slowly with mileage rather than failing suddenly - sticking to the service interval keeps it a non-issue.

Brake disc and pad wear

Double disc up front provides the primary stopping power; inspect disc thickness and pad wear at each tyre change to catch scoring before it becomes a rotor replacement.

Suspension condition on used examples

Suspension duties are handled by 43mm inverted telescopic fork w/adjustable preload, compression and rebound damping; 4.7´ travel up front and Single shock w/piggyback reservoir and adjustable preload, compression and rebound damping; 5.1´ travel at the rear. Weeping fork seals aren't a dealbreaker on a used bike, but they're a fair basis for negotiating price.

Final drive maintenance

Chain final drive on the YZF-R1 means routine lubing and tension checks are part of ownership - skip them and sprocket wear accelerates noticeably.

YZF-R1 - Buying & Maintenance Guide

What to check before buying

A pre-purchase check on the 2005 Yamaha YZF-R1 should cover the same ground every time: service history, chain and sprocket condition, and any oil seepage around the casings. Start it from cold if you can - a well-kept YZF-R1 settles to a smooth idle within seconds.

Oil and filter changes

Oil changes are the cheapest insurance you can buy for a YZF-R1's engine - keep to the manufacturer's interval rather than stretching it. Use the viscosity grade the manual specifies, not whatever's on sale.

Fuel system care

Injector systems like the YZF-R1's hold up well with basic care - decent fuel, an occasional cleaner additive, and draining old fuel before any layup longer than three months.

Valve clearance service

There's no reliable seat-of-the-pants way to tell if a YZF-R1's valve clearances are in spec - a light top-end tick is the only real warning sign, and by then some wear has already happened. Service records are the only proof.

2005 Yamaha YZF-R1 - Frequently Asked Questions

What engine does the 2005 Yamaha YZF-R1 have?

The 2005 Yamaha YZF-R1 uses an In-line four engine with 998 cc of displacement.

How much does the 2005 Yamaha YZF-R1 weigh?

The 2005 Yamaha YZF-R1 weight is listed in the full spec table below.

What is the fuel tank capacity of the 2005 Yamaha YZF-R1?

The 2005 Yamaha YZF-R1 has a 18.35-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 305-367 km between stops.

Is the 2005 Yamaha YZF-R1 suitable for shorter riders?

The 2005 Yamaha YZF-R1 has a seat height of 833 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.

What brakes does the 2005 Yamaha YZF-R1 have?

The 2005 Yamaha YZF-R1 uses Double disc at the front and Single disc at the rear.

What tyre sizes does the 2005 Yamaha YZF-R1 use?

The 2005 Yamaha YZF-R1 runs 120/70-ZR17 front and 180/55-ZR17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

What fuel system does the 2005 Yamaha YZF-R1 use?

The 2005 Yamaha YZF-R1 uses Injection, providing precise fuelling across the rev range and reliable cold-start behaviour.

Yamaha YZF-R1 Spec Evolution

The Yamaha YZF-R1 was produced across 24 model years (1999-2023). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	1999	2000	2001	2003	2004	2005	2006	2007	2008	2009	2010	2011	2012	2013	2014	2015	2016	2017	2018	2019	2020	2021	2022	2023
Wet Weight	205.0 kg / 451.9 lbs	-	-	-	-	-	-	-	-	205.9 kg / 454.0 lbs	205.9 kg / 454.0 lbs	205.9 kg / 454.0 lbs	205.9 kg / 454.0 lbs	205.9 kg / 454.0 lbs	205.9 kg / 454.0 lbs	199.1 kg / 439.0 lbs	199.1 kg / 439.0 lbs	199.0 kg / 438.7 lbs	200.0 kg / 441.0 lbs	200.0 kg / 441.0 lbs	203.2 kg / 448.0 lbs	203.2 kg / 448.0 lbs	203.2 kg / 448.0 lbs	203.2 kg / 448.0 lbs
Dry Weight	-	175 kg / 385.8 lbs	175 kg / 385.8 lbs	174 kg / 383.6 lbs	172 kg / 379.2 lbs	-	173 kg / 381.4 lbs	176.9 kg / 390.0 lbs	176.9 kg / 390.0 lbs	-	-	-	-	210.5 kg / 464.1 lbs	59 kg / 130.1 lbs	-	-	-	-	-	-	-	-	-
Engine Detail	-	-	-	-	-	-	-	-	-	-	-	Titanium intake valves	Titanium intake valves	Titanium intake valves	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.
Engine Type	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four	In-line four	In-line four	Twin	In-line four	In-line four	In-line four	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke
Top Speed	269.0 km/h / 167.1 mph	280.0 km/h / 174.0 mph	270.0 km/h / 167.8 mph	-	-	-	-	-	-	-	-	-	-	-	120.0 km/h / 74.6 mph	-	-	-	-	-	-	-	-	-
Seat Height	820 mm / 32.3 in.	815 mm / 32.1 in.	820 mm / 32.3 in.	815 mm / 32.1 in.	835 mm / 32.9 in.	833 mm / 32.8 in.	835 mm / 32.9 in.	836 mm / 32.9 in.	836 mm / 32.9 in.	833 mm / 32.8 in.	833 mm / 32.8 in.	833 mm / 32.8 in.	833 mm / 32.8 in.	836 mm / 32.9 in.	836 mm / 32.9 in.	856 mm / 33.7 in.	856 mm / 33.7 in.	856 mm / 33.7 in.	856 mm / 33.7 in.	856 mm / 33.7 in.	856 mm / 33.7 in.	856 mm / 33.7 in.	856 mm / 33.7 in.	856 mm / 33.7 in.
Fuel Capacity	18.00 litres / 4.76 gallons	18.00 litres / 4.76 gallons	18.00 litres / 4.76 gallons	17.00 litres / 4.49 gallons	-	18.35 litres / 4.85 gallons	18.00 litres / 4.76 gallons	17.97 litres / 4.75 gallons	17.97 litres / 4.75 gallons	18.16 litres / 4.80 gallons	18.16 litres / 4.80 gallons	18.17 litres / 4.80 gallons	18.17 litres / 4.80 gallons	18.17 litres / 4.80 gallons	18.17 litres / 4.80 gallons	17.03 litres / 4.50 gallons	17.03 litres / 4.50 gallons	17.03 litres / 4.50 gallons	17.03 litres / 4.50 gallons	17.03 litres / 4.50 US gallons	17.03 litres / 4.50 US gallons	17.03 litres / 4.50 US gallons	17.03 litres / 4.50 US gallons	17.03 litres / 4.50 US gallons
Oil Capacity (Quarts)	-	-	-	-	-	-	-	-	-	-	-	0.24 quarts	-	-	-	-	0.26 quarts	0.26 quarts	0.26 quarts	4.12 US quarts	4.12 US quarts	4.12 US quarts	4.12 US quarts	4.12 US quarts

Key Specifications

Engine

In-line four

Power

Not published by manufacturer

Torque

Not published by manufacturer

Top Speed

Not published by manufacturer

Weight

Not published by manufacturer

Fuel Capacity

18.35 litres / 4.85 gallons

Full 2005 Yamaha YZF-R1 Specifications

Colours Team Yamaha Blue/White; Liquid Silver/Cerulean Silver; Shift Red

Seat Height 833 mm / 32.8 in.

Wheelbase 1,394 mm / 54.9 in.

Length 2,065 mm / 81.3 in.

Fuel Capacity 18.35 litres / 4.85 gallons

Bore x Stroke (in,) 3.0 x 2.1 inches

Bore x Stroke (mm) 77.0 x 53.6 mm

Displacement (cc) 998.00 cc

Displacement (ci) 60.90 cubic inches

Engine Type In-line four

Fuel Control DOHC

Stroke 4

Fuel System Injection

Compression Ratio 12.4:1

Valve System 5

Final Drive Chain

Gearbox 6-speed

Suspension - Front 43mm inverted telescopic fork w/adjustable preload, compression and rebound damping; 4.7´ travel

Suspension - Rear Single shock w/piggyback reservoir and adjustable preload, compression and rebound damping; 5.1´ travel

Rake 24.0°

Brakes - Front Diameter (in.) 12.6 inches

Brakes - Front Diameter (mm) 320 mm

Brakes - Rear Diameter (in.) 8.7 inches

Brakes - Rear Diameter (mm) 220 mm

Brakes - Front Double disc

Brakes - Rear Single disc

Tyres - Front 120/70-ZR17

Tyres - Rear 180/55-ZR17

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
