Key Specifications
Engine
In-line four, four-stroke
Weight
205.9 kg / 454.0 lbs
Fuel Capacity
18.17 litres / 4.80 gallons
Advertisement

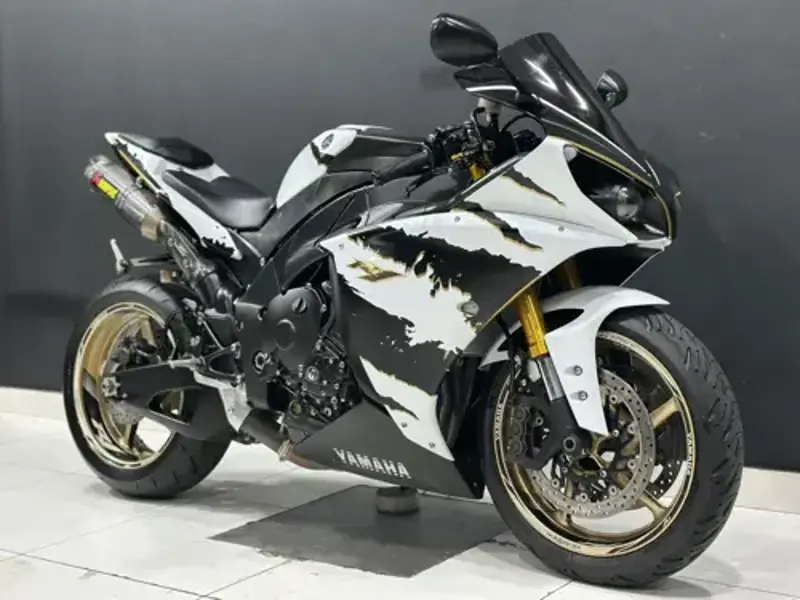

Full 2013 Yamaha YZF-R1 Specifications
Colours
Team Yamaha Blue/White, Matte Gray, Rapid Red/Raven
Warranty
1 Year (Limited Factory Warranty)
Seat Height
836 mm / 32.9 in.
Wheelbase
1,415 mm / 55.7 in.
Height
1,130 mm / 44.5 in.
Length
2,070 mm / 81.5 in.
Width
714 mm / 28.1 in.
Dry Weight
210.5 kg / 464.1 lbs
Fuel Capacity
18.17 litres / 4.80 gallons
Wet Weight
205.9 kg / 454.0 lbs
Fuel Control
DOHC
Engine Type
In-line four, four-stroke
Displacement (ci)
60.90 cubic inches
Displacement (cc)
998.00 cc
CO2
165.4 CO
Bore x Stroke (in,)
3.1 x 2.1 inches
Bore x Stroke (mm)
78.0 x 52.2 mm
Engine Detail
Titanium intake valves
Fuel System
Injection. Fuel Injection with YCC-T and YCC-I
Compression Ratio
12.7:1
Fuel Consumption
7.13 litres/100 km (14.0 km/l or 32.99 mpg)
Ignition
TCI: Transistor Controlled Ignition
Starter
Electric
Valve System
4
Final Drive
Chain
Gearbox
6-speed
Primary Drive
#530 O-ring chain
Suspension - Front
43mm inverted fork
Suspension - Rear
Single shock w/piggyback reservoir
Rake
24.0°
Seat
2-person seat
Trail
102 mm / 4.0 in.
Wheel Travel - Front
119 mm / 4.7 in.
Wheel Travel - Rear
102 mm / 4.0 in.
Brakes - Front Diameter (in.)
12.2 inches
Brakes - Front Diameter (mm)
310 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Rear Diameter (mm)
220 mm
Brakes - Front
Double disc. Six-piston calipers. Radially mounted.
Brakes - Rear
Single disc. Single-piston caliper.
Tyres - Front
120/70-ZR17
Tyres - Rear
190/55-ZR17
