Key Specifications
Weight
176.9 kg / 390.0 lbs
Fuel Capacity
17.97 litres / 4.75 gallons
Advertisement

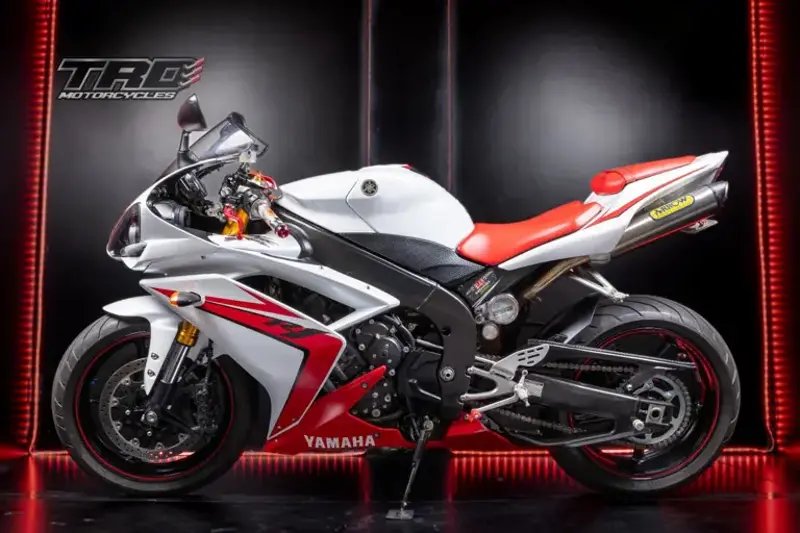

Full 2008 Yamaha YZF-R1 Specifications
Colours
Blue/white, raven, candy red
Seat Height
836 mm / 32.9 in.
Wheelbase
1,415 mm / 55.7 in.
Height
1,110 mm / 43.7 in.
Length
2,060 mm / 81.1 in.
Width
719 mm / 28.3 in.
Dry Weight
176.9 kg / 390.0 lbs
Fuel Capacity
17.97 litres / 4.75 gallons
Bore x Stroke (in,)
3.0 x 2.1 inches
Bore x Stroke (mm)
77.0 x 53.6 mm
Displacement (cc)
998.00 cc
Displacement (ci)
60.90 cubic inches
Engine Type
In-line four
Fuel Control
DOHC
Stroke
4
Fuel System
Injection. Fuel Injection with YCC-T and YCC-I
Compression Ratio
12.7:1
Ignition
TCI
Valve System
4
Final Drive
Chain
Gearbox
6-speed
Suspension - Front
43mm inverted fork
Suspension - Rear
Single shock w/piggyback reservoir
Rake
24.0°
Trail
102 mm / 4.0 in.
Wheel Travel - Front
119 mm / 4.7 in.
Wheel Travel - Rear
102 mm / 4.0 in.
Brakes - Front Diameter (in.)
12.2 inches
Brakes - Front Diameter (mm)
310 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Rear Diameter (mm)
220 mm
Brakes - Front
Double disc
Brakes - Rear
Single disc
Tyres - Front
120/70-ZR17
Tyres - Rear
190/50-ZR17
