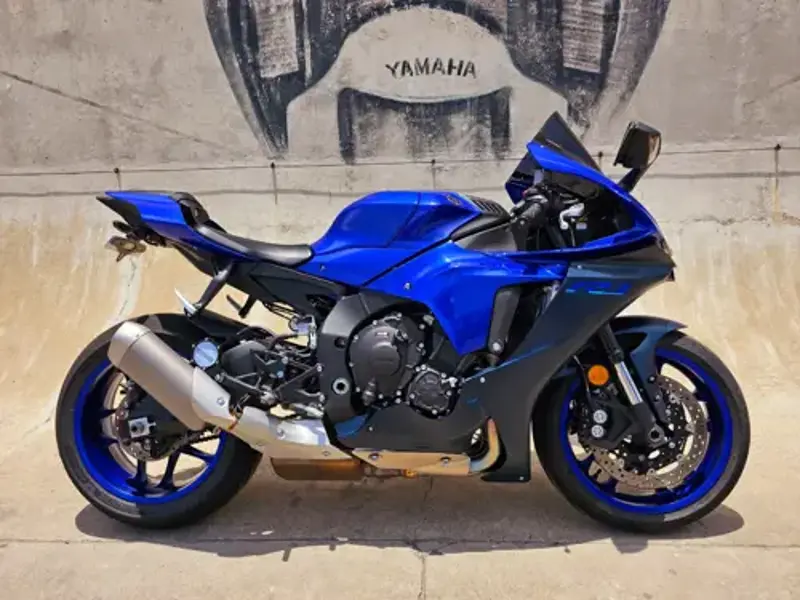

2023 Yamaha YZF-R1 Specifications

Name: 2023 Yamaha YZF-R1
Brand: Yamaha

Sport • Specs last verified 13 July 2026

No images available

Tap to enlarge

2023 Yamaha YZF-R1 Overview

The 2023 Yamaha YZF-R1 is a sport motorcycle built around 998 cc of displacement. Under the tank sits an In-line four, four-stroke engine running Double Overhead Cams/Twin Cam (DOHC) valve actuation, a compression ratio of 13.0:1. The bore and stroke measures 79 x 50.9 mm. 2023 Yamaha YZF-R1 delivers 112.4 Nm @ 11500 Revolutions of torque. From a practical standpoint, the 2023 YZF-R1 tips the scales at 203.2 kg, carries a 17.03-litre fuel tank, offers a seat height of 856 mm and spans a 1405 mm wheelbase. Scroll down for the complete 2023 Yamaha YZF-R1 spec sheet covering every technical detail from suspension travel to tyre sizes.

2023 YZF-R1 - Pros & Cons

Strengths

Fuel injection: The fuel injection system delivers crisp throttle response and reliable cold starts regardless of altitude or temperature.

Considerations

Tall seat height: The 856 mm seat height will challenge shorter riders - tiptoeing at low speeds is something to factor into your decision.
Chain final drive upkeep: Chain final drive needs regular cleaning, lubrication and tension checks to get full life out of the sprockets.

Wear Points & Servicing Notes

Fuelling & injector care

Fuelling comes from fuel injection. Systems like this are largely maintenance-free beyond keeping fuel quality decent and injectors clear - a fuel-system cleaner every service interval is cheap insurance.

Valve clearance checks

Double Overhead Cams/Twin Cam (DOHC) valve actuation on the YZF-R1 means clearances should be checked at the manufacturer's specified interval - they can tighten as mileage accumulates, and a light top-end tick is usually the first sign.

Brake disc and pad wear

The Double disc. ABS. Hydraulic. Four-piston calipers. front brake gives strong, progressive stopping power. Disc thickness and pad depth are worth checking at every tyre change, since worn pads can score the disc surface.

Suspension condition on used examples

Up front, the YZF-R1 runs 43mm KYB® inverted fork; fully adjustable and KYB® piggyback shock, fully adjustable at the rear. On a used example, check fork seals for weeping oil and test the rear linkage for play - seals are a relatively cheap fix but useful when negotiating price.

Final drive maintenance

Final drive is by chain - expect to clean and lube it every few hundred kilometres and check tension regularly; a neglected chain wears the sprockets faster than the chain itself.

Frame & chassis check

The frame is Aluminum Deltabox - worth a visual check for corrosion or impact damage around the head-stock and swingarm pivot on any used example, since frame damage is far costlier to fix than any service item.

YZF-R1 - Buying & Maintenance Guide

What to check before buying

When inspecting a used 2023 Yamaha YZF-R1, start with the basics: check the service book for oil change frequency, inspect the chain and sprockets for wear, and look for oil seepage around the engine casings and rocker covers. A cold start test is invaluable - a well-maintained YZF-R1 should fire up cleanly and settle to a smooth idle within a few seconds.

Oil and filter changes

Regular oil changes are the single most important maintenance task on any YZF-R1. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. The sump holds 3.90 litres, so budget for that volume of quality motorcycle-specific engine oil. Always use the correct viscosity grade as specified in the owner's manual.

Fuel system care

The YZF-R1's fuel injection system is durable but benefits from quality fuel and the occasional use of a fuel-system cleaner additive. If the bike has been stored for more than three months, drain and replace the fuel to prevent varnish deposits in the injectors.

Valve clearance service

Check that valve clearances have been adjusted at the correct intervals on any used YZF-R1. A bike with clearances out of spec doesn't always feel obviously wrong - but tight clearances accelerate valve seat wear. Ask for service documentation proving it's been done.

2023 Yamaha YZF-R1 - Frequently Asked Questions

What engine does the 2023 Yamaha YZF-R1 have?

The 2023 Yamaha YZF-R1 uses an In-line four, four-stroke engine with 998 cc of displacement.

How much does the 2023 Yamaha YZF-R1 weigh?

The 2023 Yamaha YZF-R1 weighs 203.2 kg. This is the manufacturer's wet figure.

How much power does the 2023 Yamaha YZF-R1 make?

The 2023 Yamaha YZF-R1 produces 112.4 Nm @ 11500 Revolutions of torque.

What is the fuel tank capacity of the 2023 Yamaha YZF-R1?

The 2023 Yamaha YZF-R1 has a 17.03-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 283-340 km between stops.

Is the 2023 Yamaha YZF-R1 suitable for shorter riders?

The 2023 Yamaha YZF-R1 has a seat height of 856 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.

What brakes does the 2023 Yamaha YZF-R1 have?

The 2023 Yamaha YZF-R1 uses Double disc. ABS. Hydraulic. Four-piston calipers. at the front and Single disc. ABS. at the rear.

What tyre sizes does the 2023 Yamaha YZF-R1 use?

The front tyre size on the 2023 Yamaha YZF-R1 is 120/70-ZR17.

How much oil does the 2023 Yamaha YZF-R1 take?

The 2023 Yamaha YZF-R1 takes 3.90 litres of engine oil at a full oil and filter change. Always verify against the dipstick or sight glass after filling.

Yamaha YZF-R1 Spec Evolution

The Yamaha YZF-R1 was produced across 24 model years (1999-2023). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	1999	2000	2001	2003	2004	2005	2006	2007	2008	2009	2010	2011	2012	2013	2014	2015	2016	2017	2018	2019	2020	2021	2022	2023
Wet Weight	205.0 kg / 451.9 lbs	-	-	-	-	-	-	-	-	205.9 kg / 454.0 lbs	205.9 kg / 454.0 lbs	205.9 kg / 454.0 lbs	205.9 kg / 454.0 lbs	205.9 kg / 454.0 lbs	205.9 kg / 454.0 lbs	199.1 kg / 439.0 lbs	199.1 kg / 439.0 lbs	199.0 kg / 438.7 lbs	200.0 kg / 441.0 lbs	200.0 kg / 441.0 lbs	203.2 kg / 448.0 lbs	203.2 kg / 448.0 lbs	203.2 kg / 448.0 lbs	203.2 kg / 448.0 lbs
Dry Weight	-	175 kg / 385.8 lbs	175 kg / 385.8 lbs	174 kg / 383.6 lbs	172 kg / 379.2 lbs	-	173 kg / 381.4 lbs	176.9 kg / 390.0 lbs	176.9 kg / 390.0 lbs	-	-	-	-	210.5 kg / 464.1 lbs	59 kg / 130.1 lbs	-	-	-	-	-	-	-	-	-
Engine Detail	-	-	-	-	-	-	-	-	-	-	-	Titanium intake valves	Titanium intake valves	Titanium intake valves	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.	Crossplane crankshaft technology. Titanium intake valves.
Engine Type	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four	In-line four	In-line four	Twin	In-line four	In-line four	In-line four	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke
Top Speed	269.0 km/h / 167.1 mph	280.0 km/h / 174.0 mph	270.0 km/h / 167.8 mph	-	-	-	-	-	-	-	-	-	-	-	120.0 km/h / 74.6 mph	-	-	-	-	-	-	-	-	-
Seat Height	820 mm / 32.3 in.	815 mm / 32.1 in.	820 mm / 32.3 in.	815 mm / 32.1 in.	835 mm / 32.9 in.	833 mm / 32.8 in.	835 mm / 32.9 in.	836 mm / 32.9 in.	836 mm / 32.9 in.	833 mm / 32.8 in.	833 mm / 32.8 in.	833 mm / 32.8 in.	833 mm / 32.8 in.	836 mm / 32.9 in.	836 mm / 32.9 in.	856 mm / 33.7 in.	856 mm / 33.7 in.	856 mm / 33.7 in.	856 mm / 33.7 in.	856 mm / 33.7 in.	856 mm / 33.7 in.	856 mm / 33.7 in.	856 mm / 33.7 in.	856 mm / 33.7 in.
Fuel Capacity	18.00 litres / 4.76 gallons	18.00 litres / 4.76 gallons	18.00 litres / 4.76 gallons	17.00 litres / 4.49 gallons	-	18.35 litres / 4.85 gallons	18.00 litres / 4.76 gallons	17.97 litres / 4.75 gallons	17.97 litres / 4.75 gallons	18.16 litres / 4.80 gallons	18.16 litres / 4.80 gallons	18.17 litres / 4.80 gallons	18.17 litres / 4.80 gallons	18.17 litres / 4.80 gallons	18.17 litres / 4.80 gallons	17.03 litres / 4.50 gallons	17.03 litres / 4.50 gallons	17.03 litres / 4.50 gallons	17.03 litres / 4.50 gallons	17.03 litres / 4.50 US gallons	17.03 litres / 4.50 US gallons	17.03 litres / 4.50 US gallons	17.03 litres / 4.50 US gallons	17.03 litres / 4.50 US gallons
Oil Capacity (Quarts)	-	-	-	-	-	-	-	-	-	-	-	0.24 quarts	-	-	-	-	0.26 quarts	0.26 quarts	0.26 quarts	4.12 US quarts	4.12 US quarts	4.12 US quarts	4.12 US quarts	4.12 US quarts

Key Specifications

Engine

In-line four, four-stroke

Power

Not published by manufacturer

Torque

112.4 Nm (11.5 kgf-m or 82.9 ft.lbs) @ 11500 Revolutions

Top Speed

Not published by manufacturer

Weight

203.2 kg / 448.0 lbs

Fuel Capacity

17.03 litres / 4.50 US gallons

Full 2023 Yamaha YZF-R1 Specifications

Comments Small windscreen. Power delivery modes. Traction Control. Slide control. Lift control. Launch control.

Colours Team Yamaha Blue, Performance Black

Warranty 1 Year Limited Factory Warranty

Ground Clearance (mm) 130 mm

Ground Clearance (in.) 5.1 inches

Seat Height 856 mm / 33.7 in.

Wheelbase 1405 mm / 55.3 in.

Height 1166 mm / 45.9 in.

Length 2055 mm / 80.9 in.

Width 691 mm / 27.2 in.

Oil Capacity (Quarts) 4.12 US quarts

Oil Capacity (l) 3.90 litres

Fuel Capacity 17.03 litres / 4.50 US gallons

Wet Weight 203.2 kg / 448.0 lbs

Max Torque 112.4 Nm (11.5 kgf-m or 82.9 ft.lbs) @ 11500 Revolutions

Bore x Stroke (in,) 3.1 x 2.0 inches

Bore x Stroke (mm) 79.0 x 50.9 mm

CO2 165.4 CO2 g/km. (CO2 - Carbon dioxide emission)

Displacement (cc) 998.0 cc

Displacement (ci) 60.90 cubic inches

Engine Type In-line four, four-stroke

Fuel Control Double Overhead Cams/Twin Cam (DOHC)

Engine Detail Crossplane crankshaft technology. Titanium intake valves.

Fuel System Injection. Fuel Injection with YCC-T and YCC-I

Compression Ratio 13.0:1

Exhaust Titanium Exhaust

Fuel Consumption 7.13 litres/100 km (14.0 km/l or 32.99 mpg)

Ignition TCI: Transistor Controlled Ignition

Starter Electric

Valve System 4

Clutch Multiplate assist and slipper clutch

Final Drive Chain (final drive)

Gearbox 6-speed

Frame Type Aluminum Deltabox

Suspension - Front 43mm KYB® inverted fork; fully adjustable

Suspension - Rear KYB® piggyback shock, fully adjustable

Rake 24.0°

Trail 102 mm / 4.0 in.

Wheel Travel - Front 119 mm / 4.7 in.

Wheel Travel - Rear 119 mm / 4.7 in.

Instrumentation Colour TFT.

Lighting system All-LED Lighting

Brakes - Front Double disc. ABS. Hydraulic. Four-piston calipers.

Brakes - Rear Single disc. ABS.

Rims Bridgestone Battlax Street RS11 tires

Tyres - Front 120/70-ZR17

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
