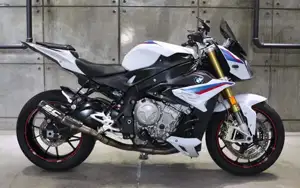

BMW S 1000R Specs

2014 - 2023 • 11 variants

The BMW S 1000R is a naked bike produced from 2014 to 2023 across 11 variants. It is powered by a four stroke, transverse four cylinder, dohc, 4 valves per cylinder displacing 999.0 cc. Peak power output is 165 hp. Peak torque is 112 Nm.

About the BMW S 1000R

BMW introduced the S 1000R as part of their Naked bike range, with production running from 2014 to 2023. This technical reference page documents the full specification sheet for the BMW S 1000R, including engine displacement, power and torque figures, frame and suspension geometry, braking systems, and overall dimensions. Select a model year above to view year-specific technical data. Specifications are compiled from official manufacturer sources.

AdSense - 728Ã90

BMW S 1000R by Year

2023 BMW S 1000R View specs →

2022 BMW S 1000R View specs →

2021 BMW S 1000R View specs →

2020 BMW S 1000R View specs →

2019 BMW S 1000R View specs →

2018 BMW S 1000R View specs →

2017 BMW S 1000R View specs →

2016 BMW S 1000R View specs →

2015 BMW S 1000R View specs →

2014 BMW S 1000R View specs →

Spec Evolution

How key specs changed across production years.

Specification	2014	2015	2016	2017	2018	2019	2020	2021	2022	2023
Comments	-	-	Switchable ABS.	Switchable ABS.	Switchable ABS. Riding Modes Rain and Road.	Switchable ABS. Riding Modes Rain and Road.	-	-	Three Ride Modes (Rain, Road, Dynamic, incl. HSC). Six-axis sensor incl. ABS Pro and DTC.	Three Ride Modes (Rain, Road, Dynamic, incl. HSC). Six-axis sensor incl. ABS Pro and DTC.
CO2	125.3 CO2 g/km. (CO2 - Carbon dioxide emission)	125.3 CO2 g/km. (CO2 - Carbon dioxide emission)	125.3 CO2 g/km. (CO2 - Carbon dioxide emission)	-	155.4 CO2 g/km. (CO2 - Carbon dioxide emission)	155.4 CO2 g/km. (CO2 - Carbon dioxide emission)	155.4 CO2 g/km. (CO2 - Carbon dioxide emission)	155.4 CO2 g/km. (CO2 - Carbon dioxide emission)	155.4 CO2 g/km. (CO2 - Carbon dioxide emission)	155.4 CO2 g/km. (CO2 - Carbon dioxide emission)
Brakes - Front Diameter (in.)	12.6 inches	12.6 inches	12.6 inches	12.6 inches	12.6 inches	-	-	-	-
Brakes - Rear Diameter (mm)	220 mm	220 mm	220 mm	220 mm	220 mm	-	-	-	-
Brakes - Rear Diameter (in.)	8.7 inches	8.7 inches	8.7 inches	8.7 inches	8.7 inches	-	-	-	-
Brakes - Front Diameter (mm)	320 mm	320 mm	320 mm	320 mm	320 mm	-	-	-	-
Seat Height	820 mm / 33.3 in	820 mm / 33.3 in	820 mm / 33.3 in	814 mm / 32.0 in. ↓	814 mm / 32.0 in.	814 mm / 32.0 in.	824 mm / 32.4 in ↑	814 mm / 32.0 in. ↓	831 mm / 32.7 in. ↑	831 mm / 32.7 in.
Frame Type	Construction type aluminium bridge frame, enqine self-supporting	Construction type aluminium bridge frame, enqine self-supporting	Construction type aluminium bridge frame, enqine self-supporting	Construction type aluminium bridge frame, enqine self-supporting	Construction type aluminium bridge frame, enqine self-supporting	Construction type aluminium bridge frame, enqine self-supporting	Aluminium composite bridge frame, self-supporting engine	Aluminium composite bridge frame, partially self-supporting engine	Bridge-type aluminum laminate frame with load-bearing engine	Bridge-type aluminum laminate frame with load-bearing engine
Engine Detail	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder	Titanium valves	-
Brakes - Front	2 x 320mm Discs, 4 piston calipers	2 x 320mm Discs, 4 piston calipers	2 x 320mm Discs, 4 piston calipers	2 x 320mm Discs, 4 piston calipers	2 x 320mm Discs, 4 piston calipers	2 x 320mm Discs, 4 piston calipers	2 x 320mm Discs, 4 piston calipers	Double disc. ABS. Floating discs. Four-piston calipers.	Double disc. ABS. Floating discs. Four-piston calipers.	Double disc. ABS. Floating discs. Four-piston calipers.
Wheelbase	1422 mm / 56 in	1422 mm / 56 in	1422 mm / 56 in	1440 mm / 56.7 in ↑	1440 mm / 56.7 in	1440 mm / 56.7 in.	1440 mm / 56.7 in	1439 mm / 56.7 in. ↓	1439 mm / 56.7 in.	1448 mm / 57.0 in. ↑
Fuel Capacity	17.5 Litres / 4.6 US gal.	17.5 Litres / 4.6 US gal.	17.5 Litres / 4.6 US gal.	17.5 Litres / 4.6 US gal	17.5 Litres / 4.6 US gal.	17.5 Litres / 4.6 US gal.	16.5 Litres / 4.4 US gal ↓	17.50 litres / 4.62 US gallons ↑	17.50 litres / 4.62 US gallons	16.65 litres / 4.40 US gallons ↓
Brakes - Rear	Single 220mm disc, 1 piston caliper	Single 220mm disc, 1 piston caliper	Single 220mm disc, 1 piston caliper	Single 220mm disc, 1 piston caliper	Single 220mm disc, 1 piston caliper	Single 220mm disc, 1 piston caliper	Single 220 mm disk, single-piston floating caliper	Single disc. ABS. Floating disc. Single-piston caliper.	Single disc. ABS. Floating disc. Single-piston caliper.	Single disc. ABS. Floating disc. Single-piston caliper.
Suspension - Front	Upside-down fork, stanchion diameter 46 mm, adjustable for bump and rebound SA DDC: electronically adjustable damping	Upside-down fork, stanchion diameter 46 mm, adjustable for bump and rebound SA DDC: electronically adjustable damping	Upside-down fork, stanchion diameter 46 mm, adjustable for bump and rebound SA DDC: electronically adjustable damping	Upside-down fork, stanchion diameter 46 mm, adjustable for bump and rebound SA DDC: electronically adjustable damping	Upside-down fork, stanchion diameter 46 mm, adjustable for bump and rebound SA DDC: electronically adjustable damping	Upside-down fork, stanchion diameter 46 mm, adjustable for bump and rebound SA DDC: electronically adjustable damping	Upside-down fork, stanchion diameter 46 mm, adjustable for bump and rebound SA DDC: electronically adjustable damping	Upside-down telescopic fork 46 mm, compression and rebound stage adjustable	Upside-down telescopic fork 46 mm, compression and rebound stage adjustable	Upside-down telescopic fork 46 mm, compression and rebound stage adjustable
Suspension - Rear	Aluminium double-strut swingarm with central spring strut, adjustable rebound, SA DDC: electronically adjustable damping	Aluminium double-strut swingarm with central spring strut, adjustable rebound, SA DDC: electronically adjustable damping	Aluminium double-strut swingarm with central spring strut, adjustable rebound, SA DDC: electronically adjustable damping	Aluminium double-strut swingarm with central spring strut, adjustable rebound, SA DDC: electronically adjustable damping	Aluminium double-strut swingarm with central spring strut, adjustable rebound, SA DDC: electronically adjustable damping	Aluminium double-strut swingarm with central spring strut, adjustable rebound, SA DDC: electronically adjustable damping	Aluminium double-strut swingarm with central spring strut, adjustable rebound, SA DDC: electronically adjustable damping	Aluminium 2-sided swing arm, rebound damping adjustable	Aluminum swingarm, central shock absorber, adjustable rebound and compression damping and adjustable spring preload	Aluminum swingarm, central shock absorber, adjustable rebound and compression damping and adjustable spring preload
Top Speed	201.2 km/h / 125.0 mph	200.0 km/h / 124.3 mph ↓	200.0 km/h / 124.3 mph	-	-	-	201.2 km/h / 125.0 mph	201.2 km/h / 125.0 mph	199.6 km/h / 124.0 mph ↓	199.6 km/h / 124.0 mph
Fuel System	-	Injection. Electronic intake pipe injection/digital engine management including knock sensor (BMS-K-P)	Injection. Electronic intake pipe injection/digital engine management including knock sensor (BMS-K-P)	Injection. Electronic injection	Injection. Electronic injection	Injection. Electronic injection	Injection. Electronic injection	Injection. Electronic fuel injection with ride-by-wire throttle system and knock sensor	Injection. Electronic port fuel injection, BMS-K+ electronic engine management with RPM cut-off, twin-spark ignition: BMS-O with ride by wire.	Injection. Electronic port fuel injection, BMS-K+ electronic engine management with RPM cut-off, twin-spark ignition: BMS-O with ride by wire.
Colours	White, Blue, Red	White, Dark blue, Red	Light White, Black Storm Metallic, Racing Red	Grey, Racing Red/Black Storm Metallic, Red/blue/white	Motorsport, Catalano Grey, Racing Red/Black Storm	Style HP, Racing Red/Black Storm Metallic, Black Storm Metallic	Black Storm Metallic, Racing Red/Black Storm Metallic, San Marino Blue	Black Storm Metallic, San Marino Blue, Motorsport red/blue/white	Black Storm Metallic, San Marino Blue, Motorsport red/blue/white	Black Storm Metallic, Bluestone Metallic, Motorsport red/blue/white
ABS	Optional equipment BMW Motorrad Race ABS (partially integral, disengageable)	Optional equipment BMW Motorrad Race ABS (partially integral, disengageable)	Optional equipment BMW Motorrad Race ABS (partially integral, disengageable)	Optional equipment BMW Motorrad Race ABS (partially integral, disengageable)	Optional equipment BMW Motorrad Race ABS (partially integral, disengageable)	Optional equipment BMW Motorrad Race ABS (partially integral, disengageable)	Optional equipment BMW Motorrad Race ABS (partially integral, disengageable)	-	-	-
Clutch	Multiple disc antihopping clutch in oil bath, mechanically operated	Multiple disc antihopping clutch in oil bath, mechanically operated	Multiple disc antihopping clutch in oil bath, mechanically operated	Multiple disc antihopping clutch in oil bath, mechanically operated	Multiple disc antihopping clutch in oil bath, mechanically operated	Multiple disc antihopping clutch in oil bath, mechanically operated	Self-reinforcing multi-plate anti-hopping wet clutch, mechanically activated	Multiplate cluth in oil bath, anti-hopping clutch, mechanically controlled	Multi-disc oil bath (anti-hopping) with self-reinforcement	Multi-disc oil bath (anti-hopping) with self-reinforcement
Final Drive	Chain 17/45	Chain 17/45	Chain 17/45	Chain 17/45	Chain 17/45	Chain 17/45	Chain 17/45	Chain (final drive)	Chain (final drive)	Chain (final drive)
Height	1228 mm / 48.3 in	1228 mm / 48.3 in	1228 mm / 48.3 in	1228 mm / 48.3 in	1228 mm / 48.3 in	1228 mm / 48.3 in	1228 mm / 48.3 in	1228 mm / 48.3 in.	1228 mm / 48.3 in.	1228 mm / 48.3 in.
Rims	Cast Aluminium	Cast Aluminium	Cast aluminum wheels	Cast aluminium wheels	Cast aluminium	Cast aluminium	Cast aluminium. Black with Red Pinstripe.	Cast aluminium. Black with Red Pinstripe.	-	Cast aluminum
Length	2057 mm / 81.0 in	2057 mm / 81.0 in	2057 mm / 81.0 in	2057 mm / 81.0 in	2057 mm / 81.0 in.	2057 mm / 81.0 in.	846 mm / 33.3 in (with mirrors) ↓	2057 mm / 81.0 in. ↑	2057 mm / 81.0 in.	2057 mm / 81.0 in.
Wet Weight	207 kg / 456.3 lbs	207 kg / 456.3 lbs	207 kg / 456.3 lbs	205 kg / 452 lbs ↓	205 kg / 452 lbs	205 kg / 452 lbs	193.5 kg / 426.6 ↓	205.0 kg / 451.9 lbs ↑	199.0 kg / 438.7 lbs ↓	199.0 kg / 438.7 lbs
Compression Ratio	12.0:1/at least premium unleaded (95 RON)	12.0:1/at least premium unleaded (95 RON)	12.0:1/at least premium unleaded (95 RON)	12.0:1	12.0:1	12.0:1	13.3:1 ↑	12.1:1 ↓	12.5:1 ↑	12.5:1
Gear Ratios	1st 2.6471 / 2nd 2.091 / 3rd 1.727 / 4th 1.500 / 5th 1.360 / 6th 1.261:1	1st 2.6471 / 2nd 2.091 / 3rd 1.727 / 4th 1.500 / 5th 1.360 / 6th 1.261:1	1st 2.6471 / 2nd 2.091 / 3rd 1.727 / 4th 1.500 / 5th 1.360 / 6th 1.261:1	Ist 2.647 2nd 2.091 3rd 1.727 4th 1.5 5th 1.36 6th 1.261 ↑	Ist 2.647 2nd 2.091 3rd 1.727 4th 1.5 5th 1.36 6th 1.261	Ist 2.647 2nd 2.091 3rd 1.727 4th 1.5 5th 1.36 6th 1.261	1st 2.647 2nd 2.091 3rd 1.727 4th 1.500 5th 1.360 6th 1.261 ↓	-	-	-
Emissions	Two regulated three-way catalytic converters, EU-3	Two regulated three-way catalytic converters, EU-3	Two regulated three-way catalytic converters, EU-3	Two regulated three-way catalytic converters, EU-3	Two regulated three-way catalytic converters, EU-3	Two regulated three-way catalytic converters, EU-3	Two regulated three-way catalytic converters, EU-3	Closed-loop 3-way catalytic converter, emission standard EU-4 ↑	Closed-loop 3-way catalytic converter, emission standard Euro 4	Closed-loop 3-way catalytic converter, emission standard Euro 4
Tyres - Front	120/70 ZR17	120/70 ZR17	120/70 ZR17	120/70 ZR17	120/70 ZR17	120/70 ZR17	120/70 ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17
Width	845 mm / 33.3 in (incl. mirrors)	845 mm / 33.3 in (incl. mirrors)	845 mm / 33.3 in (incl. mirrors)	845 mm / 33.3 in (incl. mirrors)	845 mm / 33.3 in (incl. mirrors)	845 mm / 33.3 in (incl. mirrors)	846 mm / 33.3 in (with mirrors) ↑	845 mm / 33.3 in. ↓	845 mm / 33.3 in.	845 mm / 33.3 in.
Tyres - Rear	190/55 ZR17	190/55 ZR17	190/55 ZR17	190/55 ZR17	190/55 ZR17	190/55 ZR17	190/55 ZR17	-	-
Wheel Caster	98.5 mm / 3.8 in	98.5 mm / 3.8 in	98.5 mm / 3.8 in	98.5 mm / 3.88 in	98.5 mm / 3.88 in	98.5 mm / 3.88 in	98.5 mm / 3.88 in	-	-	-
Primary Drive	Chain Driveline	Chain Driveline	Chain Driveline	Chain 17/45	Chain 17/45	Chain 17/45	Chain 17/45	Chain 17/45	-
Rake	24.6°	24.6°	24.6°	24.8° ↑	24.8°	24.8°	24.8°	24.8°	24.8°	24.8°
Exhaust	-	-	-	-	HP Slip on Titanium Silencer	HP Slip on Titanium Silencer	HP Slip on Titanium Silencer	HP Slip on Titanium Silencer	-
Lighting system	-	-	-	-	-	-	-	-	Full LED lighting	LED lighting
Fuel Consumption	5.40 litres/100 km (18.5 km/l or 43.56 mpg)	5.40 litres/100 km (18.5 km/l or 43.56 mpg)	5.40 litres/100 km (18.5 km/l or 43.56 mpg)	-	6.70 litres/100 km (14.9 km/l or 35.11 mpg)	6.70 litres/100 km (14.9 km/l or 35.11 mpg)	6.70 litres/100 km (14.9 km/l or 35.11 mpg)	6.70 litres/100 km (14.9 km/l or 35.11 mpg)	6.70 litres/100 km (14.9 km/l or 35.11 mpg)	6.70 litres/100 km (14.9 km/l or 35.11 mpg)
Transmission / Drive	6 Speed	6 Speed	6 Speed	6 Speed	6 Speed	6 Speed	6 Speed	-	-	-
Steering Head Angle	65.4°	65.4°	65.4°	65.4°	65.4°	65.4°	65.4°	-	-	-
Fuel Reserve	4.00 litres / 1.06 gallons	4.00 litres / 1.06 gallons	4.00 litres / 1.06 gallons	4.00 litres / 1.06 gallons	4.00 litres / 1.06 gallons	-	4.00 litres / 1.06 US gallons	4.00 litres / 1.06 US gallons	4.00 litres / 1.06 US gallons	4.00 litres / 1.06 US gallons
Trail	99 mm / 3.9 in.	99 mm / 3.9 in.	99 mm / 3.9 in.	813 mm / 32.0 in ↑	813 mm / 32.0 in	813 mm / 32.0 in	813 mm / 32.0 in	99 mm / 3.9 in. ↓	99 mm / 3.9 in.	99 mm / 3.9 in.
Wheel Travel - Front	120 mm / 4.7 in	120 mm / 4.7 in	120 mm / 4.7 in	120 mm / 4.7 in	120 mm / 4.7"	120 mm / 4.7 in	120 mm / 4.7 in	120 mm / 4.7 in.	120 mm / 4.7 in.	120 mm / 4.7 in.
Max Power	118 kW / 160 hp @ 11000 rpm	118 kW / 160 hp @ 11000 rpm	118 kW / 160 hp @ 11000 rpm	121 kW / 165 hp @ 11000 rpm ↑	121 kW / 165 hp @ 11000 rpm	121 kW / 165 hp @ 11000 rpm	121 kW / 165 hp @ 11000 rpm	-	-	-
Wheel Travel - Rear	120 mm / 4.7 in	120 mm / 4.7 in	120 mm / 4.7 in	120 mm / 4.7 in	120 mm / 4.7"	120 mm / 4.7 in	117 mm / 4.6 in ↓	120 mm / 4.7 in. ↑	117 mm / 4.6 in. ↓	117 mm / 4.6 in.
Max Torque	112 Nm / 11.4 kgf-m / 82.6 lb-ft @ 9250 rpm	112 Nm / 11.4 kgf-m / 82.6 lb-ft @ 9250 rpm	112 Nm / 11.4 kgf-m / 82.6 lb-ft @ 9250 rpm	112 Nm / 84 lb-ft @ 9250 rpm	112 Nm / 84 lb-ft @ 9250 rpm	112 Nm / 84 lb-ft @ 9250 rpm	113 Nm / 83.3 lb-ft @ 10500 rpm ↑	114.0 Nm (11.6 kgf-m or 84.1 ft.lbs) @ 9250 Revolutions" ↑	114.0 Nm (11.6 kgf-m or 84.1 ft.lbs) @ 9250 Revolutions"	114.0 Nm (11.6 kgf-m or 84.1 ft.lbs) @ 9250 rpm
Power-to-Weight Ratio	0.9157 HP/kg	0.8989 HP/kg ↓	0.8989 HP/kg	0.8989 HP/kg	0.9270 HP/kg ↑	0.9116 HP/kg ↓	0.9270 HP/kg ↑	0.9270 HP/kg	-
Intake / Outlet Valve Diameter	33.5 mm / 27.2 mm	33.5 mm / 27.2 mm	33.5 mm / 27.2 mm	33.5 mm / 27.2 mm	33.5 mm / 27.2 mm	33.5 mm / 27.2 mm	33.5/27.2	-	-	-
Starter	Electric	Electric	Electric	Electric	Electric	Electric	Electric, 0.8 kW	Electric	Electric	Electric
Throttle valve diameter	48 mm	48 mm	48 mm	-	-	-	48 mm / 1.9 in	-	-	-
