Key Specifications
Engine
In-line four, four-stroke
Power
118 kW / 160 hp @ 11000 rpm
Torque
112 Nm / 11.4 kgf-m / 82.6 lb-ft @ 9250 rpm
Weight
207 kg / 456.3 lbs
Fuel Capacity
4.62 gallons

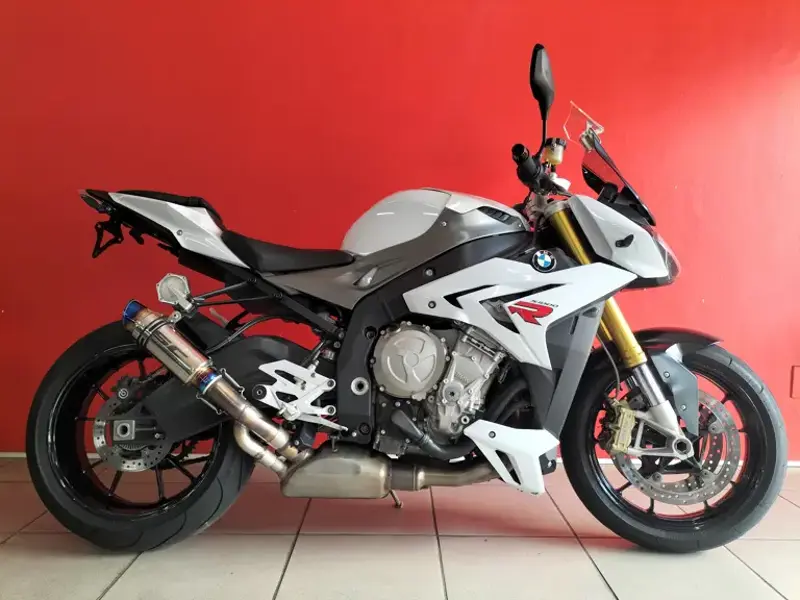

Full 2014 BMW S 1000R Specifications
Year
2014
Colours
White, Blue, Red
Make Model
BMW S 1000R
Width (mm)
845 mm
Width (in.)
33.3 inches
Height (in.)
44.8 inches
Height (mm)
1,138 mm
Wheelbase (mm)
1,439 mm
Wheelbase (in.)
56.7 inches
Length (in.)
81.0 inches
Length (mm)
2,057 mm
Seat Height (in.)
32.0 inches
Seat Height (mm)
814 mm
Seat Height
820 mm / 33.3 in
Wheelbase
1422 mm / 56 in
Height
1228 mm / 48.3 in
Length
2057 mm / 81.0 in
Width
845 mm / 33.3 in (incl. mirrors)
Dry Weight (kg)
178
Dry Weight (lbs.)
392.4 pounds
Fuel Capacity (gal.)
4.62 gallons
Fuel Capacity (l)
17.50 litres
Wet Weight (kg)
207.0 kg
Wet Weight (lbs.)
456.4 pounds
Fuel Capacity
17.5 Litres / 4.6 US gal.
Wet Weight
207 kg / 456.3 lbs
Fuel Reserve (l)
4.00 litres
Fuel Reserve (gal.)
1.06 gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
In-line four, four-stroke
CO2
125.3 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
80.0 x 49.7 mm
Bore x Stroke (in,)
3.1 x 2.0 inches
Displacement
999 cc / 60.9 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
80 x 49.7 mm
Compression Ratio
12.0:1/at least premium unleaded (95 RON)
Cooling System
Liquid cooled
Emissions
Two regulated three-way catalytic converters, EU-3
Fuel Consumption
5.40 litres/100 km (18.5 km/l or 43.56 mpg)
Fuel Induction
Electronic fuel injection, digital motor electronics BMS-KP
Intake / Outlet Valve Diameter
33.5 mm / 27.2 mm
Lubrication
Wet sump
Starter
Electric
Throttle valve diameter
48 mm
Clutch
Multiple disc antihopping clutch in oil bath, mechanically operated
Final Drive
Chain 17/45
Gear Ratios
1st 2.6471 / 2nd 2.091 / 3rd 1.727 / 4th 1.500 / 5th 1.360 / 6th 1.261:1
Gearbox
6-speed
Primary Drive
Chain Driveline
Primary Drive Ratios
1.652
Transmission / Drive
6 Speed
Trail (in.)
3.9 inches
Trail (mm)
99 mm
Wheel Travel - Front (in.)
4.7 inches
Wheel Travel - Front (mm)
120 mm
Wheel Travel - Rear (in.)
4.7 inches
Wheel Travel - Rear (mm)
120 mm
Frame Type
Construction type aluminium bridge frame, enqine self-supporting
Suspension - Front
Upside-down fork, stanchion diameter 46 mm, adjustable for bump and rebound SA DDC: electronically adjustable damping
Suspension - Rear
Aluminium double-strut swingarm with central spring strut, adjustable rebound, SA DDC: electronically adjustable damping
Rake
24.6°
Steering Head Angle
65.4°
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
120 mm / 4.7 in
Electrical System
Alternator W 350 Battery V/Ah 12/9, maintenance-free (with DWA 12/10) Headlight W low beam 1 x H 7/55 W high beam 1 x H 7/55 W
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front Diameter (mm)
320 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Rear Diameter (mm)
220 mm
Brakes - Front
2 x 320mm Discs, 4 piston calipers
Brakes - Rear
Single 220mm disc, 1 piston caliper
ABS
Optional equipment BMW Motorrad Race ABS (partially integral, disengageable)
Rims
Cast Aluminium
Tyres - Front
120/70 ZR17
Tyres - Rear
190/55 ZR17
Wheel Caster
98.5 mm / 3.8 in
Wheels - Front
3.50 x 17
Wheels - Rear
6.00 x 17
