Key Specifications
Engine
In-line four, four-stroke
Power
121 kW / 165 hp @ 11000 rpm
Torque
112 Nm / 84 lb-ft @ 9250 rpm
Fuel Capacity
4.62 gallons

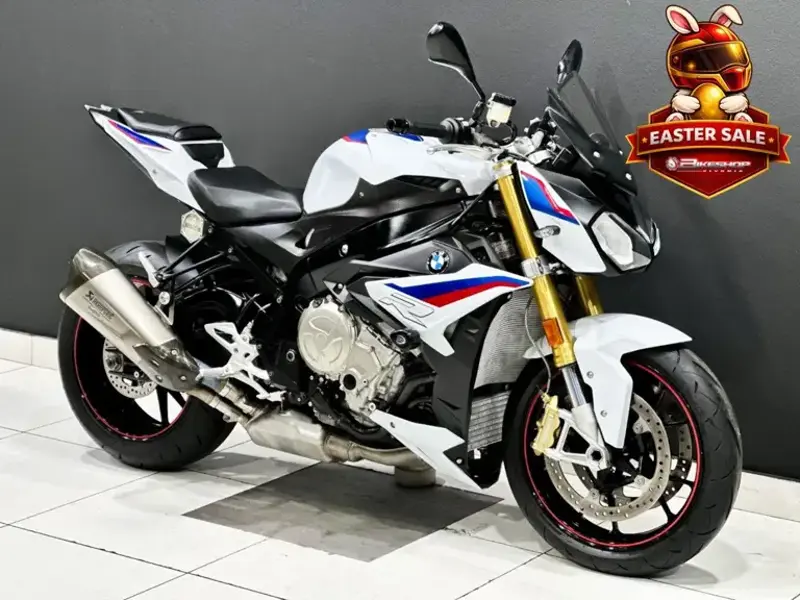

Full 2018 BMW S 1000R Specifications
Comments
Switchable ABS. Riding Modes Rain and Road.
Year
2018
Colours
Motorsport, Catalano Grey, Racing Red/Black Storm
Make Model
BMW S 1000R
Width (mm)
845 mm
Width (in.)
33.3 inches
Wheelbase (mm)
1,439 mm
Wheelbase (in.)
56.7 inches
Seat Height (mm)
814 mm
Seat Height (in.)
32.0 inches
Length (mm)
2,057 mm
Length (in.)
81.0 inches
Height (mm)
1,138 mm
Height (in.)
44.8 inches
Wheelbase
1440 mm / 56.7 in
Height
1228 mm / 48.3 in
Length
2057 mm / 81.0 in.
Width
845 mm / 33.3 in (incl. mirrors)
Dry Weight (kg)
178
Dry Weight (lbs.)
392.4 pounds
Fuel Capacity (gal.)
4.62 gallons
Fuel Capacity (l)
17.50 litres
Wet Weight (kg)
205.0 kg
Wet Weight (lbs.)
451.9 pounds
Fuel Capacity
17.5 Litres / 4.6 US gal.
Wet Weight
205 kg / 452 lbs
Fuel Reserve (gal.)
1.06 gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Fuel Reserve (l)
4.00 litres
Engine Type
In-line four, four-stroke
Displacement (ci)
60.96 cubic inches
Displacement (cc)
999.00 cc
CO2
155.4 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
80.0 x 49.7 mm
Bore x Stroke (in,)
3.1 x 2.0 inches
Displacement
999 cc / 60.9 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Fuel System
Injection. Electronic injection
Bore x Stroke
80 x 49.7 mm
Compression Ratio
12.0:1
Cooling System
Liquid cooled
Emissions
Two regulated three-way catalytic converters, EU-3
Exhaust
HP Slip on Titanium Silencer
Fuel Consumption
6.70 litres/100 km (14.9 km/l or 35.11 mpg)
Fuel Induction
Electronic fuel injection, digital motor electronics BMS-KP
Intake / Outlet Valve Diameter
33.5 mm / 27.2 mm
Lubrication
Wet sump
Starter
Electric
Valve System
4
Clutch
Multiple disc antihopping clutch in oil bath, mechanically operated
Final Drive
Chain 17/45
Gear Ratios
Ist 2.647 2nd 2.091 3rd 1.727 4th 1.5 5th 1.36 6th 1.261
Gearbox
6-speed
Primary Drive
Chain 17/45
Primary Drive Ratios
1.652
Transmission / Drive
6 Speed
Wheel Travel - Rear (mm)
120 mm
Wheel Travel - Rear (in.)
4.7 inches
Wheel Travel - Front (mm)
120 mm
Wheel Travel - Front (in.)
4.7 inches
Trail (mm)
99 mm
Trail (in.)
3.9 inches
Frame Type
Construction type aluminium bridge frame, enqine self-supporting
Suspension - Front
Upside-down fork, stanchion diameter 46 mm, adjustable for bump and rebound SA DDC: electronically adjustable damping
Suspension - Rear
Aluminium double-strut swingarm with central spring strut, adjustable rebound, SA DDC: electronically adjustable damping
Rake
24.8°
Steering Head Angle
65.4°
Trail
813 mm / 32.0 in
Wheel Travel - Front
120 mm / 4.7"
Wheel Travel - Rear
120 mm / 4.7"
Electrical System
Alternator W 350 Battery V/Ah 12/9, maintenance-free (with DWA 12/10) Headlight W low beam 1 x H 7/55 W high beam 1 x H 7/55 W
Brakes - Rear Diameter (mm)
220 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Front Diameter (mm)
320 mm
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front
2 x 320mm Discs, 4 piston calipers
Brakes - Rear
Single 220mm disc, 1 piston caliper
ABS
Optional equipment BMW Motorrad Race ABS (partially integral, disengageable)
Rims
Cast aluminium
Tyres - Front
120/70 ZR17
Tyres - Rear
190/55 ZR17
Wheel Caster
98.5 mm / 3.88 in
Wheels - Front
3.50 x 17
Wheels - Rear
6.00 x 17
