Brakes - Front Diameter (mm)
|
310 mm | 310 mm | 320 mm ↑ | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm | - | - | |
|
Stroke
|
4 | 4 | 4 | - | - | - | - | - | - | - | - | - | - | |
|
Brakes - Rear Diameter (in.)
|
8.7 inches | 8.7 inches | 8.7 inches | 8.7 inches | 8.7 inches | 8.7 inches | 8.7 inches | 8.7 inches | 8.7 inches | 8.7 inches | 8.7 inches | - | - | |
|
Brakes - Rear Diameter (mm)
|
220 mm | 220 mm | 220 mm | 220 mm | 220 mm | 220 mm | 220 mm | 220 mm | 220 mm | 220 mm | 220 mm | - | - | |
|
Mods from previous model
|
- | - | - | - | Also called USHighland 507 ATX QuadRacer. | - | - | - | - | - | - | - | - | |
|
Brakes - Front Diameter (in.)
|
12.2 inches | 12.2 inches | 12.6 inches ↑ | 12.6 inches | 12.6 inches | 12.6 inches | 12.6 inches | 12.6 inches | 12.6 inches | 12.6 inches | 12.6 inches | - | - | |
|
CO2
|
- | - | - | 147.3 CO | 147.6 CO ↑ | - | 133.2 CO | 133.2 CO2 g/km. (CO2 - Carbon dioxide emission) | 133.2 CO2 g/km. (CO2 - Carbon dioxide emission) | 133.2 CO2 g/km. (CO2 - Carbon dioxide emission) | 133.2 CO2 g/km. (CO2 - Carbon dioxide emission) | 133.2 CO2 g/km. (CO2 - Carbon dioxide emission) | 143.6 CO2 g/km. (CO2 - Carbon dioxide emission) ↑ | 143.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Bore x Stroke (mm)
|
75.0 x 56.5 mm | 75.0 x 56.5 mm | 76.0 x 55.1 mm ↑ | 76.0 x 55.1 mm | 76.0 x 55.1 mm | 76.0 x 55.1 mm | 76.0 x 55.1 mm | 76.0 x 55.1 mm | 76.0 x 55.1 mm | 76.0 x 55.1 mm | 76.0 x 55.1 mm | 76.0 x 55.0 mm | 76.0 x 55.0 mm | 76.0 x 55.1 mm |
|
Comments
|
- | - | - | - | - | French brand. | Model ID: CBR1000RR | Model ID: CBR1000RR | Model ID: CBR1000RR | Model ID: CBR1000RR | Model ID: CBR1000RR | Model ID: CBR1000RR | Model ID: CBR1000RR. Small windscreen. | Model ID: CBR1000RR. ABS model id: CBR1000RA. Small windscreen. |
|
Displacement (cc)
|
998.00 cc | 998.00 cc | 999.00 cc ↑ | 999.00 cc | 999.00 cc | 999.00 cc | 999.00 cc | - | - | - | - | 998.0 cc | 998.0 cc | 998.0 cc |
|
Displacement (ci)
|
60.90 cubic inches | 60.90 cubic inches | 60.96 cubic inches ↑ | 60.96 cubic inches | 60.96 cubic inches | 60.96 cubic inches | 60.96 cubic inches | - | - | - | - | 60.90 cubic inches | 60.90 cubic inches | 60.90 cubic inches |
|
Engine Type
|
In-line four | In-line four | In-line four | In-line four, four-stroke | In-line four, four-stroke | In-line four, four-stroke | In-line four, four-stroke | In-line four, four-stroke | In-line four, four-stroke | In-line four, four-stroke | In-line four, four-stroke | In-line four, four-stroke | In-line four, four-stroke | In-line four, four-stroke |
|
Fuel Control
|
DOHC | DOHC | DOHC | DOHC | DOHC | DOHC | DOHC | Double Overhead Cams/Twin Cam (DOHC) | Double Overhead Cams/Twin Cam (DOHC) | Double Overhead Cams/Twin Cam (DOHC) | Double Overhead Cams/Twin Cam (DOHC) | Double Overhead Cams/Twin Cam (DOHC) | Double Overhead Cams/Twin Cam (DOHC) | Double Overhead Cams/Twin Cam (DOHC) |
|
Ground Clearance (in.)
|
- | - | - | - | 5.0 inches | - | 5.3 inches | - | - | - | - | - | 5.3 inches | 5.3 inches |
|
Ground Clearance (mm)
|
- | - | - | - | 127 mm | - | 135 mm | - | - | - | - | - | 135 mm | 135 mm |
|
Seat Height
|
826 mm / 32.5 in. | 826 mm / 32.5 in. | 820 mm / 32.3 in. ↓ | 820 mm / 32.3 in. | 820 mm / 32.3 in. | 820 mm / 32.3 in. | 818 mm / 32.2 in. ↓ | 818 mm / 32.2 in. | 820 mm / 32.3 in. ↑ | 820 mm / 32.3 in. | 820 mm / 32.3 in. | 820 mm / 32.3 in. | 820 mm / 32.3 in. | 833 mm / 32.8 in. ↑ |
|
Frame Type
|
- | - | - | - | Aluminium | - | Steel | - | Diamond; aluminium composite twin spar | Diamond; aluminium composite twin spar | Diamond; aluminium composite twin spar | Diamond; aluminium composite twin spar | Steel mono backbone | Steel mono backbone |
|
Dry Weight
|
- | 179.6 kg / 396.0 lbs | - | 320 kg / 705.5 lbs | 320 kg / 705.5 lbs | 320 kg / 705.5 lbs | 320 kg / 705.5 lbs | - | - | - | - | - | - | - |
|
Brakes - Front
|
Double disc | Double disc. Full-floating. 4-piston calipers. | Double disc | Double disc | Double disc | Double disc. Dual radial-mounted four-piston calipers with full floating 320mm discs | Double disc. Floating discs. Four-piston calipers. Radially mounted. | Double disc. Floating discs. Four-piston calipers. Radially mounted. | Double disc. Floating discs. Four-piston calipers. Radially mounted. | Double disc. Floating discs. Four-piston calipers. Radially mounted. | Double disc. Floating discs. Four-piston calipers. Radially mounted. | Double disc. Floating discs. Four-piston calipers. Radially mounted. | Double disc. Floating discs. Four-piston calipers. Radially mounted. | Double disc. Floating discs. Four-piston calipers. Radially mounted. Optional ABS. |
|
Wheelbase
|
1,412 mm / 55.6 in. | 1,412 mm / 55.6 in. | 1,407 mm / 55.4 in. | 1,407 mm / 55.4 in. | 1,407 mm / 55.4 in. | 1,410 mm / 55.5 in. | 1,410 mm / 55.5 in. | 1,410 mm / 55.5 in. | 1,410 mm / 55.5 in. | 1,410 mm / 55.5 in. | 1,410 mm / 55.5 in. | 1410 mm / 55.5 in. ↑ | 1405 mm / 55.3 in. ↓ | 1405 mm / 55.3 in. |
|
Engine Detail
|
- | - | - | - | - | 76 degrees V-4 | - | - | - | - | - | - | - | |
|
Fuel Capacity
|
18.16 litres / 4.80 gallons | 18.16 litres / 4.80 gallons | 17.78 litres / 4.70 gallons ↓ | 17.78 litres / 4.70 gallons | 17.79 litres / 4.70 gallons | 17.79 litres / 4.70 gallons | 17.79 litres / 4.70 gallons | 17.79 litres / 4.70 gallons | 17.79 litres / 4.70 gallons | 17.79 litres / 4.70 gallons | 17.79 litres / 4.70 gallons | 17.79 litres / 4.70 US gallons | 16.30 litres / 4.31 US gallons ↓ | 16.30 litres / 4.31 US gallons |
|
Brakes - Rear
|
Single disc | Single disc. 1-piston calipers | Single disc | Single disc | Single disc | Single disc | Single disc. Single-piston caliper. | Single disc. Single-piston caliper. | Single disc. Single-piston caliper. | Single disc. Single-piston caliper. | Single disc. Single-piston caliper. | Single disc. Single-piston caliper. | Single disc. Single-piston caliper. | Single disc. Single-piston caliper. Optional ABS. |
|
Suspension - Front
|
43.0mm inverted HMAS cartridge fork with spring-preload, rebound- and compression-damping adjustability | 43.0mm inverted HMAS cartridge fork with spring-preload, rebound and compression-damping adjustability | 43mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability | 43mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability | 43mm inverted HMAS cartridge fork with spring preload, rebound- and compression-damping adjustability | 43mm inverted Big Piston fork with spring preload, rebound and compression damping adjustability | 43mm inverted Big Piston fork with spring preload, rebound and compression damping adjustability | 43mm inverted Big Piston fork with spring preload, rebound and compression damping adjustability | 43mm inverted Big Piston fork with spring preload, rebound and compression damping adjustability | 43mm inverted Big Piston fork with spring preload, rebound and compression damping adjustability | 43mm inverted Big Piston fork with spring preload, rebound and compression damping adjustability | 43mm inverted Big Piston fork with spring preload, rebound and compression damping adjustability | 43mm Big Piston Front Fork with preload, compression and rebound adjustment | 43mm inverted Big Piston Fork with spring preload, rebound- and compression-damping adjustability |
|
Suspension - Rear
|
HMAS Pro-Link single shock with spring-preload, rebound- and compression-damping adjustability. | HMAS Pro-Link single shock with spring-preload, rebound and compression-damping adjustability | Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability | Unit Pro-Link HMAS single shock with spring preload rebound and compression-damping adjustability | Unit Pro-Link HMAS single shock with spring preload rebound and compression-damping adjustability | Unit Pro-Link Balance Free Rear Shock with spring preload, rebound and compression-damping adjustability | Unit Pro-Link Balance Free Rear Shock with spring preload, rebound and compression-damping adjustability | Unit Pro-Link® Ohlins Shock with spring-preload, rebound and compression-damping adjustability | Unit Pro-Link® Ohlins Shock with spring-preload, rebound and compression-damping adjustability | Unit Pro-Link® Ohlins Shock with spring-preload, rebound and compression-damping adjustability | Unit Pro-Link® Ohlins Shock with spring-preload, rebound and compression-damping adjustability | Unit Pro-Link® Ohlins Shock with spring-preload, rebound and compression-damping adjustability | Single shock | Unit Pro-Link® HMAS™ single shock with spring preload, rebound- and compression-damping adjustability |
|
Fuel System
|
Injection | Injection. Dual Stage Fuel Injection (DSFI) | Injection. Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors | Injection. Dual Stage Fuel Injection (DSFI) | Injection. Dual Stage Fuel Injection (DSFI) | Injection. Dual Stage Fuel Injection (DSFI) | Injection. Programmed Dual Stage Fuel Injection (PGM-DSFI) with 46mm throttle bodies, Denso 12-hole injectors | Injection. Programmed Dual Stage Fuel Injection (PGM-DSFI) with 46mm throttle bodies, Denso 12-hole injectors | Injection. Programmed Dual Stage Fuel Injection (PGM-DSFI) with 46mm throttle bodies, Denso 12-hole injectors | Injection. Programmed Dual Stage Fuel Injection (PGM-DSFI) with 46mm throttle bodies, Denso 12-hole injectors | Injection. Programmed Dual Stage Fuel Injection (PGM-DSFI) with 46mm throttle bodies, Denso 12-hole injectors | Injection. Programmed Dual Stage Fuel Injection (PGM-DSFI) with 46mm throttle bodies, Denso 12-hole injectors | Injection. Programmed Dual Stage Fuel Injection (PGM-DSFI) with 48mm throttle bodies, Denso 12-hole injectors ↑ | Injection. Programmed Dual Stage Fuel Injection (PGM-DSFI) with 48mm throttle bodies, Denso 12-hole injectors |
|
Colours
|
Black, Metallic Silver/Black, Red/Black | Black/Metallic Silver, Red/Black, Titanium/Black, Blue/Orange/White/Red | Red/black, Black/metallic Silver, Pearl Yellow/black,
Candy dark red/metallic silver, Black/metallic gray | Red/Black, Pearl Orange/Light Silver Metallic | Red/Black, Black, Blue/White/Orange/Red | Red, Black, Pearl White/Blue/Red | Black, Pearl White | Black, Pearl White | Matte Black Metallic | Matte Black Metallic, Red/Black/White | Matte Black Metallic, Red/Black/White | Matte Black Metallic, Grand prix Red | Matte Black Metallic, Grand Prix Red | Grand Prix Red |
|
Clutch
|
- | - | - | - | Wet, multiplate | - | - | - | - | - | - | - | Wet multiplate | Wet multiplate |
|
Final Drive
|
Chain | Chain | Chain | Chain | Chain | Chain | Chain | Chain | Chain | Chain | Chain | Chain (final drive) | Chain (final drive) | Chain (final drive) |
|
Rims
|
- | - | - | - | - | - | Hollow-section 6-spoke cast aluminium | - | 12-spoke cast aluminium | 12-spoke cast aluminium | 12-spoke cast aluminium | 12-spoke cast aluminium | Cast aluminium | Cast aluminium |
|
Height
|
- | - | - | - | - | 1,150 mm / 45.3 in. | 1,175 mm / 46.3 in. ↑ | - | 1,135 mm / 44.7 in. | 1,135 mm / 44.7 in. | 1,135 mm / 44.7 in. | 1135 mm / 44.7 in. ↑ | 1095 mm / 43.1 in. ↓ | 1095 mm / 43.1 in. |
|
Length
|
- | - | - | - | - | 1,810 mm / 71.3 in. | 2,176 mm / 85.7 in. ↑ | - | 2,075 mm / 81.7 in. | 2,075 mm / 81.7 in. | 2,075 mm / 81.7 in. | 2075 mm / 81.7 in. ↑ | 2121 mm / 83.5 in. ↑ | 2121 mm / 83.5 in. |
|
Wet Weight
|
- | - | - | 199.1 kg / 439.0 lbs | 199.1 kg / 439.0 lbs | 200.0 kg / 441.0 lbs ↑ | 200.0 kg / 440.9 lbs | 200.0 kg / 440.9 lbs | 200.0 kg / 440.9 lbs | 200.0 kg / 440.9 lbs | 200.0 kg / 440.9 lbs | 200.0 kg / 440.9 lbs | 194.1 kg / 428.0 lbs ↓ | 196.0 kg / 432.0 lbs ↑ |
|
Warranty
|
- | - | - | - | One Year. Transferable, unlimited-mileage limited warranty | One year. Unlimited milage. Transferable. | One year. Unlimited milage. Transferable. | One year. Unlimited milage. Transferable. | One year. Unlimited milage. Transferable. | One year. Unlimited milage. Transferable. | One year. Unlimited milage. Transferable. | One year. Unlimited milage. Transferable. | 12 months unlimited mileage | 12 months unlimited mileage |
|
Compression Ratio
|
11.9:1 | 11.9:1 | 12.3:1 ↑ | 12.3:1 | 12.3:1 | 12.3:1 | 12.3:1 | 12.3:1 | 12.3:1 | 12.3:1 | 13.0:1 ↑ | 13.0:1 | 13.0:1 | 13.0:1 |
|
Emissions
|
- | - | - | - | Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards. | Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment. | Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment. | Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment. | Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment. | Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment. | Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment. | Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment. | - | |
|
Tyres - Front
|
120/70-ZR17 | 120/70-ZR17 | 120/70-ZR17 | 120/70-ZR17 | 120/70-ZR17 | 120/70-ZR17 | 120/70-ZR17 | 120/70-ZR17 | 120/70-ZR17 | 120/70-ZR17 | 120/70-ZR17 | 120/70-ZR17 | 120/70-17 | 120/70-ZR17 |
|
Width
|
- | - | - | - | 1,016 mm / 40.0 in. | 685 mm / 27.0 in. ↑ | - | - | 720 mm / 28.3 in. | 720 mm / 28.3 in. | 720 mm / 28.3 in. | 720 mm / 28.3 in. | 790 mm / 31.1 in. ↑ | 790 mm / 31.1 in. |
|
Tyres - Rear
|
190/50-ZR17 | 190/50-ZR17 | 190/50-ZR17 | 190/50-ZR17 | 190/50-ZR17 | 190/50-ZR17 | 190/50-ZR17 | 190/50-ZR17 | 190/50-ZR17 | 190/50-ZR17 | 190/50-ZR17 | - | - | |
|
Primary Drive
|
- | - | - | - | #530 O-ring-sealed chain | #530 O-ring-sealed chain | #530 O-ring-sealed chain | #530 O-ring-sealed chain | #530 O-ring-sealed chain | #530 O-ring-sealed chain | #530 O-ring-sealed chain | #530 O-ring-sealed chain | #530 0-ring-sealed chain | #530 Chain; 16T/43T |
|
Rake
|
23.8° | 23.8° | 23.3° ↓ | 23.3° | 23.3° | 23.3° | 23.0° ↓ | 23.0° | 23.0° | 23.0° | 23.0° | 23.0° | 23.3° ↑ | 23.3° |
|
Instrumentation
|

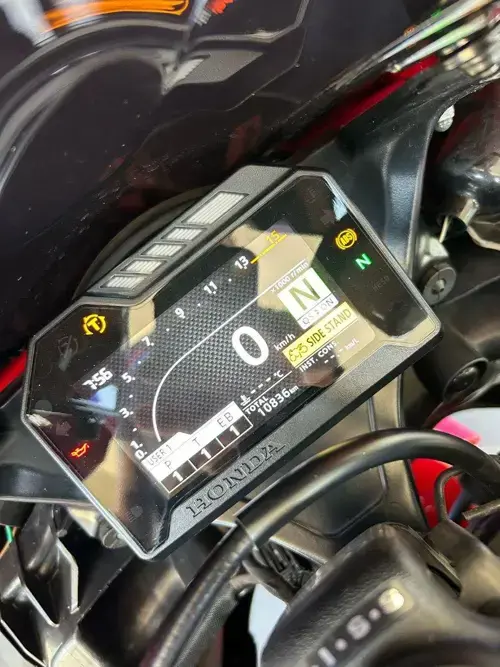

- | - | - | - | - | - | LCD Instrumentation. | LCD Instrumentation. | Full-screen LCD instrumentation includes a lap timer, trip and fuel-consumption computer, five-level customizable shift indicator, gear-position indicator, and peak-rpm memory function. | Full-screen LCD instrumentation includes a lap timer, trip and fuel-consumption computer, five-level customizable shift indicator, gear-position indicator, and peak-rpm memory function. | Full-screen LCD instrumentation includes a lap timer, trip and fuel-consumption computer, five-level customizable shift indicator, gear-position indicator, and peak-rpm memory function. | Full-screen LCD instrumentation includes a lap timer, trip and fuel-consumption computer, five-level customizable shift indicator, gear-position indicator, and peak-rpm memory function. | - | |
|
Seat
|
- | - | - | - | - | Dual | - | - | - | - | - | - | - | |
|
Fuel Consumption
|
- | - | - | 6.35 litres/100 km (15.7 km/l or 37.04 mpg) | 6.36 litres/100 km (15.7 km/l or 36.98 mpg) ↑ | - | 5.74 litres/100 km (17.4 km/l or 40.98 mpg) | 5.74 litres/100 km (17.4 km/l or 40.98 mpg) | 5.74 litres/100 km (17.4 km/l or 40.98 mpg) | 5.74 litres/100 km (17.4 km/l or 40.98 mpg) | 5.74 litres/100 km (17.4 km/l or 40.98 mpg) | 5.74 litres/100 km (17.4 km/l or 40.98 mpg) | 6.19 litres/100 km (16.2 km/l or 38.00 mpg) ↑ | 6.19 litres/100 km (16.2 km/l or 38.00 mpg) |
|
Fuel Reserve
|
4.01 litres / 1.06 gallons | - | - | - | - | - | 4.00 litres / 1.06 gallons | - | - | - | - | - | - | - |
|
Trail
|
102 mm / 4.0 in. | 102 mm / 4.0 in. | 96 mm / 3.8 in. ↓ | 96 mm / 3.8 in. | 96 mm / 3.8 in. | 96 mm / 3.8 in. | 96 mm / 3.8 in. | 96 mm / 3.8 in. | 96 mm / 3.8 in. | 96 mm / 3.8 in. | 96 mm / 3.8 in. | 96 mm / 3.8 in. | 97 mm / 3.8 in. ↑ | 97 mm / 3.8 in. |
|
Wheel Travel - Front
|
119 mm / 4.7 in. | 119 mm / 4.7 in. | 119 mm / 4.7 in. | 109 mm / 4.3 in. ↓ | 300 mm / 11.8 in. ↑ | - | 120 mm / 4.7 in. | - | 109 mm / 4.3 in. | 109 mm / 4.3 in. | 109 mm / 4.3 in. | 109 mm / 4.3 in. | 109 mm / 4.3 in. | 119 mm / 4.7 in. ↑ |
|
Wheel Travel - Rear
|
135 mm / 5.3 in. | 135 mm / 5.3 in. | 137 mm / 5.4 in. ↑ | 137 mm / 5.4 in. | 137 mm / 5.4 in. | - | 120 mm / 4.7 in. | - | 137 mm / 5.4 in. | 137 mm / 5.4 in. | 137 mm / 5.4 in. | 137 mm / 5.4 in. | 131 mm / 5.2 in. ↓ | 137 mm / 5.4 in. ↑ |
|
Ignition
|
- | Computer-controlled digital transistorized with three-dimensional mapping | Computer-controlled digital transistorized with three-dimensional mapping | Computer-controlled digital transistorized with three-dimensional mapping | Computer-controlled digital transistorized with three-dimensional mapping | Computer-controlled digital transistorized with 3-D mapping | Computer-controlled digital transistorized with 3-D mapping | Computer-controlled digital transistorized with 3-D mapping | Computer-controlled digital transistorized with 3-D mapping | Computer-controlled digital transistorized with 3-D mapping | Computer-controlled digital transistorized with 3-D mapping | Computer-controlled digital transistorized with 3-D mapping | Digital transistorized with electronic advance | |
|
Max Torque
|
- | - | - | - | - | 4.00 Nm (0.4 kgf-m or 3.0 ft.lbs) @ 5500 Revolutions | 96.00 Nm (9.8 kgf-m or 70.8 ft.lbs) @ 6500 Revolutions ↑ | - | 114.00 Nm (11.6 kgf-m or 84.1 ft.lbs) @ 10500 Revolutions | 114.00 Nm (11.6 kgf-m or 84.1 ft.lbs) @ 10500 Revolutions | 114.00 Nm (11.6 kgf-m or 84.1 ft.lbs) @ 10500 Revolutions | 114.0 Nm (11.6 kgf-m or 84.1 ft.lbs) @ 10500 Revolutions" | 104.0 Nm (10.6 kgf-m or 76.7 ft.lbs) @ 8250 Revolutions" ↓ | 104.0 Nm (10.6 kgf-m or 76.7 ft.lbs) @ 8250 Revolutions" |
|
Power-to-Weight Ratio
|
- | - | - | - | - | 0.0472 HP/kg | - | - | - | - | - | - | - | |
