Key Specifications
Engine
Two cylinder boxer, four-stroke
Torque
125.00 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 6500 Revolutions">RPM
Fuel Capacity
30.00 litres
Advertisement

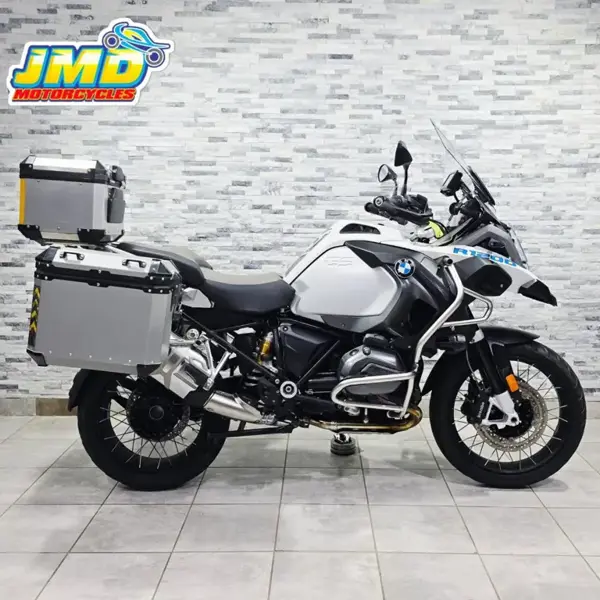

Full 2015 BMW R 1200GS Adventure Specifications
Comments
Windscreen.
Colours
White, blue, olive
Width (mm)
980 mm
Width (in.)
38.6 inches
Wheelbase (mm)
1,510 mm
Wheelbase (in.)
59.4 inches
Seat Height (mm)
890 mm
Seat Height (in.)
35.0 inches
Length (mm)
2,255 mm
Length (in.)
88.8 inches
Height (mm)
1,450 mm
Height (in.)
57.1 inches
Wet Weight (lbs.)
573.2 pounds
Wet Weight (kg)
260.0 kg
Fuel Capacity (l)
30.00 litres
Fuel Capacity (gal.)
7.93 gallons
Dry Weight (lbs.)
505.0 pounds
Dry Weight (kg)
229.1
Bore x Stroke (in,)
4.0 x 2.9 inches
Bore x Stroke (mm)
101.0 x 73.0 mm
CO2
99.8 CO2 g/km. (CO2 - Carbon dioxide emission)
Displacement (cc)
1170.00 cc
Displacement (ci)
71.39 cubic inches
Engine Type
Two cylinder boxer, four-stroke
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Fuel Reserve (gal.)
1.06 gallons
Fuel Reserve (l)
4.00 litres
Fuel System
Injection. Electronic intake pipe injection
Compression Ratio
12.5:1
Emissions
Closed-loop 3-way catalytic converter, emission standard EU-3
Fuel Consumption
4.30 litres/100 km (23.3 km/l or 54.70 mpg)
Starter
Electric
Valve System
4
Clutch
Oil lubricated clutch, hydraulically operated
Final Drive
Shaft drive (cardan)
Gearbox
6-speed
Primary Drive
Constant mesh
Trail (in.)
3.6 inches
Trail (mm)
93 mm
Wheel Travel - Front (in.)
8.3 inches
Wheel Travel - Front (mm)
210 mm
Wheel Travel - Rear (in.)
8.7 inches
Wheel Travel - Rear (mm)
220 mm
Frame Type
Two-section frame consisting of front and rear sections, load- bearing engine-gearbox unit
Suspension - Front
BMW Motorrad Telelever; stanchion diameter 37 mm, central spring strut
Suspension - Rear
Cast aluminium single-sided swing arm with BMW Motorrad Paralever; WAD strut (travel-related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable at handwheel
Rake
24.5°
Brakes - Front Diameter (in.)
12.0 inches
Brakes - Front Diameter (mm)
305 mm
Brakes - Rear Diameter (in.)
10.8 inches
Brakes - Rear Diameter (mm)
275 mm
Brakes - Front
Double disc. ABS. Floating discs. Four-piston calipers.
Brakes - Rear
Single disc. ABS. Floating disc. Two-piston calipers.
Rims
Cross-spoke wheels
Tyres - Front
120/70-R19
Tyres - Rear
170/60-R17
