Key Specifications
Torque
125.00 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 6500 Revolutions">RPM
Fuel Capacity
30.00 litres
Advertisement

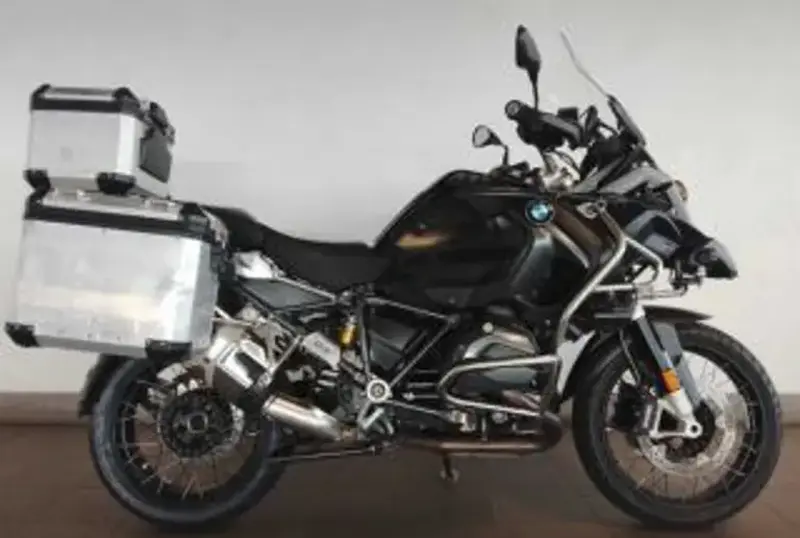

Full 2017 BMW R 1200GS Adventure Specifications
Comments
Windscreen. Switchable ABS.
Colours
Light White, Racing Red Matt
Width (mm)
980 mm
Width (in.)
38.6 inches
Wheelbase (mm)
1,510 mm
Wheelbase (in.)
59.4 inches
Seat Height (mm)
890 mm
Seat Height (in.)
35.0 inches
Length (mm)
2,255 mm
Length (in.)
88.8 inches
Height (mm)
1,450 mm
Height (in.)
57.1 inches
Wet Weight (lbs.)
579.8 pounds
Wet Weight (kg)
263.0 kg
Fuel Capacity (l)
30.00 litres
Fuel Capacity (gal.)
7.93 gallons
Dry Weight (lbs.)
505.0 pounds
Dry Weight (kg)
229.1
Fuel Reserve (l)
4.00 litres
Fuel Reserve (gal.)
1.06 gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
Twin, four-stroke
Bore x Stroke (mm)
101.0 x 73.0 mm
Bore x Stroke (in,)
4.0 x 2.9 inches
Fuel System
Injection. Electronic intake pipe injection
Compression Ratio
12.5:1
Emissions
EU-4
Starter
Electric
Valve System
4
Clutch
Wet eight-disc clutch with anti-hopping function, hydraulically operated
Final Drive
Shaft drive (cardan)
Gearbox
6-speed
Trail (in.)
3.6 inches
Trail (mm)
93 mm
Wheel Travel - Front (in.)
8.3 inches
Wheel Travel - Front (mm)
210 mm
Wheel Travel - Rear (in.)
8.7 inches
Wheel Travel - Rear (mm)
220 mm
Frame Type
Two-section frame, front- and bolted on rear frame, load-bearing engine
Suspension - Front
BMW Motorrad Telelever, front, stanchion diameter 37 mm
Suspension - Rear
BMW Motrrad EVO Paralever, rear
Rake
24.5°
Brakes - Rear Diameter (in.)
10.9 inches
Brakes - Rear Diameter (mm)
276 mm
Brakes - Front Diameter (mm)
305 mm
Brakes - Front Diameter (in.)
12.0 inches
Brakes - Front
Double disc. ABS. Four-piston calipers.
Brakes - Rear
Single disc. ABS
Rims
Cross Spoke Wheels
Tyres - Front
120/70-R19
Tyres - Rear
170/60-R17
