Key Specifications
Power
62.5 kW / 85 hp @ 7500 rpm
Torque
80 Nm / 8.2 kgf-m / 59 lb-ft @ 5750 rpm
Top Speed
199.0 km/h / 124 mph
Fuel Capacity
16.00 litres

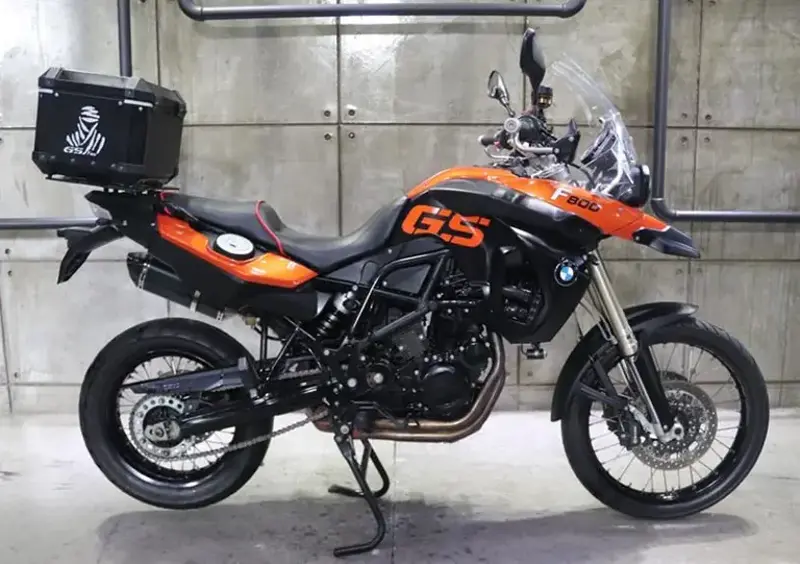

Full 2010 BMW F 800GS Specifications
Year
2010
Colours
White, orange/black
Make Model
BMW F 800GS
Width (mm)
945 mm
Width (in.)
37.2 inches
Wheelbase (mm)
1,578 mm
Wheelbase (in.)
62.1 inches
Seat Height (mm)
880 mm
Seat Height (in.)
34.6 inches
Length (mm)
2,320 mm
Length (in.)
91.3 inches
Height (mm)
1,350 mm
Height (in.)
53.1 inches
Seat Height
880 mm - 850 mm / 34.6 in. - 33.5 in.
Wheelbase
1577 mm / 62.1 in
Height
1350 mm / 53.1 in (excl. mirrors)
Length
2320 mm / 91.3 in
Width
945 mm / 37.2 in (incl. mirrors)
Wet Weight (lbs.)
456.4 pounds
Wet Weight (kg)
207.0 kg
Fuel Capacity (l)
16.00 litres
Fuel Capacity (gal.)
4.23 gallons
Dry Weight (lbs.)
407.9 pounds
Dry Weight (kg)
185
Dry Weight
177.8 kg / 392 lbs
Fuel Capacity
16 Litres / 4.2 US gal.
Wet Weight
207 kg / 456 lbs
Fuel Reserve (l)
4.00 litres
Fuel Reserve (gal.)
1.06 gallons
Fuel Control
DOHC
Engine Type
Twin, four-stroke
Displacement (ci)
48.69 cubic inches
Displacement (cc)
798.00 cc
Bore x Stroke (in,)
3.2 x 3.0 inches
Bore x Stroke (mm)
82.0 x 75.6 mm
CO2
88.2 CO
Displacement
798 cc / 47.7 cub. in.
Engine Detail
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Fuel System
Injection. Electronic intake pipe injection / digital engine management (BMS-K)
Bore x Stroke
82 x 75.8 mm
Compression Ratio
12.0:1
Cooling System
Liquid cooled
Exhaust
Closed-loop 3-way catalytic converter, emission standard EU-3
Fuel Consumption
5.1 l/100km 19.6 km/l / 45.9 US mpg
Fuel Induction
Electronic intake injection, ∅45mm throttle bodies
Fuel Range
312 km / 194 miles
Ignition
Knock control and oxygen sensors.
Starter
Electric
Valve System
4
Clutch
Multiplate-plate in oil bath
Final Drive
Chain
Final Drive Ratio
1:2.6
Gear Ratios
1st 2.46 / 2nd 1.75 / 3rd 1.38 / 4th 1.17 / 5th 1.04 / 6th 0.96
Gearbox
6-speed
Transmission / Drive
6 Speed
Trail (in.)
4.6 inches
Trail (mm)
117 mm
Wheel Travel - Front (in.)
9.1 inches
Wheel Travel - Front (in.)
9.1 inches
Wheel Travel - Front (mm)
230 mm
Wheel Travel - Front (mm)
230 mm
Wheel Travel - Rear (in.)
8.5 inches
Wheel Travel - Rear (mm)
215 mm
Frame Type
Tubular frame in steal partly carrying the engine
Suspension - Front
∅43mm Marzocchi. Upside down forks
Suspension - Rear
Double strut swing arm aluminium coast in one piece,
Rake
26°
Trail
117 mm / 9.1 in.
Wheel Travel - Front
230 mm / 9.1 in.
Wheel Travel - Rear
215 mm / 8.5 in.
Brakes - Front Diameter (mm)
300 mm
Brakes - Rear Diameter (in.)
10.4 inches
Brakes - Rear Diameter (mm)
265 mm
Brakes - Front Diameter (in.)
11.8 inches
Brakes - Front
2 x ∅300mm discs, 4 piston calipers
Brakes - Rear
Single ∅265mm disc, 2 piston caliper
Tyres - Front
90/90 - 21 54V
Tyres - Rear
150/70 - 17 69V
Wheels
Wire spoke
Wheels - Front
2.15 x 21"
Wheels - Rear
4.25 x 17"
