Key Specifications
Engine
In-line four, four-stroke
Torque
65.70 Nm (6.7 kgf-m or 48.5 ft.lbs) @ 10500
Weight
189.2 kg / 417.0 lbs
Fuel Capacity
17.03 litres / 4.50 gallons
Advertisement

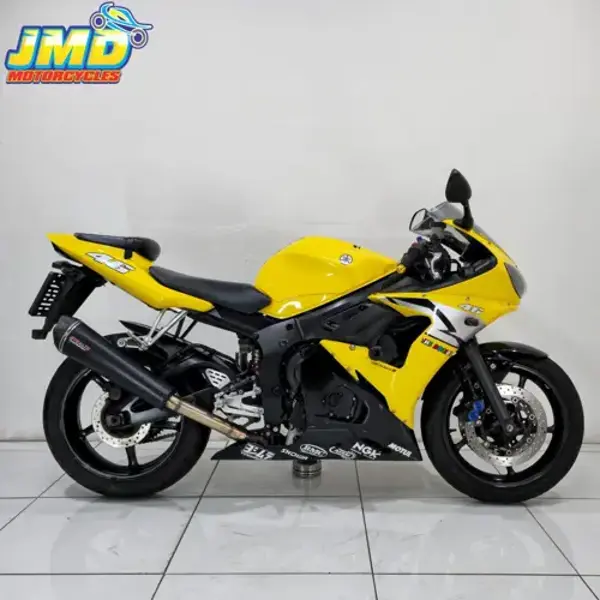

Full 2011 Yamaha YZF-R6 Specifications
Colours
Candy Red/Raven, Raven, Team Yamaha Blue/White
Warranty
1 Year (Limited Factory Warranty)
Ground Clearance (mm)
130 mm
Ground Clearance (in.)
5.1 inches
Seat Height
851 mm / 33.5 in.
Wheelbase
1,374 mm / 54.1 in.
Height
1,095 mm / 43.1 in.
Length
2,040 mm / 80.3 in.
Width
706 mm / 27.8 in.
Oil Capacity (Quarts)
0.22 quarts
Oil Capacity (l)
3.40 litres
Fuel Capacity
17.03 litres / 4.50 gallons
Wet Weight
189.2 kg / 417.0 lbs
Bore x Stroke (in,)
2.6 x 1.7 inches
Bore x Stroke (mm)
67.0 x 42.5 mm
CO2
136.4 CO
Displacement (cc)
599.00 cc
Displacement (ci)
36.55 cubic inches
Engine Type
In-line four, four-stroke
Fuel Control
DOHC
Fuel System
Injection. Fuel Injection with YCC-T and YCC-I
Compression Ratio
13.1:1
Engine Lubrication
Wet sump
Fuel Consumption
5.88 litres/100 km (17.0 km/l or 40.00 mpg)
Ignition
TCI: Transistor Controlled Ignition
Starter
Electric
Clutch
Multiplate slipper clutch
Final Drive
Chain
Gearbox
6-speed
Primary Drive
O-ring chain
Frame Type
Deltabox aluminum
Suspension - Front
41mm inverted fork
Suspension - Rear
Single shock
Rake
24.0°
Trail
97 mm / 3.8 in.
Wheel Travel - Front
102 mm / 4.0 in.
Wheel Travel - Rear
102 mm / 4.0 in.
Lighting system
Dual 30W Krypton multireflector Headlights and 3.9/0.5W LED Brake light
Brakes - Front Diameter (in.)
12.2 inches
Brakes - Front Diameter (mm)
310 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Rear Diameter (mm)
220 mm
Brakes - Front
Double disc
Brakes - Rear
Single disc
Tyres - Front
120/70-ZR17
Tyres - Rear
180/55-ZR17
