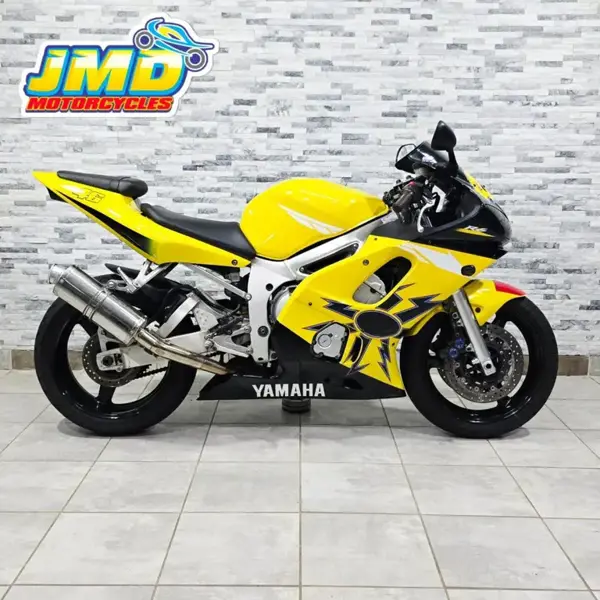

2002 Yamaha YZF-R6 Specifications

Name: 2002 Yamaha YZF-R6
Brand: Yamaha

Sport • Specs last verified 13 July 2026

No images available

Tap to enlarge

2002 Yamaha YZF-R6 Overview

Yamaha YZF-R6 is a sport motorcycle, displacing 600 cc. Power comes from an In-line four engine, a compression ratio of 12.4:1. Bore and stroke come in at 65.5 x 44.5 mm. On the performance side, it delivers 68.10 of torque. On the road, the 2002 YZF-R6 tips the scales at 168 kg, offers a seat height of 820 mm and spans a 1,380 mm wheelbase. The full 2002 Yamaha YZF-R6 spec sheet below covers every technical detail, from suspension travel to tyre sizes.

2002 Yamaha YZF-R6 compared with other bikes in the Sport category

We checked the recorded figures for the 2002 Yamaha YZF-R6 against up to 2003 bikes in the Sport category in our database, counting each model once at the model year nearest to this one.

Only 410 of the other 1606 bikes in the Sport category have a taller seat height than the 820 mm of the YZF-R6.
With 600 cc, the YZF-R6 has the joint 754th smallest engine displacement of 2003 bikes in the Sport category, 15% below the category average of 706 cc.
Narrowing the field to the 380 models within five model years of it, the seat height of 820 mm is taller than that of 276 of the other 379.

Versus the 2001 model

Compared with the 2001 model, displacement increased from 598 cc to 600 cc (+2 cc). Seat height is unchanged.

2002 YZF-R6 - Pros & Cons

Strengths

Strong front braking: Stopping power up front is strong thanks to the dual disc setup, with plenty of room to upgrade further with braided lines.

Considerations

Tall seat height: At 820 mm, shorter riders will likely be on tiptoes at a standstill - worth sitting on one before you buy.

Wear Points & Servicing Notes

Brake disc and pad wear

Braking up front comes from dual disc - solid stopping power, with disc and pad wear best checked on the same schedule as tyre changes.

YZF-R6 - Buying & Maintenance Guide

What to check before buying

Before handing over money for a used 2002 Yamaha YZF-R6 with its 600 cc sport, cover the fundamentals: service book and oil change history, drivetrain wear, and any sign of oil weeping around the casings. Now 24 years old, this sport is as likely to show age-related wear (perished rubber, seized fasteners, degraded seals) as mileage-related wear. Cold-starting it yourself tells you a lot - a healthy YZF-R6 should catch quickly and settle into a smooth idle.

Oil and filter changes

Nothing protects the YZF-R6's 600 cc in-line four like disciplined oil changes - stay on the manufacturer's schedule (roughly every 6,000 km or annually). With a 12.4:1 compression ratio, running the octane grade specified in the manual matters more than on a lower-compression engine. Match the viscosity grade to what the owner's manual specifies, not what's cheapest.

2002 Yamaha YZF-R6 - Frequently Asked Questions

What engine does the 2002 Yamaha YZF-R6 have?

The 2002 Yamaha YZF-R6 uses an In-line four engine with 600 cc of displacement.

How much does the 2002 Yamaha YZF-R6 weigh?

The 2002 Yamaha YZF-R6 weighs 168 kg. This is the manufacturer's dry figure.

How much torque does the 2002 Yamaha YZF-R6 produce?

The 2002 Yamaha YZF-R6 produces 68.10 of torque.

Is the 2002 Yamaha YZF-R6 suitable for shorter riders?

The 2002 Yamaha YZF-R6 has a seat height of 820 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.

What brakes does the 2002 Yamaha YZF-R6 have?

The 2002 Yamaha YZF-R6 uses dual disc at the front and single disc at the rear.

What tyre sizes does the 2002 Yamaha YZF-R6 use?

The 2002 Yamaha YZF-R6 runs 120/60-ZR17 55W front and 180/55-ZR17 73W rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

What is the compression ratio of the 2002 Yamaha YZF-R6?

The 2002 Yamaha YZF-R6 runs a compression ratio of 12.4:1. Always use the minimum octane rating specified in the owner's manual.

Yamaha YZF-R6 Spec Evolution

The Yamaha YZF-R6 was produced across 23 model years (1999-2022). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	1999	2000	2001	2002	2003	2004	2005	2006	2007	2008	2009	2010	2011	2012	2013	2014	2015	2016	2017	2018	2019	2020	2022
Wet Weight	195.0 kg / 429.9 lbs	-	-	-	-	-	-	-	-	-	187.8 kg / 414.0 lbs	189.1 kg / 417.0 lbs	189.2 kg / 417.0 lbs	189.2 kg / 417.0 lbs	189.2 kg / 417.0 lbs	189.2 kg / 417.0 lbs	189.2 kg / 417.0 lbs	189.2 kg / 417.0 lbs	189.2 kg / 417.0 lbs	190.1 kg / 419.0 lbs	190.1 kg / 419.0 lbs	190.0 kg / 418.9 lbs	190.0 kg / 418.9 lbs
Dry Weight	-	169 kg / 372.6 lbs	167.5 kg / 369.3 lbs	168 kg / 370.4 lbs	162 kg / 357.1 lbs	162 kg / 357.1 lbs	161.9 kg / 357.0 lbs	161 kg / 354.9 lbs	161.9 kg / 357.0 lbs	166 kg / 366.0 lbs	-	-	-	-	210.5 kg / 464.1 lbs	59 kg / 130.1 lbs	-	-	-	-	-	-	-
Engine Detail	-	-	-	-	-	-	-	-	-	-	-	-	-	Titanium intake valves	Titanium valves	Titanium valves	Titanium valves	Titanium valves	Titanium valves	Titanium valves	Titanium valves	Titanium valves	Titanium valves
Engine Type	In-line four	In-line four	In-line four	In-line four	In-line four	In-line four	In-line four	In-line four	In-line four	In-line four	In-line four	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke
Top Speed	250.0 km/h / 155.3 mph	260.0 km/h / 161.6 mph	250.0 km/h / 155.3 mph	-	-	-	-	-	-	-	-	-	-	-	-	120.0 km/h / 74.6 mph	-	-	-	-	-	-	-
Seat Height	820 mm / 32.3 in.	820 mm / 32.3 in.	820 mm / 32.3 in.	820 mm / 32.3 in.	820 mm / 32.3 in.	820 mm / 32.3 in.	820 mm / 32.3 in.	850 mm / 33.5 in.	851 mm / 33.5 in.	851 mm / 33.5 in.	851 mm / 33.5 in.	851 mm / 33.5 in.	851 mm / 33.5 in.	851 mm / 33.5 in.	851 mm / 33.5 in.	851 mm / 33.5 in.	851 mm / 33.5 in.	851 mm / 33.5 in.	851 mm / 33.5 in.	851 mm / 33.5 in.	851 mm / 33.5 in.	850 mm / 33.5 in.	850 mm / 33.5 in.
Fuel Capacity	17.00 litres / 4.49 gallons	17.00 litres / 4.49 gallons	17.00 litres / 4.49 gallons	-	17.00 litres / 4.49 gallons	-	4.50 litres / 1.19 gallons	17.50 litres / 4.62 gallons	17.41 litres / 4.60 gallons	17.41 litres / 4.60 gallons	17.41 litres / 4.60 gallons	17.03 litres / 4.50 gallons	17.03 litres / 4.50 gallons	17.03 litres / 4.50 gallons	17.03 litres / 4.50 gallons	17.03 litres / 4.50 gallons	17.03 litres / 4.50 gallons	17.03 litres / 4.50 gallons	17.03 litres / 4.50 gallons	17.03 litres / 4.50 gallons	17.41 litres / 4.60 US gallons	17.00 litres / 4.49 US gallons	17.00 litres / 4.49 US gallons
Bore x Stroke (in,)	2.6 x 1.8 inches	-	2.6 x 1.7 inches	2.6 x 1.8 inches	-	2.6 x 1.8 inches	2.6 x 1.8 inches	2.6 x 1.7 inches	2.6 x 1.7 inches	2.6 x 1.7 inches	2.6 x 1.7 inches	2.6 x 1.7 inches	2.6 x 1.7 inches	2.6 x 1.7 inches	2.6 x 1.7 inches	2.6 x 1.7 inches	2.6 x 1.7 inches	2.6 x 1.7 inches	2.6 x 1.7 inches	2.6 x 1.7 inches	2.6 x 1.7 inches	2.6 x 1.7 inches	2.6 x 1.7 inches

Key Specifications

Engine

In-line four

Power

Not recorded

Torque

68.10

Top Speed

Not recorded

Weight

168 kg / 370.4 lbs

Fuel Capacity

Not recorded

Full 2002 Yamaha YZF-R6 Specifications

Ground Clearance (in.) 5.3 inches

Ground Clearance (mm) 135 mm

Seat Height 820 mm / 32.3 in.

Wheelbase 1,380 mm / 54.3 in.

Height 1,105 mm / 43.5 in.

Length 2,025 mm / 79.7 in.

Width 690 mm / 27.2 in.

Dry Weight 168 kg / 370.4 lbs

Max Torque 68.10

Power-to-Weight Ratio 0.7143 HP/kg

Bore x Stroke (in,) 2.6 x 1.8 inches

Bore x Stroke (mm) 65.5 x 44.5 mm

Stroke 4

Displacement (cc) 600.00 cc

Displacement (ci) 36.61 cubic inches

Engine Type In-line four

Compression Ratio 12.4:1

Starter Electric

Valve System 4

Wheel Travel - Front 130 mm / 5.1 in.

Wheel Travel - Rear 120 mm / 4.7 in.

Brakes - Front Diameter (in.) 11.6 inches

Brakes - Front Diameter (mm) 295 mm

Brakes - Rear Diameter (in.) 8.7 inches

Brakes - Rear Diameter (mm) 220 mm

Brakes - Front Dual disc

Brakes - Rear Single disc

Tyres - Front 120/60-ZR17 55W

Tyres - Rear 180/55-ZR17 73W

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
