Key Specifications
Engine
In-line four, four-stroke
Torque
67.50 Nm (6.9 kgf-m or 49.8 ft.lbs) @ 10500 Revolutions
Weight
190.1 kg / 419.0 lbs
Fuel Capacity
17.03 litres / 4.50 gallons
Advertisement

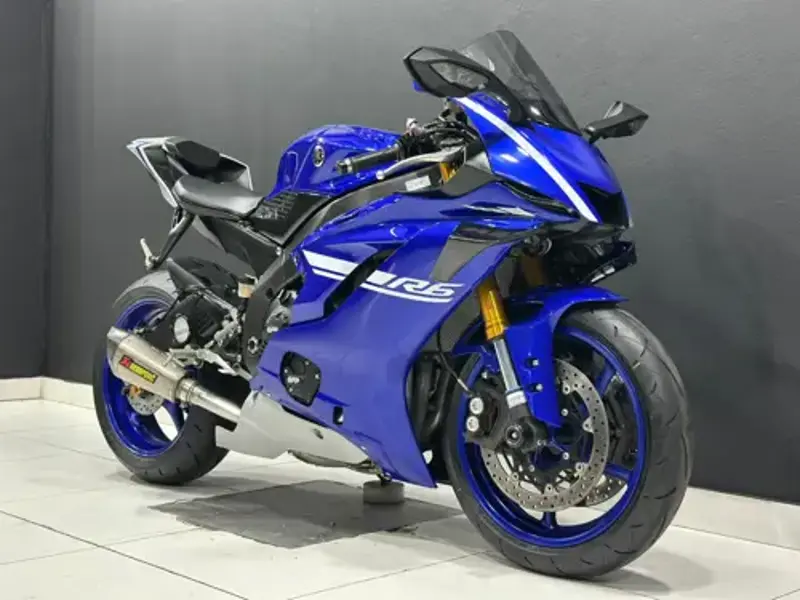

Full 2018 Yamaha YZF-R6 Specifications
Comments
Traction control
Colours
Matte Gray, Team Yamaha Blue, Intensity White/Matte Silver
Warranty
1 Year Limited Factory Warranty
Seat Height
851 mm / 33.5 in.
Wheelbase
1,374 mm / 54.1 in.
Height
1,095 mm / 43.1 in.
Length
2,040 mm / 80.3 in.
Width
706 mm / 27.8 in.
Oil Capacity (Quarts)
0.17 quarts
Oil Capacity (l)
2.60 litres
Fuel Capacity
17.03 litres / 4.50 gallons
Wet Weight
190.1 kg / 419.0 lbs
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
In-line four, four-stroke
CO2
153.1 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
67.0 x 42.5 mm
Bore x Stroke (in,)
2.6 x 1.7 inches
Engine Detail
Titanium valves
Fuel System
Injection. Fuel Injection with YCC-T and YCC-I
Compression Ratio
13.1:1
Fuel Consumption
6.60 litres/100 km (15.2 km/l or 35.64 mpg)
Ignition
TCI: Transistor Controlled Ignition
Starter
Electric
Valve System
4
Final Drive
Chain
Gearbox
6-speed
Primary Drive
O-ring chain
Frame Type
Deltabox aluminum frame. Magnesium subframe.
Suspension - Front
43mm KYB® inverted fork, 3-way adjustable
Suspension - Rear
KYB® piggyback shock, 4-way adjustable
Rake
24.0°
Trail
97 mm / 3.8 in.
Wheel Travel - Front
119 mm / 4.7 in.
Wheel Travel - Rear
119 mm / 4.7 in.
Instrumentation
Multifunction digital and analog instrumentation features: programmable shift light, digital speedometer, analog tachometer, dual tripmeters with miles-on-reserve function, odometer, water temp gauge and lights for neutral, high beam, low fuel and turn si
Lighting system
Dual LED position lights
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front Diameter (mm)
320 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Rear Diameter (mm)
220 mm
Brakes - Front
Double disc. ABS. Floating discs. Four-piston calipers. Radially mounted.
Brakes - Rear
Single disc. ABS. Single-piston caliper.
Tyres - Front
120/70-ZR17
Tyres - Rear
180/55-ZR17
