Key Specifications
Weight
161 kg / 354.9 lbs
Fuel Capacity
17.50 litres / 4.62 gallons
Advertisement

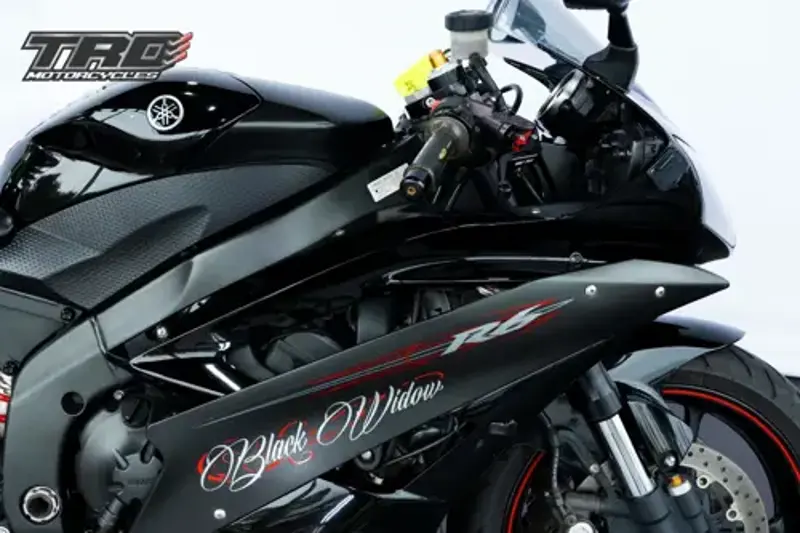

Full 2006 Yamaha YZF-R6 Specifications
Ground Clearance (in.)
5.1 inches
Ground Clearance (mm)
130 mm
Seat Height
850 mm / 33.5 in.
Wheelbase
1,380 mm / 54.3 in.
Height
1,100 mm / 43.3 in.
Length
2,040 mm / 80.3 in.
Width
700 mm / 27.6 in.
Dry Weight
161 kg / 354.9 lbs
Fuel Capacity
17.50 litres / 4.62 gallons
Bore x Stroke (in,)
2.6 x 1.7 inches
Bore x Stroke (mm)
67.0 x 42.5 mm
Displacement (cc)
599.00 cc
Displacement (ci)
36.55 cubic inches
Engine Type
In-line four
Fuel Control
DOHC
Stroke
4
Fuel System
Injection
Compression Ratio
12.8:1
Engine Lubrication
Wet sump
Ignition
TCI
Starter
Electric
Valve System
4
Clutch
Wet multiple-disc coil spring
Final Drive
Chain
Gearbox
5-speed
Suspension - Front
Telescopic fork
Suspension - Rear
Swingarm (link suspension)
Wheel Travel - Front
43 mm / 1.7 in.
Brakes - Front Diameter (in.)
12.2 inches
Brakes - Front Diameter (mm)
310 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Rear Diameter (mm)
220 mm
Brakes - Front
Double disc
Brakes - Rear
Single disc
Tyres - Front
120/70-ZR17
Tyres - Rear
180/55-ZR17
