2016 KTM 690 Enduro R Specifications

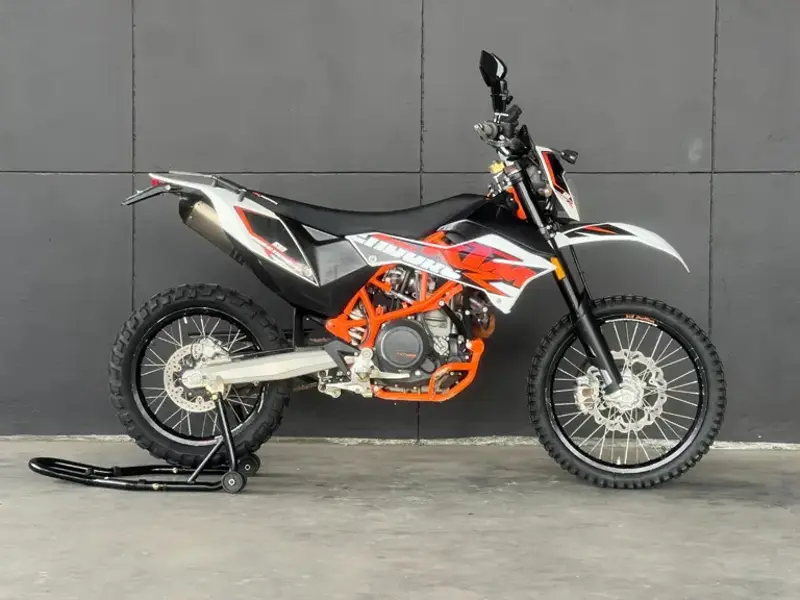

Name: 2016 KTM 690 Enduro R
Brand: KTM

Enduro / Off-Road • Specs last verified 13 July 2026

No images available

Tap to enlarge

2016 KTM 690 Enduro R Overview

The 2016 KTM 690 Enduro R is an enduro / off-road motorcycle built around 690 cc of displacement. Under the tank sits a Single cylinder, 4-stroke, SOHC, 4-valve engine, a compression ratio of 12.6:1. 2016 KTM 690 Enduro R delivers 49 kW @ 7500 rpm of peak power and 68 Nm @ 6000 rpm of torque. From a practical standpoint, the 2016 690 Enduro R tips the scales at 140 kg, carries a 12-litre fuel tank, offers a seat height of 910 mm and spans a 1504 mm ±15 mm wheelbase. That's roughly 58 kg lighter than the average enduro / off-road motorcycle in our database. Scroll down for the complete 2016 KTM 690 Enduro R spec sheet covering every technical detail from suspension travel to tyre sizes.

2016 690 Enduro R - Pros & Cons

Strengths

Strong power output: 2016 KTM 690 Enduro R makes 49 kW @ 7500 rpm with 68 Nm @ 6000 rpm of torque - competitive figures for its class.

Considerations

Tall seat height: The 910 mm seat height will challenge shorter riders - tiptoeing at low speeds is something to factor into your decision.
Modest fuel capacity: The 12-litre tank means more frequent fuel stops on longer rides, which is worth planning around on touring routes.
Chain final drive upkeep: Chain final drive needs regular cleaning, lubrication and tension checks to get full life out of the sprockets.

Wear Points & Servicing Notes

Cooling system servicing

The Liquid cooled system on the 690 Enduro R needs a coolant change roughly every two years (or per the service schedule) - skipping it lets the coolant turn acidic and corrode the aluminium water passages over time.

Brake disc and pad wear

The Single 300 mm disc, Brembo 2 piston floating caliper front brake gives strong, progressive stopping power. Disc thickness and pad depth are worth checking at every tyre change, since worn pads can score the disc surface.

Suspension condition on used examples

Up front, the 690 Enduro R runs WP-USD, ø 48 mm and WP-Monoshock with Pro-Lever Linkage at the rear. On a used example, check fork seals for weeping oil and test the rear linkage for play - seals are a relatively cheap fix but useful when negotiating price.

Final drive maintenance

Final drive is by chain - expect to clean and lube it every few hundred kilometres and check tension regularly; a neglected chain wears the sprockets faster than the chain itself.

Frame & chassis check

The frame is Chrome-moly steel trellis frame, powder coated, subframe: self supporting plastic tank - worth a visual check for corrosion or impact damage around the head-stock and swingarm pivot on any used example, since frame damage is far costlier to fix than any service item.

Low-speed handling

At just 140 kg, the 690 Enduro R is light enough to manhandle easily at a standstill - one of the practical advantages of its class.

690 Enduro R - Buying & Maintenance Guide

What to check before buying

When inspecting a used 2016 KTM 690 Enduro R, start with the basics: check the service book for oil change frequency, inspect the chain and sprockets for wear, and look for oil seepage around the engine casings and rocker covers. A cold start test is invaluable - a well-maintained 690 Enduro R should fire up cleanly and settle to a smooth idle within a few seconds.

Oil and filter changes

Regular oil changes are the single most important maintenance task on any 690 Enduro R. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. Always use the correct viscosity grade as specified in the owner's manual.

Carburetor upkeep

Keep the carburetors clean and free of deposits. If the 690 Enduro R has been stored, strip and clean the carb float bowls before attempting to start it. Pilot jets are the first to block and the last to be checked - always include them in any carb rebuild.

2016 KTM 690 Enduro R - Frequently Asked Questions

What engine does the 2016 KTM 690 Enduro R have?

The 2016 KTM 690 Enduro R uses a Single cylinder, 4-stroke, SOHC, 4-valve engine with 690 cc of displacement. It is liquid cooled.

How much does the 2016 KTM 690 Enduro R weigh?

The 2016 KTM 690 Enduro R weighs 140 kg. This is the manufacturer's dry figure.

How much power does the 2016 KTM 690 Enduro R make?

The 2016 KTM 690 Enduro R produces 49 kW @ 7500 rpm of power and 68 Nm @ 6000 rpm of torque. These are peak figures.

What is the fuel tank capacity of the 2016 KTM 690 Enduro R?

The 2016 KTM 690 Enduro R has a 12-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 200-240 km between stops.

Is the 2016 KTM 690 Enduro R suitable for shorter riders?

The 2016 KTM 690 Enduro R has a seat height of 910 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.

What brakes does the 2016 KTM 690 Enduro R have?

The 2016 KTM 690 Enduro R uses Single 300 mm disc, Brembo 2 piston floating caliper at the front and Single 240 mm disc, Brembo single piston floating caliper at the rear.

What tyre sizes does the 2016 KTM 690 Enduro R use?

The 2016 KTM 690 Enduro R runs 90/90 -21 front and 140/80 -18 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

What gearbox does the 2016 KTM 690 Enduro R have?

The 2016 KTM 690 Enduro R is fitted with a 6-Speed transmission.

KTM 690 Enduro R Spec Evolution

The KTM 690 Enduro R was produced across 8 model years (2010-2026). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2010	2012	2013	2014	2016	2019	2020	2026
Max Power	63 hp / 46.kW @ 7500 rpm	63 hp / 46.kW @ 7500 rpm	63 hp / 46.kW @ 7500 rpm	63 hp / 46.kW @ 7500 rpm	49 kW / 67 hp @ 7500 rpm	72 hp / 54 kW @	72 hp / 54 kW @	79 hp / 58.1 kW
Wet Weight	150 kg / 330 lbs	150 kg / 330 lbs	150 kg / 330 lbs	150 kg / 330 lbs	-	-	-	162 kg / 357 lbs
Dry Weight	139 kg / 306 lbs	139 kg / 306 lbs	139 kg / 306 lbs	139 kg / 306 lbs	140 kg / 309 lbs	146 kg / 321.8 lbs	146 kg / 321.8 lbs	-
Engine Detail	Four stroke, single cylinder, SOHC, 4 valves per cylinder	Four stroke, single cylinder, SOHC, 4 valve	Four stroke, single cylinder, SOHC, 4 valve	Four stroke, single cylinder, SOHC, 4 valve	Single cylinder, 4-stroke, SOHC, 4-valve	Single cylinder, 4-stroke, SOHC, 4-valve	Single cylinder, 4-stroke, SOHC, 4-valve	Single cylinder, 4-stroke, SOHC, 4-valve
Seat Height	910 mm / 35.8 in	910 mm / 35.8 in	910 mm / 35.8 in	910 mm / 35.8 in	910 mm / 35.8 in	910 mm / 35.8 in	910 mm / 35.8 in	935 mm / 36.8 in
Fuel Capacity	12 Litres / 3.17 US gal	12 Litres / 3.17 US gal	12 Litres / 3.17 US gal	12 Litres / 3.17 US gal	12 Litres / 3.2 US gal	13.5 Litres / 3.5 US gal	13.5 Litres / 3.5 US gal	13.3 Litres / 3.5 US gal
Frame Type	Tubular space frame made from chrome molybdenum steel, powder-coated	Tubular space frame made from chrome molybdenum steel, powder-coated	Tubular space frame made from chrome molybdenum steel, powder-coated	Tubular space frame made from chrome molybdenum steel, powder-coated	Chrome-moly steel trellis frame, powder coated, subframe: self supporting plastic tank	Chromium-molybdenum-steel trellis frame, powder coated	Chromium-molybdenum-steel trellis frame, powder coated	Chromium-molybdenum-steel trellis frame, powder coated
Displacement	690 cc / 42.1 cu in	690 cc / 42.1 cu in	690 cc / 42.1 cu in	690 cc / 42.1 cu in	690 cc / 42.1 cu in	690 cc / 42.1 cu in	690 cc / 42.1 cu in	692.7 cc / 42.27 cu in

Key Specifications

Engine

Single cylinder, 4-stroke, SOHC, 4-valve

Power

49 kW / 67 hp @ 7500 rpm

Torque

68 Nm / 6.9 kgf-m / 50.2 lb-ft @ 6000 rpm

Top Speed

Not published by manufacturer

Weight

140 kg / 309 lbs

Fuel Capacity

12 Litres / 3.2 US gal

Full 2016 KTM 690 Enduro R Specifications

Year 2016

Make Model KTM 690 Enduro R

Seat Height 910 mm / 35.8 in

Wheelbase 1504 mm ±15 mm / 59.2" ±0.6 in

Ground Clearance 280 mm / 11.0 in

Dry Weight 140 kg / 309 lbs

Fuel Capacity 12 Litres / 3.2 US gal

Max Power 49 kW / 67 hp @ 7500 rpm

Max Torque 68 Nm / 6.9 kgf-m / 50.2 lb-ft @ 6000 rpm

Displacement 690 cc / 42.1 cu in

Engine Detail Single cylinder, 4-stroke, SOHC, 4-valve

Bore x Stroke 102 x 84.5 mm

Compression Ratio 12.6:1

Cooling System Liquid cooled

Exhaust Single, stainless steel silencer

Fuel Induction Keihin EFI, Throttle Body 46 mm

Ignition Keihin EMS with RBW, dual ignition

Lubrication System Pressure Lubrication with two oil pumps

Starter Electric

Battery Capacity 12V, 8.6Ah

Clutch APTC slipper clutch, hydraulically operated

Final Drive Chain, 15:45, X-ring, 5/5 x 1/4

Primary Drive 36:79

Transmission / Drive 6-Speed

Frame Type Chrome-moly steel trellis frame, powder coated, subframe: self supporting plastic tank

Suspension - Front WP-USD, ø 48 mm

Suspension - Rear WP-Monoshock with Pro-Lever Linkage

Rake 27°

Trail 112 mm / 4.4 in

Wheel Travel - Front 250 mm / 9.8 in

Wheel Travel - Rear 250 mm / 9.8 in

Brakes - Front Single 300 mm disc, Brembo 2 piston floating caliper

Brakes - Rear Single 240 mm disc, Brembo single piston floating caliper

ABS Bosch 9M two channel ABS, disengageable, off-road mode option

Tyres - Front 90/90 -21

Tyres - Rear 140/80 -18

Wheels - Front 1.85 x 21", spoked wheels with aluminium rims

Wheels - Rear 5.00 x 17", cast aluminium

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
