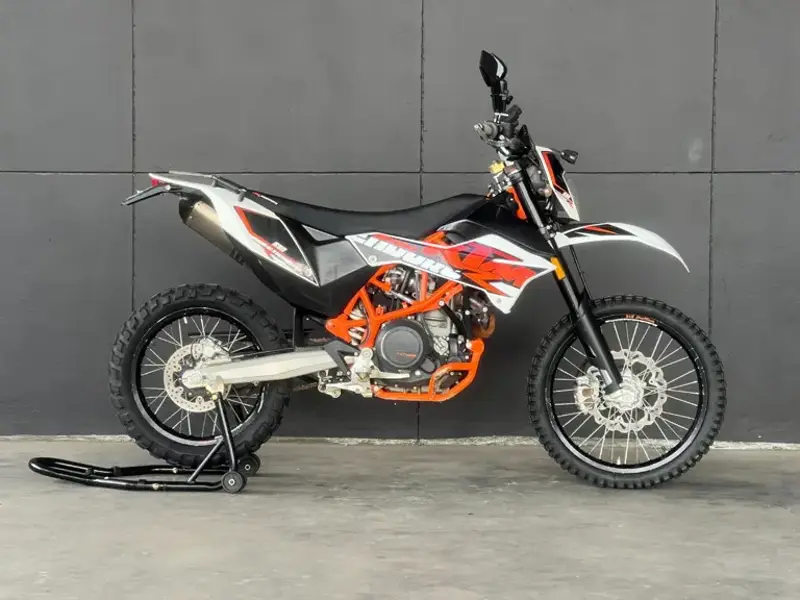

KTM 690 Enduro R Specs

2016 - 2026 • 4 variants

The KTM 690 Enduro R is an enduro motorcycle produced from 2016 to 2026 across 4 variants. It is powered by a single cylinder, 4-stroke, sohc, 4-valve. Peak power output is 63 hp. Peak torque is 65 Nm.

About the KTM 690 Enduro R

KTM introduced the 690 Enduro R as part of their Enduro / Off-Road range, with production running from 2009 to 2026. This technical reference page documents the full specification sheet for the KTM 690 Enduro R, including engine displacement, power and torque figures, frame and suspension geometry, braking systems, and overall dimensions. Select a model year above to view year-specific technical data. Specifications are compiled from official manufacturer sources.

AdSense - 728Ã90

KTM 690 Enduro R by Year

2026 KTM 690 Enduro R View specs →

2020 KTM 690 Enduro R View specs →

2019 KTM 690 Enduro R View specs →

2016 KTM 690 Enduro R View specs →

Spec Evolution

How key specs changed across production years.

Specification	2010	2012	2013	2014	2016	2019	2020	2026
Frame Type	Tubular space frame made from chrome molybdenum steel, powder-coated	Tubular space frame made from chrome molybdenum steel, powder-coated	Tubular space frame made from chrome molybdenum steel, powder-coated	Tubular space frame made from chrome molybdenum steel, powder-coated	Chrome-moly steel trellis frame, powder coated, subframe: self supporting plastic tank	Chromium-molybdenum-steel trellis frame, powder coated	Chromium-molybdenum-steel trellis frame, powder coated	Chromium-molybdenum-steel trellis frame, powder coated
Seat Height	910 mm / 35.8 in	910 mm / 35.8 in	910 mm / 35.8 in	910 mm / 35.8 in	910 mm / 35.8 in	910 mm / 35.8 in	910 mm / 35.8 in	935 mm / 36.8 in ↑
Displacement	690 cc / 42.1 cu in	690 cc / 42.1 cu in	690 cc / 42.1 cu in	690 cc / 42.1 cu in	690 cc / 42.1 cu in	690 cc / 42.1 cu in	690 cc / 42.1 cu in	692.7 cc / 42.27 cu in ↑
Dry Weight	139 kg / 306 lbs	139 kg / 306 lbs	139 kg / 306 lbs	139 kg / 306 lbs	140 kg / 309 lbs ↑	146 kg / 321.8 lbs ↑	146 kg / 321.8 lbs	-
Wheelbase	1504 mm / 59.2 in	1504 mm / 59.2 in	1504 mm / 59.2 in	1504 mm / 59.2 in	1504 mm ±15 mm / 59.2" ±0.6 in	1502 mm / 59.1 in ↓	1502 mm / 59.1 in	1506 mm / 59.3 in ↑
Brakes - Front	Single 300 mm Brembo disc brake with two-piston brake caliper, floating, ABS	Single 300 mm Brembo disc brake with two-piston brake caliper, floating, ABS	Single 300 mm Brembo disc brake with two-piston brake caliper, floating, ABS	Single 300 mm Brembo disc brake with two-piston brake caliper, floating, ABS	Single 300 mm disc, Brembo 2 piston floating caliper	Single 300 mm disc, Brembo 2 piston floating caliper	Single 300 mm disc, Brembo 2 piston floating caliper	Single 300 mm disc, Brembo 2 piston floating caliper
Engine Detail	Four stroke, single cylinder, SOHC, 4 valves per cylinder	Four stroke, single cylinder, SOHC, 4 valve	Four stroke, single cylinder, SOHC, 4 valve	Four stroke, single cylinder, SOHC, 4 valve	Single cylinder, 4-stroke, SOHC, 4-valve	Single cylinder, 4-stroke, SOHC, 4-valve	Single cylinder, 4-stroke, SOHC, 4-valve	Single cylinder, 4-stroke, SOHC, 4-valve
Brakes - Rear	Single240 mm Brembo disc brake with single-piston brake caliper, floating, ABS	Single240 mm Brembo disc brake with single-piston brake caliper, floating, ABS	Single240 mm Brembo disc brake with single-piston brake caliper, floating, ABS	Single240 mm Brembo disc brake with single-piston brake caliper, floating, ABS	Single 240 mm disc, Brembo single piston floating caliper	Single 240 mm disc, Brembo single piston floating caliper	Single 240 mm disc, Brembo single piston floating caliper	Single 240 mm disc, Brembo single piston floating caliper
Fuel Capacity	12 Litres / 3.17 US gal	12 Litres / 3.17 US gal	12 Litres / 3.17 US gal	12 Litres / 3.17 US gal	12 Litres / 3.2 US gal	13.5 Litres / 3.5 US gal ↑	13.5 Litres / 3.5 US gal	13.3 Litres / 3.5 US gal ↓
Ground Clearance	280 mm / 11.0 in	280 mm / 11.0 in	280 mm / 11.0 in	280 mm / 11.0 in	280 mm / 11.0 in	270 mm / 10.6 in ↓	270 mm / 10.6 in	265 mm / 10.4 in ↓
Suspension - Front	WP Suspension 4860 D48/26 MA, ø48 mm	WP Suspension 4860 D48/26 MA, ø48 mm	WP Suspension 4860 D48/26 MA, ø48 mm	WP Suspension 4860 D48/26 MA, ø48 mm	WP-USD, ø 48 mm ↓	WP USD XPLOR 48 forks	WP USD XPLOR 48 forks	WP USD XPLOR 48 forks, compression and rebound adjustable
Suspension - Rear	WP Suspension 4618 with Pro‑Lever linkage	WP Suspension 4618 with Pro‑Lever linkage	WP Suspension 4618 with Pro‑Lever linkage	WP Suspension 4618 with Pro‑Lever linkage	WP-Monoshock with Pro-Lever Linkage	WP shock absorber with Pro-Lever linkage	WP shock absorber with Pro-Lever linkage	WP XPLOR shock absorber with Pro-Lever linkage, preload adjuster
ABS	-	-	-	-	Bosch 9M two channel ABS, disengageable, off-road mode option	Bosch 9.1 MP (incl. Cornering ABS and offroad mode, disengageable) ↑	Bosch 9.1 MP (incl. Cornering ABS and offroad mode, disengageable)	Bosch 9.1 MP (incl. Cornering ABS and offroad mode, disengageable)
Battery Capacity	-	-	-	-	12V, 8.6Ah	Lithium Ion 12V 8,6Ah	Lithium Ion 12V 8,6Ah	-
Clutch	APTC Anti-hopping clutch in oil bath / hydraulically operated	APTC Anti-hopping clutch in oil bath / hydraulically operated	APTC Anti-hopping clutch in oil bath / hydraulically operated	APTC Anti-hopping clutch in oil bath / hydraulically operated	APTC slipper clutch, hydraulically operated	PASC slipper clutch, hydraulically operated	PASC slipper clutch, hydraulically operated	PASC slipper clutch, hydraulically operated
Bore x Stroke	102 x 84.5 mm	102 x 84.5 mm	102 x 84.5 mm	102 x 84.5 mm	102 x 84.5 mm	105 x 80 mm ↑	105 x 80 mm	-
Final Drive	Chain	Chain	Chain	Chain	Chain, 15:45, X-ring, 5/5 x 1/4	Chain, 16:40 ↑	Chain, 16:40	Chain, 520 X-ring ↑
Wet Weight	150 kg / 330 lbs	150 kg / 330 lbs	150 kg / 330 lbs	150 kg / 330 lbs	-	-	-	162 kg / 357 lbs
Compression Ratio	11.7:1	11.7:1	11.7:1	11.7:1	12.6:1 ↑	12.7:1 ↑	12.7:1	-
Cooling System	Liquid cooling system, continuous circulation with water pump	Liquid cooling system, continuous circulation with water pump	Liquid cooling system, continuous circulation with water pump	Liquid cooling system, continuous circulation with water pump	Liquid cooled	Liquid cooled	Liquid cooled	Liquid cooled
Exhaust	-	-	-	-	Single, stainless steel silencer	Stainless steel primary and secondary silencer	Stainless steel primary and secondary silencer	Stainless steel primary and secondary silencer
Wheels - Front	-	-	-	-	1.85 x 21", spoked wheels with aluminium rims	Spoked wheels with aluminum rims, 1.85 x 21″	Spoked wheels with aluminum rims, 1.85 x 21″	Spoked wheels with aluminum rims, 1.85 x 21″
Wheels - Rear	-	-	-	-	5.00 x 17", cast aluminium	Spoked wheels with aluminum rims, 2.50 x 18″ ↓	Spoked wheels with aluminum rims, 2.50 x 18″	Spoked wheels with aluminum rims, 2.50 x 18″
Transmission / Drive	6 Speed, claw shifted	6 Speed, claw shifted	6 Speed, claw shifted	6 Speed, claw shifted	6-Speed	6-Speed	6-Speed	6-Speed
Steering Head Angle	63°	63°	63°	63°	-	62.3°	62.3°	62.3°
Fuel Induction	-	-	-	-	Keihin EFI, Throttle Body 46 mm	Keihin EFI (throttle body 50 mm) ↑	Keihin EFI (throttle body 50 mm)	Keihin EFI (throttle body 50 mm)
Trail	-	-	-	-	112 mm / 4.4 in	117.3 mm / 4.6 in ↑	117.3 mm / 4.6 in	120 mm / 4.7 in ↑
Wheel Travel - Front	275 mm / 10.8 in	275 mm / 10.8 in	275 mm / 10.8 in	250 mm / 9.8 in ↓	250 mm / 9.8 in	250 mm / 9.8 in	250 mm / 9.8 in	265 mm / 10.4 in ↑
Max Power	63 hp / 46.kW @ 7500 rpm	63 hp / 46.kW @ 7500 rpm	63 hp / 46.kW @ 7500 rpm	63 hp / 46.kW @ 7500 rpm	49 kW / 67 hp @ 7500 rpm ↓	72 hp / 54 kW @ ↑	72 hp / 54 kW @	79 hp / 58.1 kW ↑
Wheel Travel - Rear	275 mm / 10.8 in	275 mm / 10.8 in	275 mm / 10.8 in	250 mm / 9.8 in ↓	250 mm / 9.8 in	250 mm / 9.8 in	250 mm / 9.8 in	250 mm / 9.8 in
Ignition	Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment	Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment	Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment	Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment	Keihin EMS with RBW, dual ignition	Keihin EMS with RBW, double ignition	Keihin EMS with RBW, double ignition	Keihin EMS with RBW, double ignition
Max Torque	65 Nm / 47.9 ft-lb @ 6550 rpm	65 Nm / 47.9 ft-lb @ 6550 rpm	65 Nm / 47.9 ft-lb @ 6550 rpm	65 Nm / 47.9 ft-lb @ 6550 rpm	68 Nm / 6.9 kgf-m / 50.2 lb-ft @ 6000 rpm ↑	73.5 Nm / 54 lb-ft @ 6500 rpm ↑	73.5 Nm / 54 lb-ft @ 6500 rpm	73 Nm / 54 lb-ft ↓
Lubrication System	-	-	-	-	Pressure Lubrication with two oil pumps	Pressure lubrication with 2 oil pumps	Pressure lubrication with 2 oil pumps	Pressure lubrication with 2 oil pumps
Starter	Electric, automatic decompressor	Electric, automatic decompressor	Electric, automatic decompressor	Electric, automatic decompressor	Electric	Electric	Electric	Electric
