Key Specifications
Engine
Single cylinder, 4-stroke, SOHC, 4-valve
Torque
73.5 Nm / 54 lb-ft @ 6500 rpm
Weight
146 kg / 321.8 lbs
Fuel Capacity
13.5 Litres / 3.5 US gal

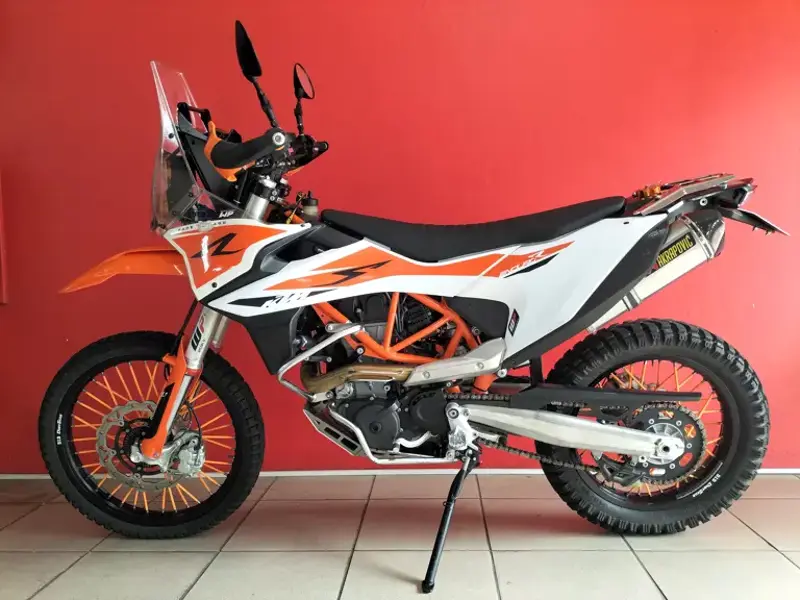

Full 2019 KTM 690 Enduro R Specifications
Year
2019
Make Model
KTM 690 Enduro R
Seat Height
910 mm / 35.8 in
Wheelbase
1502 mm / 59.1 in
Ground Clearance
270 mm / 10.6 in
Dry Weight (kg)
146
Dry Weight
146 kg / 321.8 lbs
Fuel Capacity
13.5 Litres / 3.5 US gal
Displacement
690 cc / 42.1 cu in
Engine Detail
Single cylinder, 4-stroke, SOHC, 4-valve
Bore x Stroke
105 x 80 mm
Compression Ratio
12.7:1
Cooling System
Liquid cooled
Exhaust
Stainless steel primary and secondary silencer
Fuel Induction
Keihin EFI (throttle body 50 mm)
Ignition
Keihin EMS with RBW, double ignition
Lubrication System
Pressure lubrication with 2 oil pumps
Starter
Electric
Battery Capacity
Lithium Ion 12V 8,6Ah
Clutch
PASC slipper clutch, hydraulically operated
Final Drive
Chain, 16:40
Primary Drive
36:79
Transmission / Drive
6-Speed
Frame Type
Chromium-molybdenum-steel trellis frame, powder coated
Suspension - Front
WP USD XPLOR 48 forks
Suspension - Rear
WP shock absorber with Pro-Lever linkage
Handlebar
Aluminum, tapered, Ø 28 / 22 mm
Steering Head Angle
62.3°
Subframe
Self-supporting plastic tank
Trail
117.3 mm / 4.6 in
Wheel Travel - Front
250 mm / 9.8 in
Wheel Travel - Rear
250 mm / 9.8 in
Brakes - Front
Single 300 mm disc, Brembo 2 piston floating caliper
Brakes - Rear
Single 240 mm disc, Brembo single piston floating caliper
ABS
Bosch 9.1 MP (incl. Cornering ABS and offroad mode, disengageable)
Tyres - Front
90/90 -21
Tyres - Rear
140/80 -18
Wheels - Front
Spoked wheels with aluminum rims, 1.85 x 21″
Wheels - Rear
Spoked wheels with aluminum rims, 2.50 x 18″
