Key Specifications
Power
118 hp / 88.1 kW @ 13500 rpm
Torque
66 Nm / 48.6 lb-ft @ 11250 rpm
Top Speed
255.3 km/h / 158.6 mph
Fuel Capacity
18.16 litres
Advertisement

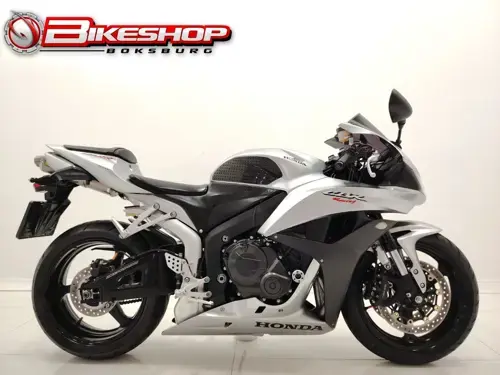

Full 2008 Honda CBR 600RR Specifications
Year
2008
Colours
Red/Black, Pearl Orange/Black, Metallic Silver, Graffiti
Make Model
Honda CBR 600RR
Wheelbase (mm)
1,369 mm
Wheelbase (in.)
53.9 inches
Seat Height (mm)
820 mm
Seat Height (in.)
32.3 inches
Seat Height
820 mm / 32.3 in
Wheelbase
1369 mm / 53.9 in
Ground Clearance
135 mm / 5.3 in
Height
1105 mm / 43.5 in
Length
2015 mm / 79.3 in
Width
685 mm / 26.9 in
Wet Weight (kg)
186
Fuel Capacity (l)
18.16 litres
Fuel Capacity (gal.)
4.80 gallons
Dry Weight (lbs.)
410.0 pounds
Dry Weight (kg)
186
Dry Weight
156.5 kg / 345 lbs
Fuel Capacity
18.2 liters / 4.8 gal
Wet Weight
186 kg / 410 lbs
Stroke
4
Fuel Control
DOHC
Engine Type
In-line four
Displacement (ci)
36.55 cubic inches
Displacement (cc)
599.00 cc
Bore x Stroke (mm)
67.0 x 42.5 mm
Bore x Stroke (in,)
2.6 x 1.7 inches
Displacement
599 cc / 36.5 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.
Fuel System
Injection. Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors
Bore x Stroke
67 x 42.5 mm
Compression Ratio
12.2:1
Cooling System
Liquid cooled
Engine Oil Specification
Synthetic, 10W/40
Fuel Consumption
38 to 44 mpg, 40 mpg avg.
Fuel Induction
PGM-DSFI, single-valve 40mm throttle bodies, two injectors/cyl., Denso 12-hole injectors
Ignition
Computer-controlled digital transistorized with electronic advance and independent four-cylinder 3D-mapped computer control.
Lubrication
Wet sump
Spark Plug
NGK, IMR9C-9H
Starter
Electric
Valve System
4
Clutch
Cable-operated multiplate wet clutch.
Final Drive
#525 O-ring chain
Gearbox
6-speed
Transmission / Drive
Close-ratio 6 Speed
Trail (in.)
3.8 inches
Trail (mm)
98 mm
Wheel Travel - Front (in.)
4.7 inches
Wheel Travel - Front (mm)
119 mm
Wheel Travel - Rear (in.)
5.1 inches
Wheel Travel - Rear (mm)
130 mm
Frame Type
Aluminium, twin spar
Suspension - Front
41mm inverted Big Piston Fork with spring preload, rebound and compression damping adjustability
Suspension - Rear
Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability;
Rake
23.5°
Trail
97.7mm / 3.9 in
Wheel Travel - Front
120 mm / 4.3 in
Wheel Travel - Rear
129.5 mm / 5.1 in
Brakes - Front Diameter (in.)
12.2 inches
Brakes - Front Diameter (mm)
310 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Rear Diameter (mm)
220 mm
Brakes - Front
2x 310mm discs 4 piston calipers
Brakes - Rear
Single 220mm disc 1 piston caliper
Tyres - Front
120/70ZR-17 Dunlop Qualifier PT G
Tyres - Rear
180/55ZR-17 Dunlop Qualifier PT G
