Key Specifications
Engine
Four stroke, transverse four cylinder, Chain-driven DOHC, 4 valve per cylinder.
Power
141 kW / 189 hp @ 13000rpm
Torque
114 Nm / 84.1 lb-ft @ 11000 rpm
Fuel Capacity
16 Litres / 4.2 US gal

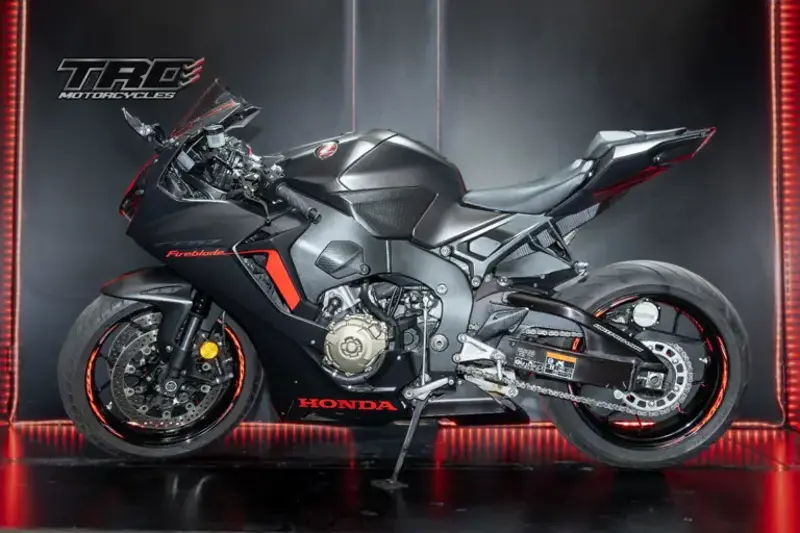

Full 2017 Honda CBR 1000RR Fireblade Specifications
Year
2017
Make Model
Honda CBR 1000RR Fireblade
Seat Height
8352 mm / 32.7 in
Wheelbase
1405 mm / 55.3 in
Height
1125 mm / 44.7 in
Length
205 mm / 81.7 in
Width
720 mm / 32.3 in
Wet Weight (kg)
196
Fuel Capacity
16 Litres / 4.2 US gal
Wet Weight
196 kg / 432 lbs
Displacement
999 cc / 60.9 in cc / 60.9 cu-in
Engine Detail
Four stroke, transverse four cylinder, Chain-driven DOHC, 4 valve per cylinder.
Bore x Stroke
76 x 55.1 mm
Compression Ratio
13.0:1
Cooling System
Liquid cooling
Fuel Induction
PGM Ø Dual Stage Fuel Injection
Ignition
Computer-controlled digital transistorized with 3-D mapping
Lubrication
Wet sump
Starter
Electric
Clutch
Wet, multiplate with diaphragm spring
Final Drive
#530 O-ring-sealed chain
Transmission / Drive
Close-ratio six-speed (Quickshifter - optional accessory)
Frame Type
Diamond; aluminium composite twin spar
Suspension - Front
Telescopic inverted fork with an inner tube diameter of 43 mm, and a Big Piston Front Fork with preload, compression and rebound adjustment
Suspension - Rear
Unit Pro-Link with gas-charged HMAS damper featuring 10-step preload and stepless compression and rebound damping adjustment
Rake
23°2
Trail
96.2 mm / 3.8 in
Wheel Travel - Front
125 mm / 4.9 in
Wheel Travel - Rear
138 mm / 5.4 in
Brakes - Front
2x 320 mm hydraulic disc with Tokico radial mounted calipers and high performance track ready pads Rear.
Brakes - Rear
Single 220mm disc, Combined ABS and sintered metal pads
ABS
Electronically controlled ABS
Tyres - Front
120/70ZR17 58W
Tyres - Rear
190/50ZR17 73W
Wheels - Front
17 x MT3.50
Wheels - Rear
17 x MT6.00
