Honda CBR 1000RR Fireblade Specs

2005 - 2019 • 7 variants

The Honda CBR 1000RR Fireblade is a sport motorcycle produced from 2005 to 2019 across 7 variants. It is powered by a four stroke, transverse four cylinder, chain-driven dohc, 4 valve per cylinder.. Peak power output is 189 hp. Peak torque is 114 Nm.

About the Honda CBR 1000RR Fireblade

The Honda CBR 1000RR Fireblade is a Sport motorcycle from Honda, produced from 2005 to 2019. This page provides a comprehensive technical reference for the Honda CBR 1000RR Fireblade, covering all available specification data including engine configuration, displacement, power output, dimensions, weight, and chassis details. Use the year selector above to find specifications for a specific model year. All data is sourced from manufacturer specifications and is intended as a technical reference for riders, mechanics, and enthusiasts.

AdSense - 728Ã90

Honda CBR 1000RR Fireblade by Year

2019 Honda CBR 1000RR Fireblade View specs →

2018 Honda CBR 1000RR Fireblade View specs →

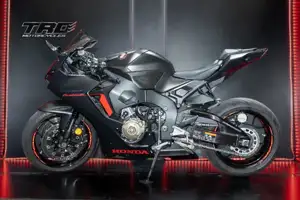

2017 Honda CBR 1000RR Fireblade View specs →

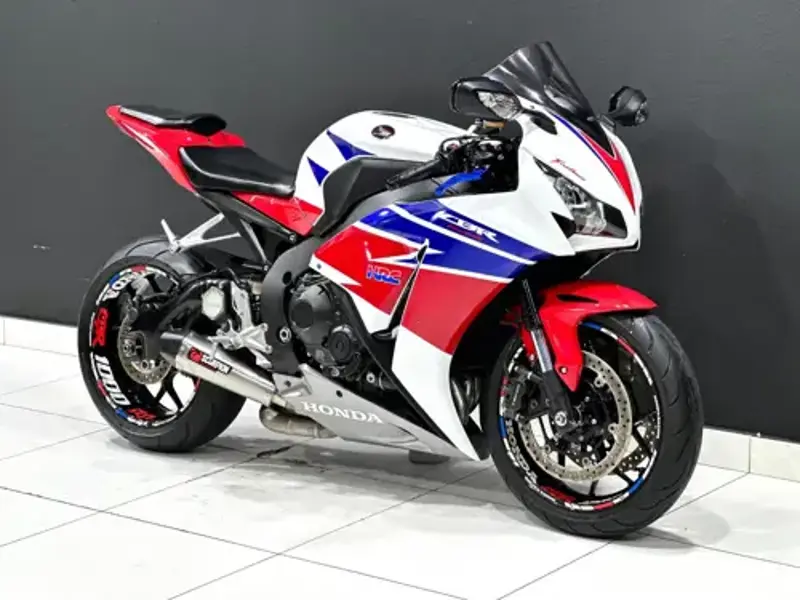

2016 Honda CBR 1000RR Fireblade View specs →

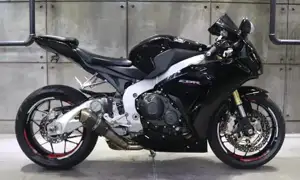

2013 Honda CBR 1000RR Fireblade View specs →

2006 Honda CBR 1000RR Fireblade View specs →

2005 Honda CBR 1000RR Fireblade View specs →

Spec Evolution

How key specs changed across production years.

Specification	2005	2006	2013	2016	2017	2018	2019
Frame Type	Aluminium, twin spar	Aluminium, twin spar	Diamond; aluminium composite twin-spar	Diamond; aluminium composite twin-spar	Diamond; aluminium composite twin spar	Diamond; aluminium composite twin spar	Diamond; aluminium composite twin spar
Displacement	998 cc / 60.9 cu-in	998 cc / 60.9 cu-in	998 cc / 60.9 cu-in	999.8 cc / 60.9 cu-in ↑	999 cc / 60.9 in cc / 60.9 cu-in ↓	999 cc / 60.9 in cc / 60.9 cu-in	999 cc / 60.9 in cc / 60.9 cu-in
Seat Height	828 mm / 32.3 in	828 mm / 32.3 in	820 mm / 32.3 in ↓	817.8 mm / 32.2 in ↓	8352 mm / 32.7 in ↑	8352 mm / 32.7 in	8352 mm / 32.7 in
Dry Weight	179 kg / 394.6 lbs	176 kg / 388 lbs ↓	173 kg / 381.3 lbs ↓	-	-	-	-
Engine Detail	Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.	Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.	Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.	Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder	Four stroke, transverse four cylinder, Chain-driven DOHC, 4 valve per cylinder.	Four stroke, transverse four cylinder, Chain-driven DOHC, 4 valve per cylinder.	Four stroke, transverse four cylinder, Chain-driven DOHC, 4 valve per cylinder.
Wheelbase	1407 mm / 55.4 in	1407 mm / 55.4 in	1407 mm / 55.4 in	1409.7 mm / 55.5 in ↑	1405 mm / 55.3 in ↓	1405 mm / 55.3 in	1405 mm / 55.3 in
Brakes - Front	2x 310mm discs 4 piston calipers	2x 320mm discs 4 piston calipers	2x 320mm discs 4 piston calipers, Combined ABS and sintered metal pads	2x Floating 320mm discs Brembo four-piston calipers	2x 320 mm hydraulic disc with Tokico radial mounted calipers and high performance track ready pads Rear.	2x 320 mm hydraulic disc with Tokico radial mounted calipers and high performance track ready pads Rear.	2x 320 mm hydraulic disc with Tokico radial mounted calipers and high performance track ready pads Rear.
Brakes - Rear	Single 220mm disc 1 piston calliper	Single 220mm disc 1 piston calliper	Single 220mm disc, Combined ABS and sintered metal pads	Single 220mm disc, 1 piston caliper	Single 220mm disc, Combined ABS and sintered metal pads	Single 220mm disc, Combined ABS and sintered metal pads	Single 220mm disc, Combined ABS and sintered metal pads
Fuel Capacity	18 Litres / 4.8 gal	18 Litres / 4.8 gal	17.7 Liters / 4.7 gal ↓	19.3 Liters / 4.4 gal ↑	16 Litres / 4.2 US gal ↓	16 Litres / 4.2 US gal	16 Litres / 4.2 US gal
Suspension - Front	43mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability;	43mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability;	43mm inverted HMAS cartridge-type telescopic fork with stepless preload, compression and rebound adjustment,	43mm Öhlins inverted fork with spring preload, rebound and compression damping adjustability	Telescopic inverted fork with an inner tube diameter of 43 mm, and a Big Piston Front Fork with preload, compression and rebound adjustment	Telescopic inverted fork with an inner tube diameter of 43 mm, and a Big Piston Front Fork with preload, compression and rebound adjustment	Telescopic inverted fork with an inner tube diameter of 43 mm, and a Big Piston Front Fork with preload, compression and rebound adjustment
Suspension - Rear	Pro-Link single shock with spring preload, rebound and compression damping adjustability;	Pro-Link single shock with spring preload, rebound and compression damping adjustability;	Unit Pro-Link with gas-charged HMAS damper featuring 10-step preload and stepless compression and rebound damping adjustment,	Pro-Link Öhlins shock with spring preload, rebound and compression damping adjustability	Unit Pro-Link with gas-charged HMAS damper featuring 10-step preload and stepless compression and rebound damping adjustment	Unit Pro-Link with gas-charged HMAS damper featuring 10-step preload and stepless compression and rebound damping adjustment	Unit Pro-Link with gas-charged HMAS damper featuring 10-step preload and stepless compression and rebound damping adjustment
Top Speed	284.3 km/h / 176.6 mph	277.7 km/h ↓	287.1 km/h / 178.3 mph ↑	-	-	-	-
ABS	-	-	-	Electronic Combined ABS	Electronically controlled ABS	Electronically controlled ABS	Electronically controlled ABS
Bore x Stroke	75 x 56.5 mm	75 x 56.5 mm	76 x 55.1 mm ↑	76 x 55.1 mm	76 x 55.1 mm	76 x 55.1 mm	76 x 55.1 mm
Final Drive	Chain	Chain	#530 O-ring - sealed chain	#530 O-ring-sealed chain	#530 O-ring-sealed chain	#530 O-ring-sealed chain	16T/43T; chain ↓
Height	1120 mm / 44.0 in	1120 mm / 44.0 in	1135 mm / 46.5 in ↑	1141mm / 44.9 in ↑	1125 mm / 44.7 in ↓	1125 mm / 44.7 in	1125 mm / 44.7 in
Length	720 mm / 26.9 in	2025 mm / 79.7 in ↑	685 mm / 26.9 in ↓	2080 mm / 81.8 in ↑	205 mm / 81.7 in ↓	2005 mm / 81.7 in ↑	2005 mm / 81.7 in
Compression Ratio	11.9:1	12.2:1 ↑	12.3:1 ↑	12.3:1	13.0:1 ↑	13.0:1	13.0:1
Wet Weight	205 kg / 450 lbs	202 kg / 445 lbs ↓	195 kg / 430 lbs (209 kg / 461.7 lbs C-ABS) ↓	201 kg / 444 lbs ↑	196 kg / 432 lbs ↓	196 kg / 432 lbs	195 kg / 430 lbs ↓
Cooling System	Liquid cooled	Liquid cooled	Liquid cooling	Liquid cooled	Liquid cooling	Liquid cooling	Liquid cooling
Tyres - Front	120/70 ZR17	120/70 ZR17	120/70ZR-17	120/70-17 Pirelli Diablo Supercorsa SC	120/70ZR17 58W	120/70ZR17 58W	120/70ZR17 58W
Width	720 mm / 26.9 in	720 mm / 26.9 in	685 mm / 26.9 in ↓	720 mm / 28.3 in ↑	720 mm / 32.3 in	720 mm / 32.3 in	720 mm / 32.3 in
Tyres - Rear	190/50 ZR17	190/50 ZR17	190/50ZR-17	190/50-17 Pirelli Diablo Supercorsa SC	190/50ZR17 73W	190/50ZR17 73W	190/50ZR17 73W
Rake	23.3°	23.3°	23.3°	23.3°	23°2 ↓	23°2	23°2
Wheels - Front	-	-	17 x MT3.50	17M/C x MT3.5	17 x MT3.50	17 x MT3.50	17 x MT3.50
Wheels - Rear	-	-	17 x MT6.00	17M/C x MT6	17 x MT6.00	17 x MT6.00	17 x MT6.00
Fuel Consumption	16.9 km/lit	16.5 km/lit ↓	-	-	-	-	-
Transmission / Drive	6 Speed	6 Speed	6 Speed	Close-ratio 6 Speed	Close-ratio six-speed (Quickshifter - optional accessory)	Close-ratio six-speed (Quickshifter - optional accessory)	Close-ratio six-speed (Quickshifter - optional accessory)
Fuel Induction	PGM-DSFI electronic fuel injection. 44mm Throttle Bore	PGM-DSFI fuel injection, 4 x 44mm throttle bodies ↓	PGM-DSFI electronic fuel injection 46mm Throttle Bore ↑	Programmed Dual Stage Fuel Injection (PGM-DSFI) with 46mm throttle bodies, Denso 12-hole injectors	PGM Ø Dual Stage Fuel Injection	PGM Ø Dual Stage Fuel Injection	PGM-FI; 48mm throttle bodies
Trail	102 mm / 4.5 in	102 mm / 4.5 in	96.2 mm / 3.8 in ↓	96.2mm / 3.8 in	96.2 mm / 3.8 in	96.2 mm / 3.8 in	96.2 mm / 3.8 in
Wheel Travel - Front	120 mm / 4.3 in	120 mm / 4.3 in	120 mm / 4.3 in	-	125 mm / 4.9 in	125 mm / 4.9 in	120 mm / 4.7 in ↓
Max Power	126,4 kW / 172 hp @ 11250 rpm	126,4 kW /172 hp @ 11250 rpm	175.6 hp / 131.0 kW @ 12000 rpm ↑	133 kW / 178 hp @ 12250rpm ↓	141 kW / 189 hp @ 13000rpm ↑	141 kW / 189 hp @ 13000rpm	141 kW / 189 hp @ 13000rpm
Wheel Travel - Rear	135 mm / 5.4 in	135 mm / 5.4 in	135 mm / 5.4 in	-	138 mm / 5.4 in	138 mm / 5.4 in	132 mm / 5.2 in ↓
Ignition	Computer-controlled digital transistorized with electronic advance	Computer-controlled digital transistorized with electronic advance	Computer-controlled digital transistorised with electronic advance	Computer-controlled digital transistorized with 3-D mapping	Computer-controlled digital transistorized with 3-D mapping	Computer-controlled digital transistorized with 3-D mapping	Digital transistorized w/ electronic advance
Max Torque	115 Nm / 11.73 kg-m @ 10000 rpm	115 Nm / 11.73 kg-m @ 10000 rpm	115 Nm / 11.73 kg-m @ 8500 rpm	114 Nm / 84.07 ft.lb @ 10500rpm ↓	114 Nm / 84.1 lb-ft @ 11000 rpm	114 Nm / 84.1 lb-ft @ 11000 rpm	114 Nm / 84.1 lb-ft @ 11000 rpm
Standing Start ¼ Mile	10.4 sec	10.6 sec ↑	10.3 sec ↓	-	-	-	-
