Key Specifications
Engine
Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.
Power
126,4 kW /172 hp @ 11250 rpm
Torque
115 Nm / 11.73 kg-m @ 10000 rpm
Fuel Capacity
18 Litres / 4.8 gal

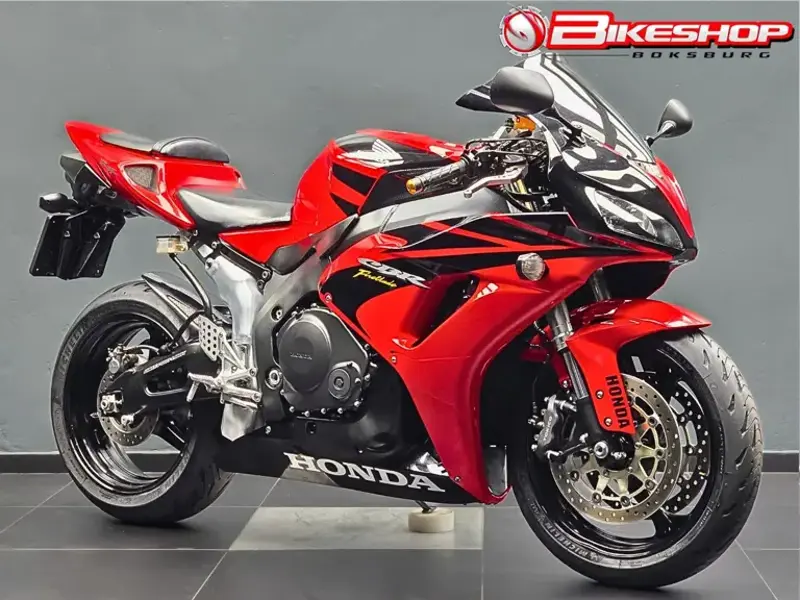

Full 2006 Honda CBR 1000RR Fireblade Specifications
Year
2006
Make Model
Honda CBR 1000RR Fireblade
Seat Height
828 mm / 32.3 in
Wheelbase
1407 mm / 55.4 in
Ground Clearance
130 mm / 5.1 in
Height
1120 mm / 44.0 in
Length
2025 mm / 79.7 in
Width
720 mm / 26.9 in
Wet Weight (kg)
202
Dry Weight (kg)
176
Dry Weight
176 kg / 388 lbs
Fuel Capacity
18 Litres / 4.8 gal
Wet Weight
202 kg / 445 lbs
Displacement
998 cc / 60.9 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.
Bore x Stroke
75 x 56.5 mm
Compression Ratio
12.2:1
Cooling System
Liquid cooled
Engine Oil Specification
Synthetic, 10W/40
Fuel Consumption
16.5 km/lit
Fuel Induction
PGM-DSFI fuel injection, 4 x 44mm throttle bodies
Ignition
Computer-controlled digital transistorized with electronic advance
Lubrication
Wet sump
Spark Plug
NGK, IMR9C-9HES
Starter
Electric
Final Drive
Chain
Transmission / Drive
6 Speed
Frame Type
Aluminium, twin spar
Suspension - Front
43mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability;
Suspension - Rear
Pro-Link single shock with spring preload, rebound and compression damping adjustability;
Rake
23.3°
Trail
102 mm / 4.5 in
Wheel Travel - Front
120 mm / 4.3 in
Wheel Travel - Rear
135 mm / 5.4 in
Brakes - Front
2x 320mm discs 4 piston calipers
Brakes - Rear
Single 220mm disc 1 piston calliper
Tyres - Front
120/70 ZR17
Tyres - Rear
190/50 ZR17
