Key Specifications
Engine
In-line four, four-stroke
Power
121 kW / 165 hp @ 11000 rpm
Torque
112 Nm / 11.4 kgf-m / 83 lb-ft @ 9250 rpm
Weight
228 kg / 502.6 lbs
Fuel Capacity
20.00 litres

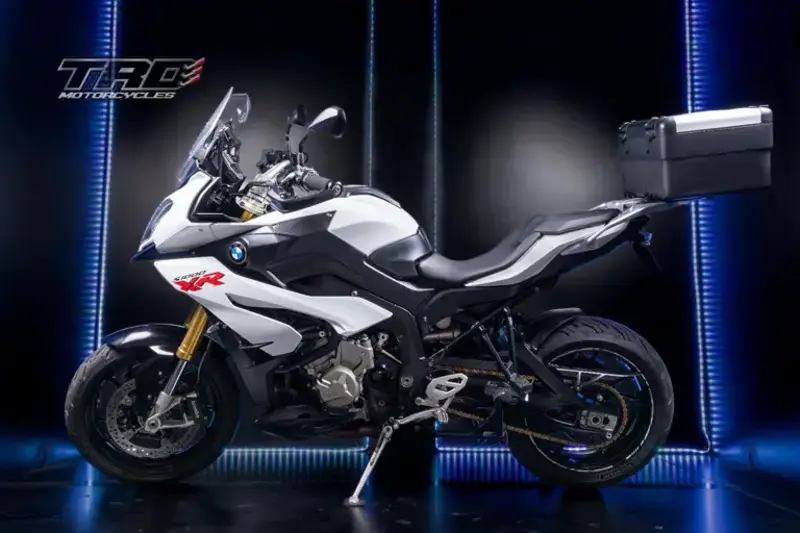

Full 2016 BMW S 1000XR Specifications
Comments
Small windscreen. Switchable ABS.
Year
2016
Colours
Light White, Racing Red
Make Model
BMW S 1000XR
Width (mm)
940 mm
Width (in.)
37.0 inches
Wheelbase (mm)
1,548 mm
Wheelbase (in.)
60.9 inches
Height (in.)
44.8 inches
Height (mm)
1,138 mm
Seat Height (mm)
840 mm
Seat Height (in.)
33.1 inches
Length (mm)
2,183 mm
Length (in.)
85.9 inches
Seat Height
840 mm / 33.1 in
Wheelbase
1548 mm / 60.9 in
Height
1408 mm / 45.4 in
Length
283 mm / 85.9 in
Width
940 mm / 37.0 in
Fuel Capacity (l)
20.00 litres
Fuel Capacity (gal.)
5.28 gallons
Dry Weight (lbs.)
392.4 pounds
Dry Weight (kg)
178
Wet Weight (kg)
228.0 kg
Wet Weight (lbs.)
502.7 pounds
Fuel Capacity
20 Litres / 5.2 US gal
Wet Weight
228 kg / 502.6 lbs
Fuel Reserve (l)
4.00 litres
Fuel Reserve (gal.)
1.06 gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
In-line four, four-stroke
CO2
125.3 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
80.0 x 49.7 mm
Bore x Stroke (in,)
3.1 x 2.0 inches
Displacement
999 cc / 60.9 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, valve actuation via single rocker arms , 4 valves per cylinder, Intake/outlet mm 33.5/27.2
Fuel System
Injection
Bore x Stroke
80 x 49.7 mm
Compression Ratio
12.0:1
Cooling System
Liquid cooled
Emissions
Closed-loop 3-way catalytic converter
Engine Management
BMS-X
Fuel Consumption
5.40 litres/100 km (18.5 km/l or 43.56 mpg)
Lubrication
Wet sump
Mixture Control
Electronic injection, throttle valve 48 mm
Starter
Electric
Valve System
4
Clutch
Multi-disc anti-hopping oil-bath clutch, mechanically operated
Final Drive
Chain
Gear Ratios
1st 2.647 / 2nd 2.091 / 3rd 1.727 / 4th 1.500 / 5th 1.360 / 6th 1.261
Gearbox
6-speed
Primary Drive
Chain 17/45
Primary Drive Ratios
1.652
Transmission / Drive
2.647
Transmission / Drive
Constant -mesh 6-speed gearbox, straight-toothed
Trail (in.)
4.6 inches
Trail (mm)
117 mm
Wheel Travel - Front (in.)
5.9 inches
Wheel Travel - Front (mm)
150 mm
Wheel Travel - Rear (in.)
5.5 inches
Wheel Travel - Rear (mm)
140 mm
Frame Type
Construction type aluminium perimeter frame, engine self-supporting
Suspension - Front
Upside-down telescopic fork, stanchion diameter 46 mm, adjustable for bump and rebound optional: Dynamic ESA
Suspension - Rear
Aluminium double-strut swing arm with central spring strut, adjustable for rebound, optional: Dynamic ESA
Rake
25.5°
Steering Head Angle
64.5°
Trail
117 mm / 4.6 in
Wheel Travel - Front
150 mm / 5.9 in
Wheel Travel - Rear
140 mm / 5.5 in
Electrical System
Alternator W 350 Battery V/Ah 12/8, maintenance-free Headlight W low beam H7 12 V 55 W High beam H7 12 V 55 W Starter kW 0.8
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front Diameter (mm)
320 mm
Brakes - Rear Diameter (in.)
10.4 inches
Brakes - Rear Diameter (mm)
265 mm
Brakes - Front
2 x 320 mm Discs, 4 piston calipers, ABS Pro (dynamic brake light currently for EU markets only).
Brakes - Rear
Single 220 mm disc, 1 piston caliper, ABS Pro (dynamic brake light currently for EU markets only).
Rims
Cast aluminum wheels
Tyres - Front
120/70 ZR17
Tyres - Rear
190/55 ZR17
