Key Specifications
Engine
In-line four, four-stroke
Power
121 kW / 165 hp @ 11000 rpm
Torque
114 Nm / 84 lb-ft @ 9250 rpm
Fuel Capacity
20.00 litres

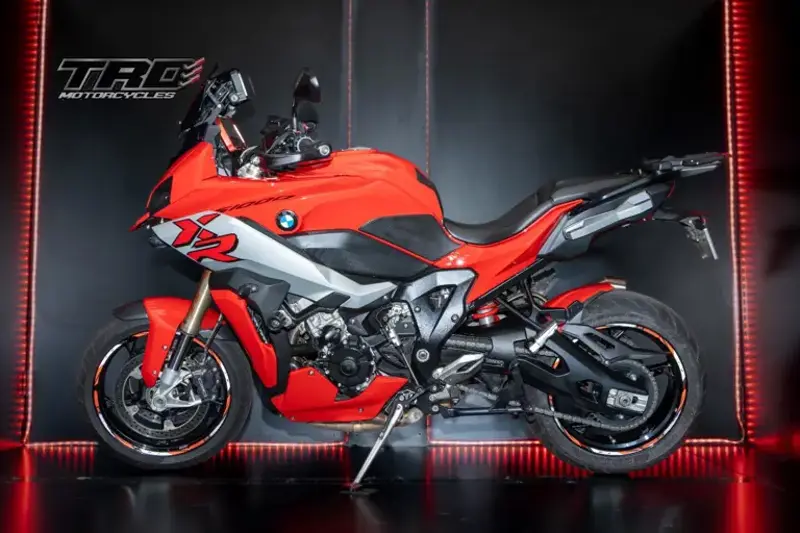

Full 2021 BMW S 1000XR Specifications
Comments
Riding Modes Pro (incl. HSC Pro, MSR, ABS Pro and DTC). Integrated Pannier Holders.
Year
2021
Colours
Light White/Racing Blue Metallic/Racing Red, Racing Red/White Aluminum, Ice Grey
Make Model
BMW S 1000XR
Height (in.)
55.6 inches
Height (mm)
1411 mm
Length (in.)
91.9 inches
Length (mm)
2333 mm
Seat Height (in.)
31.1 inches
Seat Height (mm)
790 mm
Seat Heigth -Alternate (in.)
33.0 inches
Seat Heigth -Alternate (mm)
838 mm
Storage
Storage compartment underneath seat
Wheelbase (in.)
60.9 inches
Wheelbase (mm)
1548 mm
Width (in.)
36.1 inches
Width (mm)
917 mm
Seat Height
840 mm / 33.0 in - 790 mm / 31.1 with optional lowered suspension
Wheelbase
1522 mm / 59.9 in
Height
411 mm / 55.5 in
Length
2333 mm / 91.8 in
Width
917 mm / 36.1
Wet Weight (kg)
226.0 kg
Wet Weight (lbs.)
498.2 pounds
Fuel Capacity (l)
20.00 litres
Fuel Capacity (gal.)
5.28 US gallons
Fuel Capacity
20 Litres / 5.2 US gal
Wet Weight
226 kg / 498 lbs
Fuel Reserve (l)
4.00 litres
Fuel Reserve (gal.)
1.06 US gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
In-line four, four-stroke
Displacement (ci)
60.96 cubic inches
Displacement (cc)
999.0 cc
CO2
147.6 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
80.0 x 49.7 mm
Bore x Stroke (in,)
3.1 x 2.0 inches
Displacement
999 cc / 60.9 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, Intake/outlet mm 33.5/27.2
Fuel System
Injection. Electronic Injection
Bore x Stroke
80 x 49.7 mm
Compression Ratio
12.5:1
Cooling System
Liquid/oil cooled
Emissions
Regulated three-way catalytic converter - EURO5
Engine Management
Electronic intake pipe injection
Fuel Consumption
6.36 litres/100 km (15.7 km/l or 36.98 mpg)
Lubrication
Wet sump
Mixture Control
Electronic injection, throttle valve 48 mm
Starter
Electric
Valve System
4
Clutch
Multiplate clutch in oil bath, slipper clutch, self-reinforcing
Final Drive
Chain drive, 17/45
Gear Ratios
1st 2.647 2nd 2.091 3rd 1.727 4th. 1.476 5th 1.304 lth. 1.167
Gearbox
6-speed
Primary Drive
Chain 17/45
Primary Drive Ratios
1.652
Transmission / Drive
Six-speed synchromesh gearbox with spur gears
Transmission / Drive
2.647
Wheel Travel - Rear (mm)
150 mm
Wheel Travel - Rear (in.)
5.9 inches
Wheel Travel - Front (mm)
150 mm
Wheel Travel - Front (in.)
5.9 inches
Trail (mm)
116 mm
Trail (in.)
4.6 inches
Frame Type
Aluminum composite bridge frame, partially self-supporting engine
Suspension - Front
45mm Upside-down telescopic fork electronic self-adjusting rebound/compression damping (Dynamic ESA)
Suspension - Rear
Aluminium double-sided swing-arm, central spring strut, electronic preload adjuster, electronic self-adjusting rebound/compression damping (Dynamic ESA)
Rake
24.9°
Steering Head Angle
65.1°
Trail
116 mm / 4.6 in
Wheel Travel - Front
150 mm / 5.9 in
Wheel Travel - Rear
150 mm / 5.9 in
Traction control
BMW Motorrad DTC
Lighting system
LED lights
Brakes - Front
2x 320mm floating discs, radial four-piston fixed calipers
Brakes - Rear
Single 265mm disc brake, twin-piston floating caliper
ABS
BMW Motorrad Race ABS, partially integral
Rims
Cast Aluminium
Rims - Front
3.50 x 17
Rims - Rear
6.00 x 17
Tyres - Front
120/70 ZR 17
Tyres - Rear
190/55 ZR 17
Wheels
Cast aluminum wheels
