Key Specifications
Engine
In-line four, four-stroke
Power
151 kW / 205 hp @ 13000 rpm
Torque
113 Nm / 83.3 lb-ft @ 11000 rpm
Weight
197 kg / 434.3 lbs - M Package: 193.2 kg / 426.6 lbs
Fuel Capacity
16.50 litres

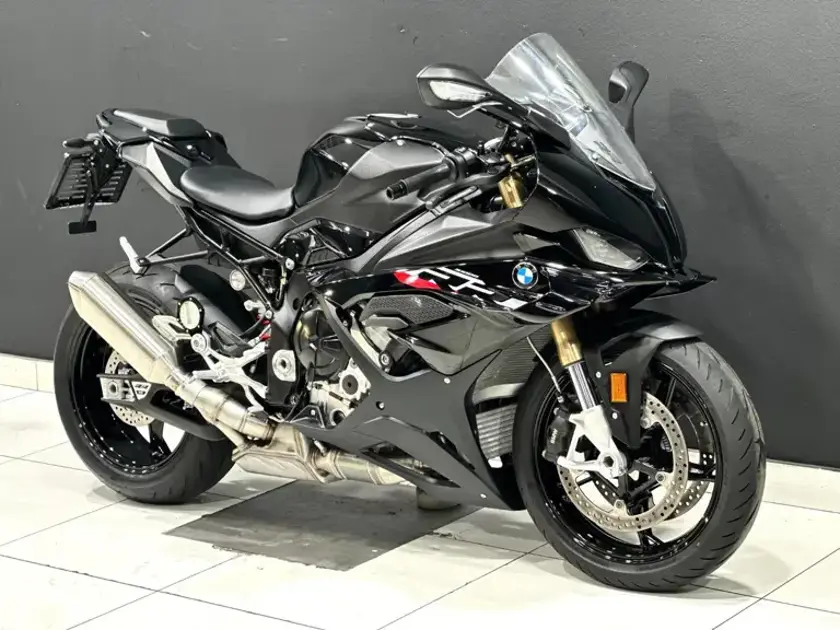

Full 2023 BMW S 1000RR Specifications
Comments
4 Ride Modes (Rain/Sport/Dynamic/Race). Dynamic Traction Control. Hill Start Control. Electronic Immobilizer.
Year
2023
Colours
Light White/M Motorsport, Passion Red, Black Storm Metallic
Make Model
BMW S 1000RR
Width (mm)
848 mm
Width (in.)
33.4 inches
Wheelbase (mm)
1455 mm
Wheelbase (in.)
57.3 inches
Seat Height (mm)
833 mm
Seat Height (in.)
32.8 inches
Length (mm)
2073 mm
Length (in.)
81.6 inches
Height (mm)
1151 mm
Height (in.)
45.3 inches
Seat Height
824 mm / 32.4 in
Wheelbase
1457 mm / 57.4 in
Height
1203.9 mm / 47.4 in
Length
2073 mm / 81.6 in
Width
848 mm / 33.4 in
Wet Weight (lbs.)
434.0 pounds
Wet Weight (kg)
196.9 kg
Oil Capacity (Quarts)
3.7 US quarts
Oil Capacity (l)
3.50 litres
Fuel Capacity (l)
16.50 litres
Fuel Capacity (gal.)
4.36 US gallons
Dry Weight (lbs.)
385.8 pounds
Dry Weight (kg)
175
Dry Weight
175 kg / 385.8 lbs - M Package: 173.2 kg / 382 lbs (without battery)
Fuel Capacity
16.5 Litres / 4.35 US gal
Wet Weight
197 kg / 434.3 lbs - M Package: 193.2 kg / 426.6 lbs
Fuel Reserve (l)
4.00 litres
Fuel Reserve (gal.)
1.06 US gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
In-line four, four-stroke
Displacement (ci)
60.96 cubic inches
Displacement (cc)
999.0 cc
Bore x Stroke (mm)
80.0 x 49.7 mm
Bore x Stroke (in,)
3.1 x 2.0 inches
Displacement
999 cc / 60.9 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, valve actuation via single cam followers, BMW ShiftCam variable intake cam control
Fuel System
Injection. Electronic injection, variable intake pibe
Bore x Stroke
80 x 49.7 mm
Compression Ratio
13.3:1
Cooling System
Liquid/oil cooled
Emissions
Closed-loop 3-way catalytic converter, emission standard EU-5
Engine Lubrication
Wet sump
Engine Management
BMS-0 | Electronic fuel injection with ride-by-wire throttle system, variable intake, and knock sensor, 48mm throttle body
Idle Speed
1200 +/- 50 RPM
Lubrication
Wet sump
Spark Plug
NGK LMAR9D-J
Starter
Electric
Valve System
4
Chain Size
525
Clutch
Multiplate clutch in oil bath, anti-hopping clutch, with self-reinforcement
Final Drive
Chain 525 17/46
Gearbox
6-speed
Number of Chain Links
118
Sprocket
17/45 (front/rear)
Transmission / Drive
Claw-shifted 6-speed gearbox with straight cut gears
Fork Tube Size (in.)
1.8 inches
Fork Tube Size (mm)
46 mm
Trail (in.)
4.0 inches
Trail (mm)
101 mm
Wheel Travel - Front (in.)
4.7 inches
Wheel Travel - Front (mm)
120 mm
Wheel Travel - Rear (in.)
4.6 inches
Wheel Travel - Rear (mm)
117 mm
Frame Type
Bridge-type aluminum laminate frame with load-bearing engine
Suspension - Front
45 mm Upside-down telescopic fork, compression and rebound stage adjustable, spring preload, optional DDC electronically adjustable damping
Suspension - Rear
Aluminum underslung double-sided swingarm, Central spring and shock absorber, Spring preload, rebound and compression adjustable, Optional DDC electronically adjustable damping
Rake
23.6°
Steering Head Angle
66.4°
Trail
99.8 mm / 3.9 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
117 mm / 4.6 in
Traction control
BMW Motorrad DTC
Instrumentation
6.5´ TFT-Display
Lighting system
LED Headlight
Brakes - Front
2x 320mm floating disc, radial 4-piston fixed calipers
Brakes - Rear
Single 220 mm disk, single-piston floating caliper
ABS
BMW Motorrad Race ABS (partial integral), Brake-Slide-Assist / BMW Motorrad ABS Pro (settings for RAIN, ROAD, DYNAMIC, RACE mode)
Brake Fluid Type
DOT 4
Rims - Front
3.50 x 17
Rims - Rear
6.00 x 17
Tyre Pressure - Front
36 PSI (2.5 Bar or 250 kPa)
Tyre Pressure - Rear
42 PSI (2.9 Bar or 290 kPa)
Tyres - Front
120/70 ZR17
Tyres - Rear
190/55 ZR17 (with M wheels: 200/55 ZR17)
Wheels
Standard die-cast aluminum wheels Optional M forged aluminum or M Carbon wheels
