Key Specifications
Engine
In-line four, four-stroke
Power
143.9 kW / 193 hp @ 13000 rpm
Torque
112 Nm / 11.4 kgf-m / 82.6 lb-ft @ 9750 rpm
Fuel Capacity
17.50 litres

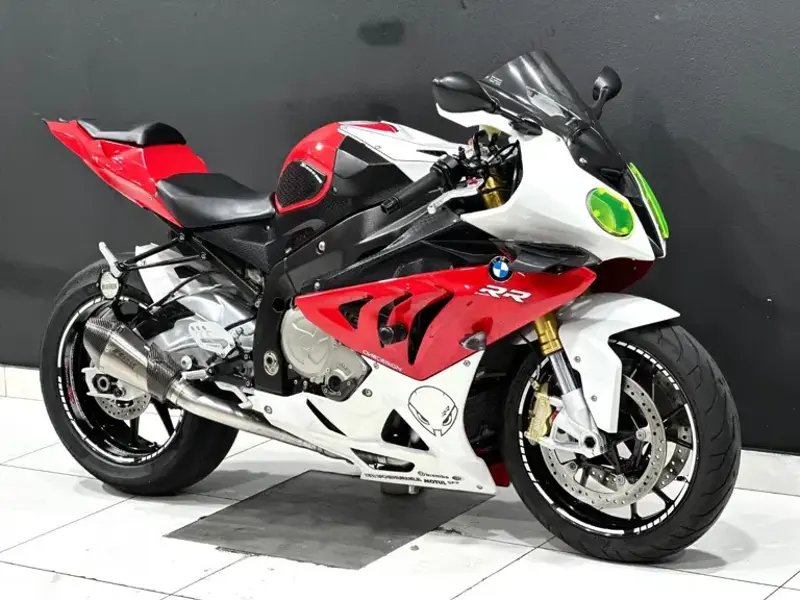

Full 2012 BMW S 1000RR Specifications
Comments
Blata is from the Czech Republic.
Year
2012
Colours
Blue, black, blue/white, red
Make Model
BMW S 1000RR
Width (mm)
826 mm
Width (in.)
32.5 inches
Wheelbase (mm)
1,432 mm
Wheelbase (in.)
56.4 inches
Seat Height (mm)
820 mm
Seat Height (in.)
32.3 inches
Length (mm)
2,056 mm
Length (in.)
80.9 inches
Height (mm)
1,138 mm
Height (in.)
44.8 inches
Seat Height
820 mm / 33.3 in
Wheelbase
1422.7 mm / 56.0 in
Height
1138 mm / 44.8 in. (excl. mirrors)
Length
2056 mm / 80.9 in.
Width
826 mm / 32.5 in (incl. mirrors)
Wet Weight (lbs.)
445.3 pounds
Wet Weight (kg)
202.0 kg
Fuel Capacity (l)
17.50 litres
Fuel Capacity (gal.)
4.62 gallons
Dry Weight (lbs.)
392.4 pounds
Dry Weight (kg)
178
Dry Weight
178 kg / 398 lbs
Fuel Capacity
17.5 Litres / 4.6 US gal
Bore x Stroke (in,)
3.1 x 2.0 inches
Bore x Stroke (mm)
80.0 x 49.7 mm
CO2
132.2 CO
Displacement (cc)
999.00 cc
Displacement (ci)
60.96 cubic inches
Engine Type
In-line four, four-stroke
Fuel Control
DOHC
Fuel Reserve (gal.)
1.06 gallons
Fuel Reserve (l)
4.00 litres
Displacement
999 cc / 60.9 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Fuel System
Injection. Electronic intake pipe injection/digital engine management including knock sensor (BMS-K-P)
Bore x Stroke
80 x 49.7 mm
Compression Ratio
13.0:1
Cooling System
Liquid cooled.
Emissions
Two regulated three-way catalytic converters, EU-3
Engine Lubrication
Dry sump
Exhaust
Stainless steel. 4-in-2-in-1. Closed-loop 3-way catalytic converter, emission standard EU-3.
Fuel Consumption
5.70 litres/100 km (17.5 km/l or 41.27 mpg)
Fuel Induction
Electronic fuel injection, digital motor electronics BMS-KP
Intake / Outlet Valve Diameter
33.5 mm / 27.2 mm
Lubrication
Wet sump
Starter
Electric
Throttle valve diameter
48 mm
Valve System
4
Battery Capacity
14 V / 10 Ah, maintenance-free
Clutch
Multiple disc antihopping clutch in oil bath, mechanically operated
Final Drive
Chain 17/45
Gear Ratios
1st 2.6471 / 2nd 2.091 / 3rd 1.727 / 4th 1.500 / 5th 1.360 / 6th 1.261:1
Gearbox
6-speed
Transmission / Drive
6 Speed
Trail (in.)
3.8 inches
Trail (mm)
96 mm
Wheel Travel - Front (in.)
6.7 inches
Wheel Travel - Front (in.)
4.7 inches
Wheel Travel - Front (mm)
120 mm
Wheel Travel - Front (mm)
170 mm
Wheel Travel - Rear (in.)
7.5 inches
Wheel Travel - Rear (mm)
190 mm
Frame Type
Bridge-type aluminium frame, load-bearing engine
Suspension - Front
43mm Telescopic fork
Suspension - Rear
Cast aluminium double-strut swingarm with eccentric adjustment for rear axle, central spring strut, spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable.
Rake
23.9°
Steering Head Angle
66.1°
Trail
98.5 mm
Wheel Travel - Front
125 mm / 4.9 in
Wheel Travel - Rear
125 mm / 4.9 in
Lighting system
12V 55W headlight
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front Diameter (mm)
320 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Rear Diameter (mm)
220 mm
Brakes - Front
2x 320mm discs 4 piston calipers
Brakes - Rear
Single 220mm disc 1 piston calipers
ABS
BMW Motorrad Race ABS, disengageable, 4 modes to select: Rain, Sport, Race, Slick (optional equipment)
Rims
Cast aluminium
Rims - Front
3.50 x 17
Rims - Rear
6.00 x 17
Tyres - Front
120/70 ZR17
Tyres - Rear
180/55 ZR17
Wheels
Cast alumiium
