Key Specifications
Engine
In-line four, four-stroke
Power
146 kW / 199 hp @ 13500 rpm
Torque
113 Nm / 11.5 kgf-m / 83.3 lb-ft @ 10500 rpm
Weight
204 kg / 449.7 lbs
Fuel Capacity
4.62 gallons

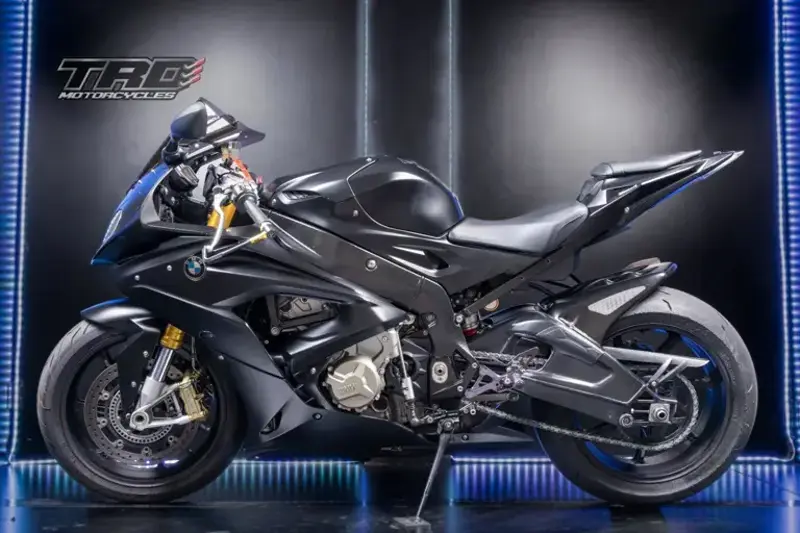

Full 2015 BMW S 1000RR Specifications
Comments
4 mode, disengageable Race ABS and DTC (Dynamic Traction Control).
Year
2015
Colours
Red/white, black, white/blue/red
Make Model
BMW S 1000RR
Width (mm)
826 mm
Width (in.)
32.5 inches
Wheelbase (mm)
1,425 mm
Wheelbase (in.)
56.1 inches
Height (in.)
44.8 inches
Seat Height (mm)
815 mm
Seat Height (in.)
32.1 inches
Length (mm)
2,050 mm
Length (in.)
80.7 inches
Height (mm)
1,138 mm
Seat Height
815 mm / 32.0 in
Wheelbase
1425 mm / 56.1 in
Height
1140 mm / 44.8 in. (excl. mirrors)
Length
2050 mm / 80.7 in.
Width
826 mm / 32.5 in. (incl. mirrors)
Dry Weight (kg)
175.5
Dry Weight (lbs.)
386.9 pounds
Fuel Capacity (gal.)
4.62 gallons
Fuel Capacity (l)
17.50 litres
Wet Weight (kg)
204.0 kg
Wet Weight (lbs.)
449.7 pounds
Dry Weight
175.5 kg / 386.9 lbs
Fuel Capacity
17.5 Litres / 4.6 US gal
Wet Weight
204 kg / 449.7 lbs
Fuel Reserve (l)
4.00 litres
Fuel Reserve (gal.)
1.06 gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
In-line four, four-stroke
Displacement (ci)
60.96 cubic inches
Displacement (cc)
999.00 cc
CO2
132.2 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
80.0 x 49.7 mm
Bore x Stroke (in,)
3.1 x 2.0 inches
Displacement
999 cc / 60.9 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Fuel System
Injection. Electronic injection
Bore x Stroke
80 x 49.7 mm
Compression Ratio
13.0:1
Cooling System
Liquid cooled
Engine Management
Emission control Closed-loop 3-way catalytic converters, EU-3 norm with electronically controlled interference pipe
Fuel Consumption
5.70 litres/100 km (17.5 km/l or 41.27 mpg)
Fuel Reserve
4.1 Litres / 1.08 US gal
Lubrication
Wet sump
Mixture Control
Electronic injection
Starter
Electric
Valve System
4
Battery Capacity
12 V / 7 Ah, maintenance-free
Clutch
Multiplate clutch in oil bath, anti-hopping clutch, mechanically controlled
Final Drive
Chain 17/45
Gearbox
6-speed
Primary Drive
Chain 17/45
Transmission / Drive
Constant-mesh 6-speed gearbox, straight-toothed
Trail (in.)
3.8 inches
Trail (mm)
97 mm
Wheel Travel - Front (in.)
4.7 inches
Wheel Travel - Front (mm)
120 mm
Wheel Travel - Rear (in.)
4.7 inches
Wheel Travel - Rear (mm)
120 mm
Frame Type
Aluminium composite bridge frame, partially self-supporting engine
Suspension - Front
Upside-down telescopic fork ø 46 mm, compression and rebound stage adjustable
Suspension - Rear
Aluminium double-strut swingarm, compression and rebound damping adjustable
Rake
23.5°
Steering Head Angle
66,5°
Trail
96.5 mm / 3.8"
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
120 mm / 4.7 in
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front Diameter (mm)
320 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Rear Diameter (mm)
220 mm
Brakes - Front
2 x 320mm Discs, 4 piston calipers
Brakes - Rear
Single 220mm disc, 1 piston caliper
ABS
BMW Motorrad Race ABS (part-integral), disengageable, modes to select
Rims
Aluminium cast wheels
Rims - Front
3.50 x 17
Rims - Rear
6.00 x 17
Tyres - Front
120/70 ZR17
Tyres - Rear
180/55 ZR17
Wheels
Aluminium cast wheels
