2014 Triumph Tiger 800 Specifications

Enduro / Off-Road

Advertisement
No images available
Tap to enlarge

2014 Triumph Tiger 800 Overview

The 2014 Triumph Tiger 800 is an enduro / off-road motorcycle built around 799 cc of displacement. Under the tank sits a Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder engine, a compression ratio of 12.0:1. 2014 Triumph Tiger 800 delivers 69.1 kW @ 9300 rpm of peak power and 79 Nm @ 7850 rpm of torque. From a practical standpoint, the 2014 Tiger 800 tips the scales at 209.6 kg, carries a 18.9-litre fuel tank, offers a seat height of 810 mm -830 mm and spans a 1530 mm wheelbase. Scroll down for the complete 2014 Triumph Tiger 800 spec sheet covering every technical detail from suspension travel to tyre sizes.

2014 Tiger 800 - Pros & Cons

Strengths

  • Strong power output: 2014 Triumph Tiger 800 makes 69.1 kW @ 9300 rpm with 79 Nm @ 7850 rpm of torque - competitive figures for its class.

Considerations

  • Age-related wear: As with any used Tiger 800, a thorough pre-purchase inspection covering consumables, service history and tyres is always recommended.

Owner Experiences & Common Issues

General ownership notes

The 2014 Triumph Tiger 800 has built a reputation for solid everyday reliability when serviced to schedule. As with any motorcycle of this era, documented service history is the single biggest indicator of long-term reliability when buying used.

Tiger 800 - Buying & Maintenance Guide

What to check before buying

When inspecting a used 2014 Triumph Tiger 800, start with the basics: check the service book for oil change frequency, inspect the chain and sprockets for wear, and look for oil seepage around the engine casings and rocker covers. A cold start test is invaluable - a well-maintained Tiger 800 should fire up cleanly and settle to a smooth idle within a few seconds.

Oil and filter changes

Regular oil changes are the single most important maintenance task on any Tiger 800. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. Always use the correct viscosity grade as specified in the owner's manual.

2014 Triumph Tiger 800 - Frequently Asked Questions

What engine does the 2014 Triumph Tiger 800 have?
The 2014 Triumph Tiger 800 uses a Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder engine with 799 cc of displacement. It is liquid cooled.
How much does the 2014 Triumph Tiger 800 weigh?
The 2014 Triumph Tiger 800 weighs 209.6 kg. This is the manufacturer's wet figure.
How much power does the 2014 Triumph Tiger 800 make?
The 2014 Triumph Tiger 800 produces 69.1 kW @ 9300 rpm of power and 79 Nm @ 7850 rpm of torque. These are peak figures.
What is the fuel tank capacity of the 2014 Triumph Tiger 800?
The 2014 Triumph Tiger 800 has a 18.9-litre fuel tank.
Is the 2014 Triumph Tiger 800 suitable for shorter riders?
The 2014 Triumph Tiger 800 has a seat height of 810 mm -830 mm. This is a moderate seat height that suits a wide range of rider heights.
What brakes does the 2014 Triumph Tiger 800 have?
The 2014 Triumph Tiger 800 uses 2 x 308 mm Floating discs, Nissin 2-piston floating caliper at the front and Single 255 mm disc, Nissin single-piston floating caliper at the rear.
What tyre sizes does the 2014 Triumph Tiger 800 use?
The 2014 Triumph Tiger 800 runs 110/80 ZR19 front and 150/70 ZR17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.
What gearbox does the 2014 Triumph Tiger 800 have?
The 2014 Triumph Tiger 800 is fitted with a 6 Speed transmission.

Triumph Tiger 800 Spec Evolution

The Triumph Tiger 800 was produced across 5 model years (2011-2015). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification 2011 2012 2013 2014 2015
Max Power 69.1 kW / 93.9 hp @ 9300 rpm 69.1 kW / 93.9 hp @ 9300 rpm 69.1 kW / 93.9 hp @ 9300 rpm 69.1 kW / 93.9 hp @ 9300 rpm 70.8 KW / 95 hp @ 9300 rpm
Wet Weight 209.6 kg / 462 lbs 209.6 kg / 462 lbs 209.6 kg / 462 lbs 209.6 kg / 462 lbs 210 kg / 462 lbs
Engine Detail Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder.
Fuel Capacity 18.9 Litres / 5.0 gal / 4.2 Imp gal 18.9 Litres / 5.0 gal / 4.2 Imp gal 18.9 Litres / 5.0 gal / 4.2 Imp gal 18.9 Litres / 5.0 gal / 4.2 Imp gal 19 Litres / 5.0 gal / 4.3 Imp gal
Frame Type Tubular steel trellis frame. Swingarm: twin-sided, cast aluminum alloy wheels Tubular steel trellis frame. Swingarm: twin-sided, cast aluminum alloy wheels Tubular steel trellis frame. Swingarm: twin-sided, cast aluminum alloy wheels Tubular steel trellis frame. Swingarm: twin-sided, cast aluminum alloy wheels Tubular steel trellis frame, swingarm: twin-sided, cast aluminum alloy
Displacement 799 cc / 48.7 cu-in 799 cc / 48.7 cu-in 799 cc / 48.7 cu-in 799 cc / 48.7 cu-in 799 cc / 48.7 cub in
Brakes - Front 2 x 308 mm Floating discs, Nissin 2-piston floating caliper (ABS available), Nissin master cylinder, 14mm diameter 2 x 308 mm Floating discs, Nissin 2-piston floating caliper (ABS available), Nissin master cylinder, 14mm diameter 2 x 308 mm Floating discs, Nissin 2-piston floating caliper (ABS available), Nissin master cylinder, 14mm diameter 2 x 308 mm Floating discs, Nissin 2-piston floating caliper (ABS available), Nissin master cylinder, 14mm diameter 2 x 308 mm Foating discs, Nissin 2-piston sliding caliper, ABS available
Brakes - Rear Single 255 mm disc, Nissin single-piston floating caliper (ABS available) Single 255 mm disc, Nissin single-piston floating caliper (ABS available) Single 255 mm disc, Nissin single-piston floating caliper (ABS available) Single 255 mm disc, Nissin single-piston floating caliper (ABS available) Single 255 mm disc, Nissin single-piston sliding caliper, ABS available

Key Specifications

Engine

Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder

Power

69.1 kW / 93.9 hp @ 9300 rpm

Torque

79 Nm / 8.1 kgf-m /58 ft.lb @ 7850 rpm

Top Speed

N/A

Weight

209.6 kg / 462 lbs

Fuel Capacity

18.9 Litres / 5.0 gal / 4.2 Imp gal

Advertisement

Full 2014 Triumph Tiger 800 Specifications

Year 2014
Make Model Triumph Tiger 800
Max Power 69.1 kW / 93.9 hp @ 9300 rpm
Max Torque 79 Nm / 8.1 kgf-m /58 ft.lb @ 7850 rpm
Displacement 799 cc / 48.7 cu-in
Engine Detail Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder
Bore x Stroke 74 x 61.9 mm
Compression Ratio 12.0:1
Cooling System Liquid cooled
Exhaust Stainless Steel, 3 into 1, high-level stainless steel silencer
Fuel Induction Multipoint sequential electronic fuel injection
Ignition Digital CDI
Lubrication Wet sump
Starter Electric
Advertisement

Compare Triumph Tiger 800

See how the 2014 Triumph Tiger 800 stacks up against similar motorcycles.

2014 Triumph Tiger 800
VS
2014 Suzuki DL 1000 V-Strom

2014 Triumph Tiger 800

vs 2014 Suzuki DL 1000 V-Strom

2014 Triumph Tiger 800
VS
2014 Honda XR 650L

2014 Triumph Tiger 800

vs 2014 Honda XR 650L

2014 Triumph Tiger 800
VS

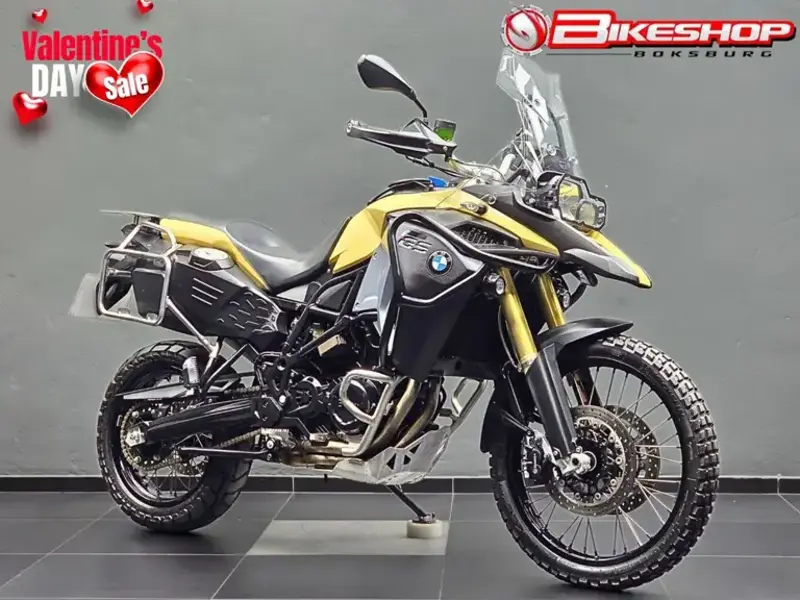

2014 BMW F 800GS Adventure
