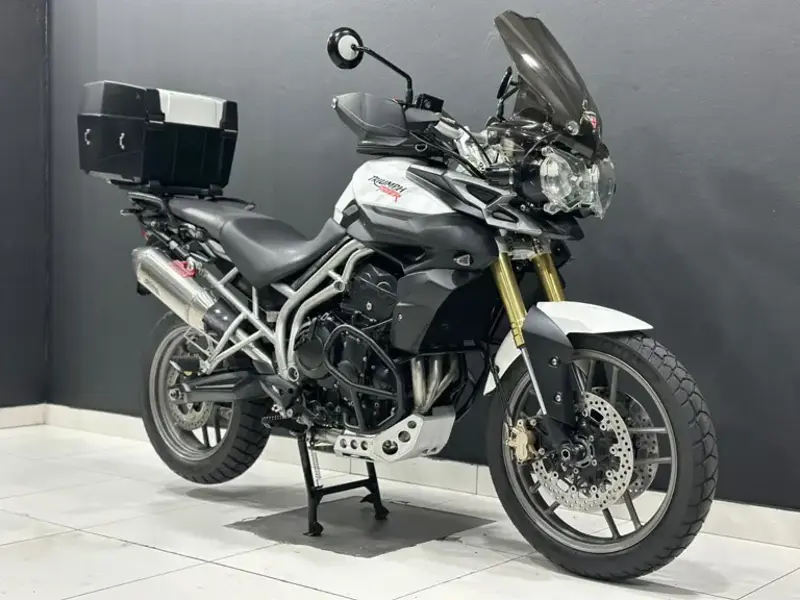

2011 Triumph Tiger 800 Specifications

Name: 2011 Triumph Tiger 800
Brand: Triumph

Enduro / Off-Road • Specs last verified 13 July 2026

No images available

Tap to enlarge

2011 Triumph Tiger 800 Overview

The 2011 Triumph Tiger 800 is an enduro / off-road motorcycle built around 799 cc of displacement. Under the tank sits a Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder engine, a compression ratio of 12.0:1. 2011 Triumph Tiger 800 delivers 69.1 kW @ 9300 rpm of peak power and 79 Nm @ 7850 rpm of torque. From a practical standpoint, the 2011 Tiger 800 tips the scales at 209.6 kg, carries a 18.9-litre fuel tank, offers a seat height of 810 mm -830 mm and spans a 1530 mm wheelbase. That's roughly 10.8 kg heavier than the average enduro / off-road motorcycle in our database. Scroll down for the complete 2011 Triumph Tiger 800 spec sheet covering every technical detail from suspension travel to tyre sizes.

2011 Tiger 800 - Pros & Cons

Strengths

Strong power output: 2011 Triumph Tiger 800 makes 69.1 kW @ 9300 rpm with 79 Nm @ 7850 rpm of torque - competitive figures for its class.
Fuel injection: The Multipoint sequential electronic fuel injection system delivers crisp throttle response and reliable cold starts regardless of altitude or temperature.
Large fuel range: The 18.9-litre tank is generously sized, translating to extended range between stops - ideal for touring or longer commutes.

Considerations

Chain final drive upkeep: Chain final drive needs regular cleaning, lubrication and tension checks to get full life out of the sprockets.

Wear Points & Servicing Notes

Cooling system servicing

The Liquid cooled system on the Tiger 800 needs a coolant change roughly every two years (or per the service schedule) - skipping it lets the coolant turn acidic and corrode the aluminium water passages over time.

Fuelling & injector care

Fuelling comes from Multipoint sequential electronic fuel injection. Systems like this are largely maintenance-free beyond keeping fuel quality decent and injectors clear - a fuel-system cleaner every service interval is cheap insurance.

Brake disc and pad wear

The 2 x 308 mm Floating discs, Nissin 2-piston floating caliper (ABS available), Nissin master cylinder, 14mm diameter front brake gives strong, progressive stopping power. Disc thickness and pad depth are worth checking at every tyre change, since worn pads can score the disc surface.

Suspension condition on used examples

Up front, the Tiger 800 runs Showa 45mm upside down forks and Showa monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment at the rear. On a used example, check fork seals for weeping oil and test the rear linkage for play - seals are a relatively cheap fix but useful when negotiating price.

Final drive maintenance

Final drive is by chain - expect to clean and lube it every few hundred kilometres and check tension regularly; a neglected chain wears the sprockets faster than the chain itself.

Frame & chassis check

The frame is Tubular steel trellis frame. Swingarm: twin-sided, cast aluminum alloy wheels - worth a visual check for corrosion or impact damage around the head-stock and swingarm pivot on any used example, since frame damage is far costlier to fix than any service item.

Tiger 800 - Buying & Maintenance Guide

What to check before buying

When inspecting a used 2011 Triumph Tiger 800, start with the basics: check the service book for oil change frequency, inspect the chain and sprockets for wear, and look for oil seepage around the engine casings and rocker covers. A cold start test is invaluable - a well-maintained Tiger 800 should fire up cleanly and settle to a smooth idle within a few seconds.

Oil and filter changes

Regular oil changes are the single most important maintenance task on any Tiger 800. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. Always use the correct viscosity grade as specified in the owner's manual.

Fuel system care

The Tiger 800's fuel injection system is durable but benefits from quality fuel and the occasional use of a fuel-system cleaner additive. If the bike has been stored for more than three months, drain and replace the fuel to prevent varnish deposits in the injectors.

2011 Triumph Tiger 800 - Frequently Asked Questions

What engine does the 2011 Triumph Tiger 800 have?

The 2011 Triumph Tiger 800 uses a Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder engine with 799 cc of displacement. It is liquid cooled.

How much does the 2011 Triumph Tiger 800 weigh?

The 2011 Triumph Tiger 800 weighs 209.6 kg. This is the manufacturer's wet figure.

How much power does the 2011 Triumph Tiger 800 make?

The 2011 Triumph Tiger 800 produces 69.1 kW @ 9300 rpm of power and 79 Nm @ 7850 rpm of torque. These are peak figures.

What is the fuel tank capacity of the 2011 Triumph Tiger 800?

The 2011 Triumph Tiger 800 has a 18.9-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 315-377 km between stops.

Is the 2011 Triumph Tiger 800 suitable for shorter riders?

The 2011 Triumph Tiger 800 has a seat height of 810 mm -830 mm. This is a moderate seat height that suits a wide range of rider heights.

What brakes does the 2011 Triumph Tiger 800 have?

The 2011 Triumph Tiger 800 uses 2 x 308 mm Floating discs, Nissin 2-piston floating caliper at the front and Single 255 mm disc, Nissin single-piston floating caliper at the rear.

What tyre sizes does the 2011 Triumph Tiger 800 use?

The 2011 Triumph Tiger 800 runs 110/80 ZR19 front and 150/70 ZR17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

What gearbox does the 2011 Triumph Tiger 800 have?

The 2011 Triumph Tiger 800 is fitted with a 6 Speed transmission.

Triumph Tiger 800 Spec Evolution

The Triumph Tiger 800 was produced across 5 model years (2011-2015). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2011	2012	2013	2014	2015
Max Power	69.1 kW / 93.9 hp @ 9300 rpm	69.1 kW / 93.9 hp @ 9300 rpm	69.1 kW / 93.9 hp @ 9300 rpm	69.1 kW / 93.9 hp @ 9300 rpm	70.8 KW / 95 hp @ 9300 rpm
Wet Weight	209.6 kg / 462 lbs	209.6 kg / 462 lbs	209.6 kg / 462 lbs	209.6 kg / 462 lbs	210 kg / 462 lbs
Engine Detail	Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder	Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder	Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder	Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder	Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder.
Fuel Capacity	18.9 Litres / 5.0 gal / 4.2 Imp gal	18.9 Litres / 5.0 gal / 4.2 Imp gal	18.9 Litres / 5.0 gal / 4.2 Imp gal	18.9 Litres / 5.0 gal / 4.2 Imp gal	19 Litres / 5.0 gal / 4.3 Imp gal
Frame Type	Tubular steel trellis frame. Swingarm: twin-sided, cast aluminum alloy wheels	Tubular steel trellis frame. Swingarm: twin-sided, cast aluminum alloy wheels	Tubular steel trellis frame. Swingarm: twin-sided, cast aluminum alloy wheels	Tubular steel trellis frame. Swingarm: twin-sided, cast aluminum alloy wheels	Tubular steel trellis frame, swingarm: twin-sided, cast aluminum alloy
Displacement	799 cc / 48.7 cu-in	799 cc / 48.7 cu-in	799 cc / 48.7 cu-in	799 cc / 48.7 cu-in	799 cc / 48.7 cub in
Brakes - Front	2 x 308 mm Floating discs, Nissin 2-piston floating caliper (ABS available), Nissin master cylinder, 14mm diameter	2 x 308 mm Floating discs, Nissin 2-piston floating caliper (ABS available), Nissin master cylinder, 14mm diameter	2 x 308 mm Floating discs, Nissin 2-piston floating caliper (ABS available), Nissin master cylinder, 14mm diameter	2 x 308 mm Floating discs, Nissin 2-piston floating caliper (ABS available), Nissin master cylinder, 14mm diameter	2 x 308 mm Foating discs, Nissin 2-piston sliding caliper, ABS available
Brakes - Rear	Single 255 mm disc, Nissin single-piston floating caliper (ABS available)	Single 255 mm disc, Nissin single-piston floating caliper (ABS available)	Single 255 mm disc, Nissin single-piston floating caliper (ABS available)	Single 255 mm disc, Nissin single-piston floating caliper (ABS available)	Single 255 mm disc, Nissin single-piston sliding caliper, ABS available

Key Specifications

Engine

Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder

Power

69.1 kW / 93.9 hp @ 9300 rpm

Torque

79 Nm / 8.1 kgf-m /58 ft.lb @ 7850 rpm

Top Speed

Not published by manufacturer

Weight

209.6 kg / 462 lbs

Fuel Capacity

18.9 Litres / 5.0 gal / 4.2 Imp gal

Full 2011 Triumph Tiger 800 Specifications

Year 2011

Make Model Triumph Tiger 800

Seat Height 810 mm -830 mm / 31.9 in- 32.7 in adjustable

Wheelbase 1530 mm / 60.2in

Height 1350 mm / 53.1 in

Length 2215 mm / 87.1in

Width 795 mm / 31.3 in

Fuel Capacity 18.9 Litres / 5.0 gal / 4.2 Imp gal

Wet Weight 209.6 kg / 462 lbs

Max Power 69.1 kW / 93.9 hp @ 9300 rpm

Max Torque 79 Nm / 8.1 kgf-m /58 ft.lb @ 7850 rpm

Displacement 799 cc / 48.7 cu-in

Engine Detail Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder

Bore x Stroke 74 x 61.9 mm

Compression Ratio 12.0:1

Cooling System Liquid cooled

Exhaust Stainless Steel, 3 into 1, high-level stainless steel silencer

Fuel Induction Multipoint sequential electronic fuel injection

Ignition Digital CDI

Lubrication Wet sump

Starter Electric

Clutch Wet, multi-plate

Final Drive Chain

Transmission / Drive 6 Speed

Frame Type Tubular steel trellis frame. Swingarm: twin-sided, cast aluminum alloy wheels

Suspension - Front Showa 45mm upside down forks

Suspension - Rear Showa monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment

Rake 23.9°

Trail 92.4mm / 3.6 in

Wheel Travel - Front 180 mm / 7.1 in

Wheel Travel - Rear 170 mm / 6.7 in

Brakes - Front 2 x 308 mm Floating discs, Nissin 2-piston floating caliper (ABS available), Nissin master cylinder, 14mm diameter

Brakes - Rear Single 255 mm disc, Nissin single-piston floating caliper (ABS available)

Tyres - Front 110/80 ZR19

Tyres - Rear 150/70 ZR17

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
