Key Specifications
Engine
In-line four, four-stroke
Power
148.6 kW / 199.2 hp @ 13200rpm
Torque
117.6 Nm / 86.7 lb-ft @ 10800rpm
Fuel Capacity
16.00 litres

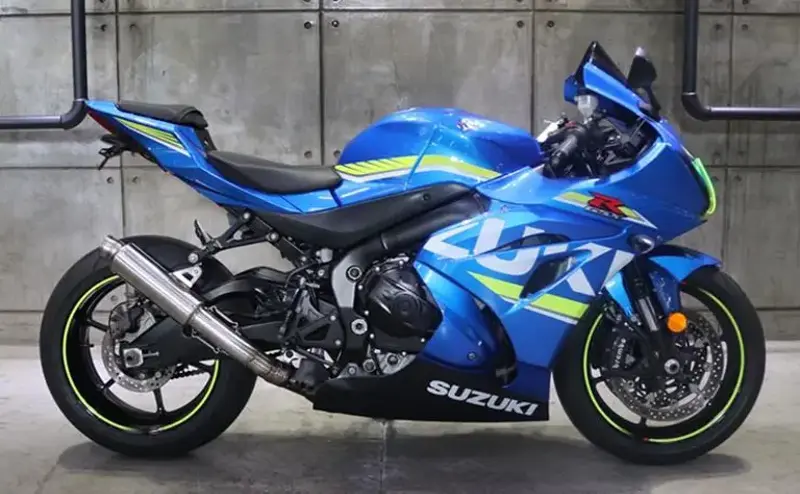

Full 2018 Suzuki GSX-R 1000 Specifications
Comments
Push-button selection of three performance settings.
Year
2018
Colours
Pearl Glacier White, Metallic Mat Black No. 2
Make Model
Suzuki GSX-R 1000
Warranty
12 month unlimited mileage limited warranty.
Width (mm)
705 mm
Width (in.)
27.8 inches
Wheelbase (mm)
1,485 mm
Wheelbase (in.)
58.5 inches
Seat Height (mm)
825 mm
Seat Height (in.)
32.5 inches
Length (mm)
2,075 mm
Length (in.)
81.7 inches
Height (mm)
1,145 mm
Height (in.)
45.1 inches
Ground Clearance (mm)
130 mm
Ground Clearance (in.)
5.1 inches
Seat Height
825 mm / 32.5 in
Wheelbase
1404 mm / 55.5 in
Ground Clearance
130 MM / 5.1 in
Height
1150mm / 45.3 in
Length
2075 mm / 81.7in
Width
710 mm / 28 in
Wet Weight (lbs.)
440.9 pounds
Wet Weight (kg)
200.0 kg
Fuel Capacity (l)
16.00 litres
Fuel Capacity (gal.)
4.23 gallons
Fuel Capacity
16 Litres / 4.2 US gal
Wet Weight
201 kg / 445 lbs
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
In-line four, four-stroke
Bore x Stroke (mm)
76.0 x 55.1 mm
Bore x Stroke (in,)
3.0 x 2.2 inches
Displacement
998.6 cc / 60.9 cub. in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, TSCC
Fuel System
Injection
Bore x Stroke
76.0 x 55.1 mm
Compression Ratio
13.2:1
Cooling System
Liquid cooled
Engine Lubrication
Wet sump with oil cooler
Exhaust
Titanium
Fuel Induction
Suzuki Fuel Injection with Ride-by-Wire throttle bodies
Ignition
Electronic ignition Transistorized
Lubrication
Wet sump
Starter
Electric
Valve System
4
Clutch
Wet, multi-plate type
Final Drive
Chain, RK525GSH
Gearbox
6-speed
Primary Drive
Chain drive, #525
Transmission / Drive
6-speed constant mesh
Wheel Travel - Front (in.)
4.7 inches
Wheel Travel - Front (mm)
120 mm
Wheel Travel - Rear (in.)
5.1 inches
Wheel Travel - Rear (mm)
130 mm
Frame Type
Aluminum
Suspension - Front
43mm Showa Big Piston inverted telescopic forks, coil spring, oil damped
Suspension - Rear
Link type, single shock, coil spring, oil damped
Rake
23.2°
Seat
Optional single seat.
Trail
94 mm / 3.7 in
Wheel Travel - Front
125mm / 4.9 in.
Wheel Travel - Rear
130mm / 5.1 in.
Instrumentation
LCD
Lighting system
LED headlight
Brakes - Front Diameter (in.)
12.2 inches
Brakes - Front Diameter (mm)
310 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Rear Diameter (mm)
220 mm
Brakes - Front
2 x 320mm Discs radial mount Brembo 4-piston calipers
Brakes - Rear
Single 220mm disc, Nissin, 1-piston
Tyres - Front
120/70ZR17M/C (58W), tubeless
Tyres - Rear
190/55ZR17M/C (73W), tubeless
