Key Specifications
Power
127 kW / 173 hp @ 9250 rpm
Torque
140 Nm / 14.3 kgf-m / 103 lb-ft @ 8250 rpm
Fuel Capacity
24.00 litres

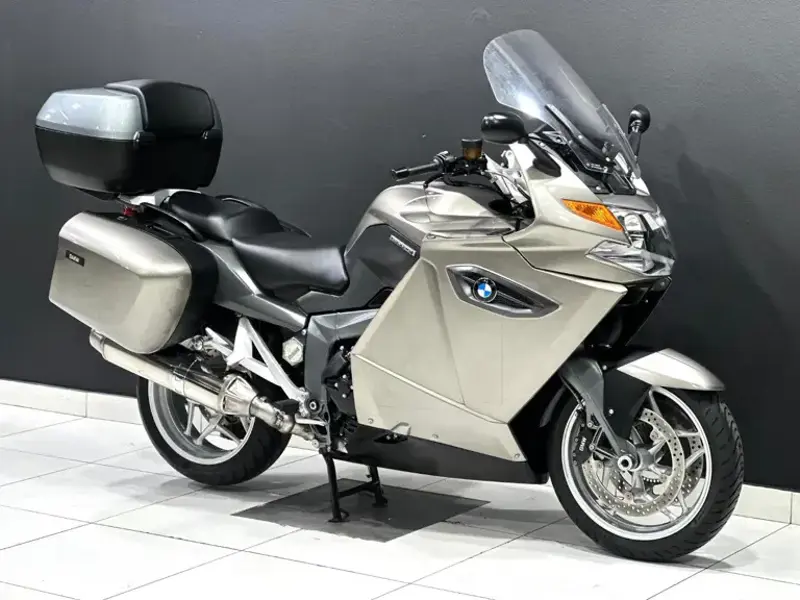

Full 2009 BMW K 1300GT Specifications
Year
2009
Colours
Beige, blue, red
Make Model
BMW K 1300GT
Width (mm)
965 mm
Width (in.)
38.0 inches
Wheelbase (mm)
1,572 mm
Wheelbase (in.)
61.9 inches
Seat Heigth -Alternate (mm)
840 mm
Seat Heigth -Alternate (in.)
33.1 inches
Seat Height (mm)
800 mm
Seat Height (in.)
31.5 inches
Length (mm)
2,318 mm
Length (in.)
91.3 inches
Height (mm)
1,438 mm
Height (in.)
56.6 inches
Seat Height
820 - 840 mm / 32.3 - 33.1 in (low seat 800- 820 mm / 31.5 - 32.3 in)
Wet Weight (lbs.)
634.9 pounds
Wet Weight (kg)
288.0 kg
Fuel Capacity (l)
24.00 litres
Fuel Capacity (gal.)
6.34 gallons
Dry Weight (lbs.)
562.2 pounds
Dry Weight (kg)
255
Fuel Capacity
19 L / 5.0 US gal
Wet Weight
255 kg / 562 lbs
Stroke
4
Fuel Reserve (l)
4.00 litres
Fuel Reserve (gal.)
1.06 gallons
Fuel Control
DOHC
Engine Type
In-line four
Displacement (ci)
78.90 cubic inches
Displacement (cc)
1293.00 cc
Bore x Stroke (mm)
80.0 x 64.3 mm
Bore x Stroke (in,)
3.1 x 2.5 inches
Displacement
1298 cc / 79.2 cu in.
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Fuel System
Injection. Electronic intake pipe injection/digital engine management including knock sensor (BMS-K)
Bore x Stroke
80 x 64.3 mm / 3.15 x 2.53"
Compression Ratio
13.0:1
Cooling System
Liquid cooled
Exhaust
Closed-loop 3-way catalytic converter, emission standard EU-3
Exhaust management
Fully controlled three-way catalyst
Fuel Consumption
6.2 L/100 km 16.1 km/l / 37.9 US mpg
Fuel Induction
Electronic fuel injection, Digital Motor Electronics with integrated knock control (BMS-K)
Starter
Electric
Valve System
4
Clutch
Multiple-plate clutch in oil bath, hydraulically operated
Final Drive
Shaft
Gear Ratios
1st 2.398 / 2nd 1.871 / 3rd 1.525 / 4th 1.296 / 5th 1.143 / 6th 1.015:1
Gearbox
6-speed
Transmission / Drive
6 Speed
Trail (in.)
4.4 inches
Trail (mm)
112 mm
Wheel Travel - Front (in.)
4.5 inches
Wheel Travel - Front (in.)
4.5 inches
Wheel Travel - Front (mm)
115 mm
Wheel Travel - Front (mm)
115 mm
Wheel Travel - Rear (in.)
5.3 inches
Wheel Travel - Rear (mm)
135 mm
Frame Type
Bridge frame, aluminium, load-bearing engine
Suspension - Front
BMW Motorrad Duolever; central spring strut, Paralever; central spring strut with lever system
Suspension - Rear
Cast aluminium single swing arm with BMW Motorrad, spring pre-tension with infinite hydraulic adjustment
Rake
29.4°
Wheel Travel - Front
115 mm / 4.5 in.
Wheel Travel - Rear
135 mm / 5.3 in
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front Diameter (mm)
320 mm
Brakes - Rear Diameter (in.)
11.6 inches
Brakes - Rear Diameter (mm)
294 mm
Brakes - Front
2 x ∅320mm discs, 4 piston calipers
Brakes - Rear
Single ∅265mm disc, 2 piston caliper
Tyres - Front
120/70 ZR17
Tyres - Rear
180/55 ZR17
