Key Specifications
Engine
Single cylinder, four-stroke
Power
25 kW / 34 hp @ 9250 rpm
Torque
28 Nm / 20.7 ft-lb @ 7500 rpm
Weight
164 kg / 361.5 lbs
Fuel Capacity
10.98 litres

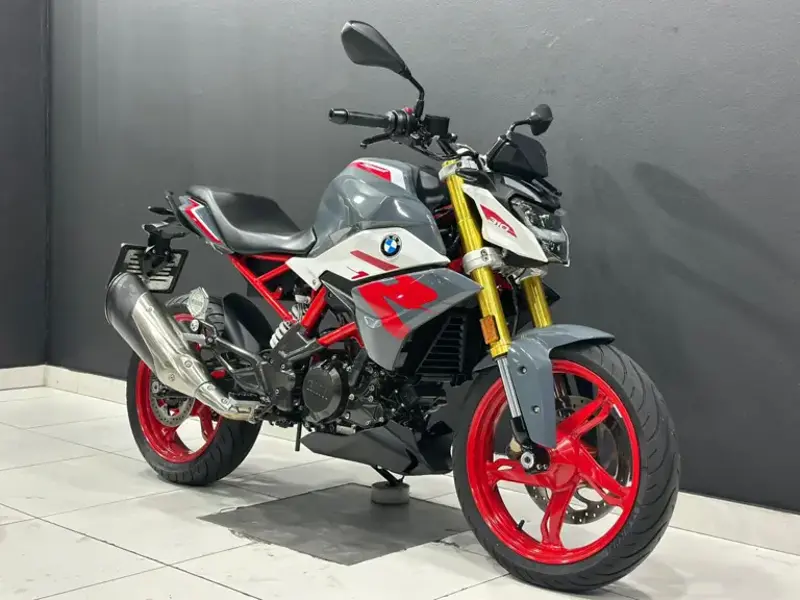

Full 2022 BMW G 310R Specifications
Year
2022
Colours
Limestone Metallic, Cosmic Black, Vibrant Kyanite Blue Metallic
Make Model
BMW G 310R
Warranty
3-years or 36,000 miles warranty
Width (mm)
849 mm
Width (in.)
33.4 inches
Wheelbase (mm)
1380 mm
Wheelbase (in.)
54.3 inches
Seat Height (mm)
785 mm
Seat Height (in.)
30.9 inches
Height (in.)
42.5 inches
Height (mm)
1080 mm
Length (in.)
78.9 inches
Length (mm)
2005 mm
Seat Height
785 mm / 30.9 in OA low seat: 770 mm / 30.3 in OE high seat: 800 mm / 31.4 in
Wheelbase
1380 mm / 54.3 in
Height
1080 mm / 42.5 in
Length
2005 mm / 78.9 in
Width
849 mm / 33.4 in
Oil Capacity (l)
1.70 litres
Oil Capacity (Quarts)
1.8 US quarts
Fuel Capacity (l)
10.98 litres
Fuel Capacity (gal.)
2.90 US gallons
Dry Weight (lbs.)
348.3 pounds
Dry Weight (kg)
158
Wet Weight (kg)
164.2 kg
Wet Weight (lbs.)
362.0 pounds
Fuel Capacity
11 Litres / 2.9 US gal
Wet Weight
164 kg / 361.5 lbs
Fuel Reserve (l)
1.00 litres
Fuel Reserve (gal.)
0.26 US gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
Single cylinder, four-stroke
Displacement (ci)
19.10 cubic inches
Displacement (cc)
313.0 cc
CO2
77.3 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
80.0 x 62.1 mm
Bore x Stroke (in,)
3.1 x 2.4 inches
Displacement
313 cc / 19.1 cu in
Engine Detail
Single cylinder, DOHC and cam followers, 4 valves
Fuel System
Injection. Electric throttle Ride by wire
Bore x Stroke
80 x 62.1 mm
Compression Ratio
10.9:1
Cooling System
Liquid Cooled
Emissions
Closed-loop 3-way catalytic converter, emission standard EU-5
Engine Lubrication
Wet sump
Fuel Consumption
3.33 litres/100 km (30.0 km/l or 70.64 mpg)
Fuel Induction
Electronic fuel injection
Idle Speed
1600 +/- 100 RPM
Spark Plug
NGK LMAR9D-J
Starter
Electric
Valve System
4
Battery Capacity
12 V / 8 Ah, maintenance-free
Clutch
Multi-disc oil bath (anti-hopping) with self-reinforcement
Final Drive
Endless X-ring chain with shock damping in rear wheel hub
Gearbox
6-speed
Primary Drive
X-ring chain with shock absorption in the real wheel hub
Sprocket
16/40 (front/rear)
Transmission / Drive
6-Speed, constant-mesh
Fork Tube Size (in.)
1.6 inches
Fork Tube Size (mm)
41 mm
Trail (in.)
4.5 inches
Trail (mm)
114 mm
Wheel Travel - Front (in.)
5.5 inches
Wheel Travel - Front (mm)
140 mm
Wheel Travel - Rear (in.)
5.2 inches
Wheel Travel - Rear (mm)
132 mm
Frame Type
Tubular space frame
Suspension - Front
41mm USD telescopic fork
Suspension - Rear
Cast aluminium dual swing arm, central spring strut, spring pre-load adjustable
Rake
25.1°
Steering Head Angle
64.9°
Trail
114 mm / 4.48 in
Wheel Travel - Front
140 mm / 5.5 in
Wheel Travel - Rear
131 mm / 5.5 in
Alternator
Three-phase alternator with 308 W
Lighting system
LED headlight, tail light and LED indicators
Brakes - Front
Single 300mm disc, 4-piston fixed caliper, radially bolted
Brakes - Rear
Single 240mm disc, single-piston floating caliper
ABS
BMW Motorrad ABS
Brake Fluid Type
DOT4
Rims - Front
3.0 x 17
Rims - Rear
4.0 x 17
Tyre Pressure - Front
32 PSI (2.2 Bar or 220 kPa)
Tyre Pressure - Rear
33 PSI (2.3 Bar or 230 kPa)
Tyres - Front
110/70 R17
Tyres - Rear
150/60 R17
Wheels
5-Spoke, cast aluminium
