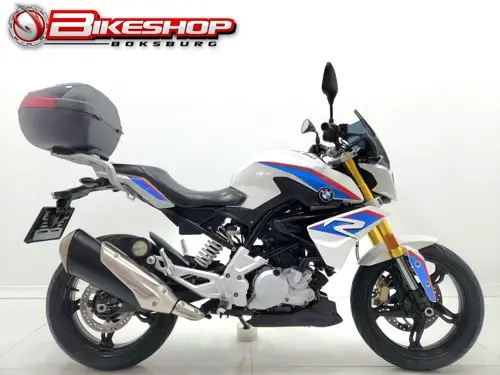

BMW G 310R Specs

2017 - 2023 • 7 variants

The BMW G 310R is a sport motorcycle produced from 2017 to 2023 across 7 variants. It is powered by a single cylinder, dohc, 4 valves displacing 313.0 cc. Peak power output is 34 hp. Peak torque is 28 Nm.

About the BMW G 310R

As a Enduro / Off-Road motorcycle, the BMW G 310R was offered from the 2016 through to the 2023 model year. The technical data presented here covers the complete specification range for this model, including all engine variants, chassis dimensions, suspension travel, brake specifications, and weight figures. This information is useful for prospective buyers, current owners, and mechanics working on the BMW G 310R.

AdSense - 728Ã90

BMW G 310R by Year

2023 BMW G 310R View specs →

2022 BMW G 310R View specs →

2021 BMW G 310R View specs →

2020 BMW G 310R View specs →

2019 BMW G 310R View specs →

2018 BMW G 310R View specs →

2017 BMW G 310R View specs →

Spec Evolution

How key specs changed across production years.

Specification	2016	2017	2018	2019	2020	2021	2022	2023
Frame Type	Tubular steel frame in grid structure with bolt-on rear frame	Tubular steel frame in grid structure with bolt-on rear frame	Tubular steel frame in grid structure with bolt-on rear frame	Tubular steel frame in grid structure with bolt-on rear frame	Tubular steel frame in grid structure with bolt-on rear frame	Tubular space frame	Tubular space frame	Tubular space
Dry Weight	-	-	-	-	158.5 kg / 349.4 lbs	158.5 kg / 349.4 lbs	158 kg / 348.3 lbs ↓	158 kg / 348.3 lbs
Seat Height	785 mm / 30.9 in	785 mm / 30.9 in	785 mm / 30.9 in	785 mm / 30.9 in	785 mm / 30.9 in	785 mm / 30.9 in OA low seat: 770 mm / 30.3 in OE high seat: 800 mm / 31.4 in	785 mm / 30.9 in OA low seat: 770 mm / 30.3 in OE high seat: 800 mm / 31.4 in	785 mm / 30.9 in.
Wheelbase	1374 mm / 54.1 in	1374 mm / 54.1 in	1374 mm / 54.1 in	1374 mm / 54.1 in	1374 mm / 54.1 in	1380 mm / 54.3 in ↑	1380 mm / 54.3 in	1380 mm / 54.3 in.
Brakes - Front	Single 300mm disc	Single 300mm disc, ABS	Single 300mm disc, ABS	Single 300mm disc, ABS	Single 300mm disc	Single 300mm disc, 4-piston fixed caliper, radially bolted	Single 300mm disc, 4-piston fixed caliper, radially bolted	Single disc. 4-piston fixed caliper, radially bolted. ABS. ↓
Engine Detail	Single cylinder, DOHC, 4 valves	Single cylinder, DOHC, 4 valves	Single cylinder, DOHC, 4 valves	Single cylinder, DOHC, 4 valves	Single cylinder, DOHC, 4 valves	Single cylinder, DOHC and cam followers, 4 valves	Single cylinder, DOHC and cam followers, 4 valves	-
Brakes - Rear	Single 240mm disc	Single 240mm disc, ABS	Single 240mm disc, ABS	Single 240mm disc, ABS	Single 240mm disc	Single 240mm disc, single-piston floating caliper	Single 240mm disc, single-piston floating caliper	Single disc. Single-piston floating caliper. ABS.
Fuel Capacity	11 Litres / 2.9 US gal	11 Litres / 2.9 US gal	11 Litres / 2.9 US gal	11 Litres / 2.9 US gal	11 Litres / 2.9 US gal	11 Litres / 2.9 US gal	11 Litres / 2.9 US gal	10.98 litres / 2.90 US gallons ↓
Suspension - Front	41mm Telescopic fork	41mm Telescopic fork	41mm Telescopic fork	41mm Telescopic fork	41mm Telescopic fork	41mm USD telescopic fork	41mm USD telescopic fork	Inverted telescopic fork, Ø 41mm
Top Speed	145 km/h / 90 mph	145 km/h / 90 mph	145 km/h / 90 mph	145 km/h / 90 mph	143.0 km/h / 88.9 mph ↓	143.0 km/h / 88.9 mph	143.0 km/h / 88.9 mph	143.0 km/h / 88.9 mph
Suspension - Rear	Aluminium swinging arm in conjunction with a directly mounted spring strut	Aluminium swinging arm in conjunction with a directly mounted spring strut	Aluminium swinging arm in conjunction with a directly mounted spring strut	Aluminium swinging arm in conjunction with a directly mounted spring strut	Aluminium swinging arm in conjunction with a directly mounted spring strut	Cast aluminium dual swing arm, central spring strut, spring pre-load adjustable	Cast aluminium dual swing arm, central spring strut, spring pre-load adjustable	Cast aluminum dual swing arm, central spring strut, spring pre-load adjustable
Fuel System	Injection. Electronic intake pipe injection/BMW engine management, twin spark ignition	Injection. Electronic fuel injection, BMS-E2	Injection. Electronic fuel injection, BMS-E2	Injection. Electronic fuel injection, BMS-E2	Injection	Injection	Injection. Electric throttle Ride by wire	Injection
Colours	Deep black, Aura white, Strato blue	Strato black, Pearl white metallic, Strato blue	Cosmic Black, Strato Blue, Pearl White Metallic Motorsport	Style HP, Cosmic Black One, Racing Red	HP Motorsport, Cosmic Black, Racing Red	Pearl White Metallic, Cosmic Black, Racing Red	Limestone Metallic, Cosmic Black, Vibrant Kyanite Blue Metallic	Racing Red, Cosmic Black, Polar White/Racing Blue Metallic
ABS	Standard	-	-	-	Standard	BMW Motorrad ABS	BMW Motorrad ABS	-
Alternator	330W	330W	330W	330W	330W	Three-phase alternator with 308 W ↓	Three-phase alternator with 308 W	-
Battery Capacity	12V, 8 Ah	12V, 8 Ah	12V, 8 Ah	12V, 8 Ah	12V, 8 Ah	12 V / 8 Ah, maintenance-free	12 V / 8 Ah, maintenance-free	-
Clutch	Wet, multi-plate	Wet, multi-plate	Wet, multi-plate	Wet, multi-plate	Wet multi-plate	Multi-disc oil bath (anti-hopping) with self-reinforcement	Multi-disc oil bath (anti-hopping) with self-reinforcement	Multi-disc oil bath (anti-hopping) with self-reinforcement
Bore x Stroke	80 x 62 mm	80 x 62 mm	80 x 62 mm	80 x 62 mm	80 x 62 mm	80 x 62.1 mm	80 x 62.1 mm	-
Final Drive	Chain, O-ring	Chain, O-ring	Chain, O-ring	Chain, O-ring	Chain, O-ring	Endless X-ring chain with shock damping in rear wheel hub	Endless X-ring chain with shock damping in rear wheel hub	Chain (final drive)
Height	-	1,080 mm / 42.5 in.	1,080 mm / 42.5 in.	1080 mm / 42.5 in. ↑	1080 mm / 42.5 in.	1080 mm / 42.5 in	1080 mm / 42.5 in	1080 mm / 42.5 in.
Rims	Cast aluminium	Cast aluminium	Cast aluminium	Cast aluminium	-	Cast aluminum wheels	-	-
Length	1988 mm / 78.3 in	1988 mm / 78.3 in	1988 mm / 78.3 in	1988 mm / 78.3 in	1988 mm / 78.3 in	2005 mm / 78.9 in ↑	2005 mm / 78.9 in	2005 mm / 78.9 in.
Wet Weight	158.5 kg / 349 lbs	158.5 kg / 349 lbs	158.5 kg / 349 lbs	158.5 kg / 349 lbs	158.5 kg / 349 lbs	164 kg / 361.5 lbs ↑	164 kg / 361.5 lbs	164.2 kg / 362.0 lbs ↑
Compression Ratio	10.6:1	10.6:1	10.6:1	10.6:1	10.6:1	10.9:1 ↑	10.9:1	10.9:1
Emissions	Closed-loop 3-way catalytic converter, emission standard EU-3	Closed-loop three-way catalytic converter, emission standard EU-4 ↓	Closed-loop three-way catalytic converter, emission standard EU-4	Closed-loop three-way catalytic converter, emission standard EU-4	Euro 4 ↑	Closed-loop 3-way catalytic converter, emission standard EU-5 ↓	Closed-loop 3-way catalytic converter, emission standard EU-5	Closed-loop 3-way catalytic converter, emission standard EU-4
Engine Lubrication	Dry sump	Dry sump	Dry sump	Dry sump	-	-	Wet sump	Wet sump
Tyres - Front	110/70 R17	110/70 R17	110/70 R17	110/70 R17	110/70 R17	110/70 R17	110/70 R17	110/70-R17
Gearbox	5-speed	6-speed ↑	6-speed	6-speed	-	-	6-speed	6-speed
Width	896 mm / 35.3 in	896 mm / 35.3 in	896 mm / 35.3 in	896 mm / 35.3 in	896 mm / 35.3 in	849 mm / 33.4 in ↓	849 mm / 33.4 in	849 mm / 33.4 in.
Primary Drive	-	Endless O-ring chain with shock damping in rear wheel hub	Endless O-ring chain with shock damping in rear wheel hub	Endless O-ring chain with shock damping in rear wheel hub	-	-	X-ring chain with shock absorption in the real wheel hub	X-ring chain with shock absorption in the real wheel hub
Rake	-	25.1°	25.1°	25.1°	-	-	25.1°	25.1°
Wheels	5-Spoke, light alloy die-cast	5-Spoke, light alloy die-cast	5-Spoke, light alloy die-cast	5-Spoke, light alloy die-cast	5-Spoke, light alloy die-cast	5-Spoke, cast aluminium	5-Spoke, cast aluminium	-
Exhaust valve diameter	27.2 mm	∅27.2 mm	∅27.2 mm	∅27.2 mm	27.2 mm	-	-	-
Fuel Consumption	3.33 L/100 km / 30 km/l / 70.6 US mpg	3.33 L/100 km / 30 km/l / 70.6 US mpg	3.33 L/100 km / 30 km/l / 70.6 US mpg	3.33 L/100 km / 30 km/l / 70.6 US mpg	3.33 litres/100 km (30.0 km/l or 70.64 mpg)	3.33 litres/100 km (30.0 km/l or 70.64 mpg)	3.33 litres/100 km (30.0 km/l or 70.64 mpg)	3.33 litres/100 km (30.0 km/l or 70.64 mpg)
Steering Head Angle	64.9º	64.9º	64.9º	64.9º	64.9°	64.9°	64.9°	-
Fuel Induction	BMS-E2	BMS-E2	BMS-E2	BMS-E2	BMS-E2	Electronic fuel injection	Electronic fuel injection	-
Fuel Reserve	-	-	1.00 litres / 0.26 gallons	1.00 litres / 0.26 US gallons	-	1.00 litres / 0.26 US gallons	1.00 litres / 0.26 US gallons	1.00 litres / 0.26 US gallons
Trail	102.3 mm / 4.02 in	102.3 mm / 4.02 in	102.3 mm / 4.02 in	102.3 mm / 4.02 in	102.3 mm / 4.02 in	114 mm / 4.48 in ↑	114 mm / 4.48 in	114 mm / 4.5 in.
Wheel Travel - Front	140 mm / 5.5 in	140 mm / 5.5 in	140 mm / 5.5 in	140 mm / 5.5 in	140 mm / 5.5 in	140 mm / 5.5 in	140 mm / 5.5 in	140 mm / 5.5 in.
Max Power	25 kW / 34 hp @ 9500 rpm	25 kW / 34 hp @ 9500 rpm	25 kW / 34 hp @ 9500 rpm	25 kW / 34 hp @ 9500 rpm	25 kW / 34 hp @ 9500 rpm	25 kW / 34 hp @ 9250 rpm	25 kW / 34 hp @ 9250 rpm	-
Wheel Travel - Rear	131 mm / 5.5 in	131 mm / 5.5 in	131 mm / 5.5 in	131 mm / 5.5 in	131 mm / 5.5 in	131 mm / 5.5 in	131 mm / 5.5 in	132 mm / 5.2 in. ↑
Max Torque	28 Nm / 2.86 kgf-m / 20.7 ft-lb @ 7500 rpm	28 Nm / 2.86 kgf-m / 20.7 ft-lb @ 7500 rpm	28 Nm / 2.86 kgf-m / 20.7 ft-lb @ 7500 rpm	28 Nm / 2.86 kgf-m / 20.7 ft-lb @ 7500 rpm	28 Nm / 20.7 ft-lb @ 7500 rpm	28 Nm / 20.7 ft-lb @ 7500 rpm	28 Nm / 20.7 ft-lb @ 7500 rpm	28.0 Nm (2.9 kgf-m or 20.7 ft.lbs) @ 7500 Revolutions"
Power-to-Weight Ratio	-	-	-	-	0.2115 HP/kg	0.2115 HP/kg	0.2152 HP/kg	0.2152 HP/kg
Valve Diameter (Intake)	33.5 mm	∅33.5 mm	∅33.5 mm	∅33.5 mm	33.5 mm	-	-	-
