Key Specifications
Engine
Single cylinder, four-stroke
Power
25 kW / 34 hp @ 9500 rpm
Torque
28 Nm / 2.86 kgf-m / 20.7 ft-lb @ 7500 rpm
Weight
158.5 kg / 349 lbs
Fuel Capacity
2.91 gallons

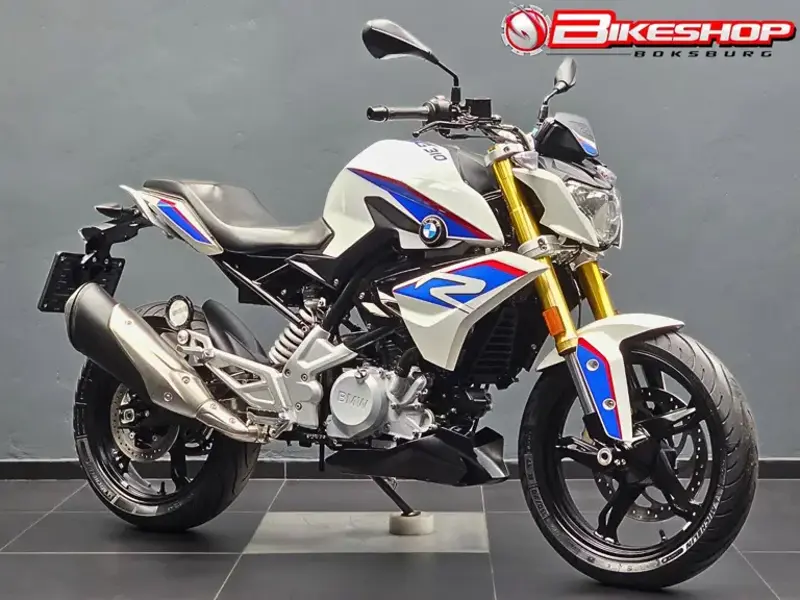

Full 2018 BMW G 310R Specifications
Year
2018
Colours
Cosmic Black, Strato Blue, Pearl White Metallic Motorsport
Make Model
BMW G 310R
Height (in.)
42.5 inches
Width (mm)
820 mm
Height (mm)
1,080 mm
Length (in.)
78.9 inches
Length (mm)
2,005 mm
Seat Height (in.)
30.9 inches
Seat Height (mm)
785 mm
Width (in.)
32.3 inches
Wheelbase (mm)
1,374 mm
Wheelbase (in.)
54.1 inches
Seat Height
785 mm / 30.9 in
Wheelbase
1374 mm / 54.1 in
Length
1988 mm / 78.3 in
Width
896 mm / 35.3 in
Fuel Capacity (gal.)
2.91 gallons
Fuel Capacity (l)
11.00 litres
Wet Weight (lbs.)
350.0 pounds
Wet Weight (kg)
158.8 kg
Fuel Capacity
11 Litres / 2.9 US gal
Max Load
345 kg / 761 lbs
Wet Weight
158.5 kg / 349 lbs
Fuel Reserve (l)
1.00 litres
Bore x Stroke (in,)
3.1 x 2.4 inches
Bore x Stroke (mm)
80.0 x 61.1 mm
Fuel Reserve (gal.)
0.26 gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
CO2
77.3 CO2 g/km. (CO2 - Carbon dioxide emission)
Displacement (cc)
313.00 cc
Displacement (ci)
19.10 cubic inches
Engine Type
Single cylinder, four-stroke
Displacement
313 cc / 19.1 cu in
Engine Detail
Single cylinder, DOHC, 4 valves
Fuel System
Injection. Electronic fuel injection, BMS-E2
Bore x Stroke
80 x 62 mm
Compression Ratio
10.6:1
Cooling System
Liquid Cooled
Emissions
Closed-loop three-way catalytic converter, emission standard EU-4
Engine Lubrication
Dry sump
Exhaust valve diameter
∅27.2 mm
Fuel Consumption
3.33 L/100 km / 30 km/l / 70.6 US mpg
Fuel Induction
BMS-E2
Starter
Electric
Valve Diameter (Intake)
∅33.5 mm
Valve System
4
Battery Capacity
12V, 8 Ah
Clutch
Wet, multi-plate
Final Drive
Chain, O-ring
Gear Ratios
1st 3.000 / 2 nd 2.063 / 3rd 1.588 / 4th 10286 / 5th 1.095 / 6th 0.955:1
Gearbox
6-speed
Primary Drive
Endless O-ring chain with shock damping in rear wheel hub
Primary Drive Ratios
3.083:1
Transmission / Drive
6-Speed, constant-mesh
Trail (in.)
4.0 inches
Trail (mm)
102 mm
Frame Type
Tubular steel frame in grid structure with bolt-on rear frame
Suspension - Front
41mm Telescopic fork
Suspension - Rear
Aluminium swinging arm in conjunction with a directly mounted spring strut
Rake
25.1°
Steering Head Angle
64.9º
Trail
102.3 mm / 4.02 in
Wheel Travel - Front
140 mm / 5.5 in
Wheel Travel - Rear
131 mm / 5.5 in
Brakes - Rear Diameter (mm)
240 mm
Brakes - Rear Diameter (in.)
9.4 inches
Brakes - Front Diameter (mm)
300 mm
Brakes - Front Diameter (in.)
11.8 inches
Brakes - Front
Single 300mm disc, ABS
Brakes - Rear
Single 240mm disc, ABS
Rims
Cast aluminium
Tyres - Front
110/70 R17
Tyres - Rear
150/60 R17
Wheels
5-Spoke, light alloy die-cast
Wheels - Front
3.0 x 17
Wheels - Rear
4.0 x 17
