Key Specifications
Engine
Single cylinder, four-stroke
Power
25 kW / 34 hp @ 9250 rpm
Torque
28 Nm / 20.7 ft-lb @ 7500 rpm
Weight
164 kg / 361.5 lbs
Fuel Capacity
2.91 US gallons

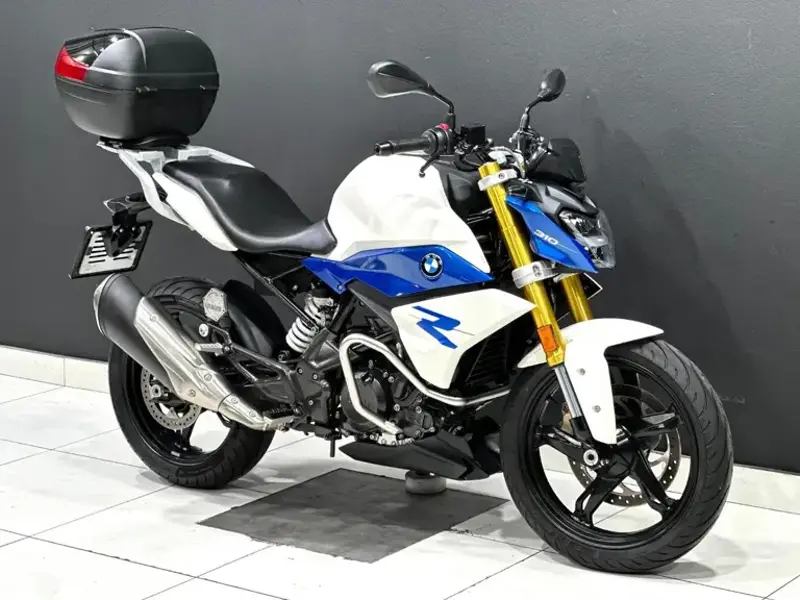

Full 2021 BMW G 310R Specifications
Year
2021
Colours
Pearl White Metallic, Cosmic Black, Racing Red
Make Model
BMW G 310R
Width (mm)
849 mm
Width (in.)
33.4 inches
Wheelbase (mm)
1380 mm
Wheelbase (in.)
54.3 inches
Seat Height (mm)
785 mm
Seat Height (in.)
30.9 inches
Length (mm)
2005 mm
Length (in.)
78.9 inches
Height (mm)
1080 mm
Height (in.)
42.5 inches
Seat Height
785 mm / 30.9 in OA low seat: 770 mm / 30.3 in OE high seat: 800 mm / 31.4 in
Wheelbase
1380 mm / 54.3 in
Height
1080 mm / 42.5 in
Length
2005 mm / 78.9 in
Width
849 mm / 33.4 in
Wet Weight (kg)
164
Dry Weight (kg)
158.5
Dry Weight (lbs.)
349.4 pounds
Fuel Capacity (gal.)
2.91 US gallons
Fuel Capacity (l)
11.00 litres
Fuel Capacity
11 Litres / 2.9 US gal
Wet Weight
164 kg / 361.5 lbs
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Fuel Reserve (gal.)
0.26 US gallons
Engine Type
Single cylinder, four-stroke
Fuel Reserve (l)
1.00 litres
Displacement (ci)
19.10 cubic inches
Displacement (cc)
313.0 cc
CO2
77.3 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
80.0 x 62.1 mm
Bore x Stroke (in,)
3.1 x 2.4 inches
Displacement
313 cc / 19.1 cu in
Engine Detail
Single cylinder, DOHC and cam followers, 4 valves
Fuel System
Injection
Bore x Stroke
80 x 62.1 mm
Compression Ratio
10.9:1
Cooling System
Liquid Cooled
Emissions
Closed-loop 3-way catalytic converter, emission standard EU-5
Fuel Consumption
3.33 litres/100 km (30.0 km/l or 70.64 mpg)
Fuel Induction
Electronic fuel injection
Starter
Electric
Battery Capacity
12 V / 8 Ah, maintenance-free
Clutch
Multi-disc oil bath (anti-hopping) with self-reinforcement
Final Drive
Endless X-ring chain with shock damping in rear wheel hub
Transmission / Drive
6-Speed, constant-mesh
Frame Type
Tubular space frame
Suspension - Front
41mm USD telescopic fork
Suspension - Rear
Cast aluminium dual swing arm, central spring strut, spring pre-load adjustable
Steering Head Angle
64.9°
Trail
114 mm / 4.48 in
Wheel Travel - Front
140 mm / 5.5 in
Wheel Travel - Rear
131 mm / 5.5 in
Alternator
Three-phase alternator with 308 W
Brakes - Front
Single 300mm disc, 4-piston fixed caliper, radially bolted
Brakes - Rear
Single 240mm disc, single-piston floating caliper
ABS
BMW Motorrad ABS
Rims
Cast aluminum wheels
Rims - Front
3.0 x 17
Rims - Rear
4.0 x 17
Tyres - Front
110/70 R17
Tyres - Rear
150/60 R17
Wheels
5-Spoke, cast aluminium
