Key Specifications
Engine
Single cylinder, four-stroke
Power
25 kW / 34 hp @ at 9500
Torque
28 Nm / 2.86 kgf-m / 20.7 ft-lb @ 7500 rpm
Weight
175 kg / 385.8 lbs
Fuel Capacity
2.91 gallons

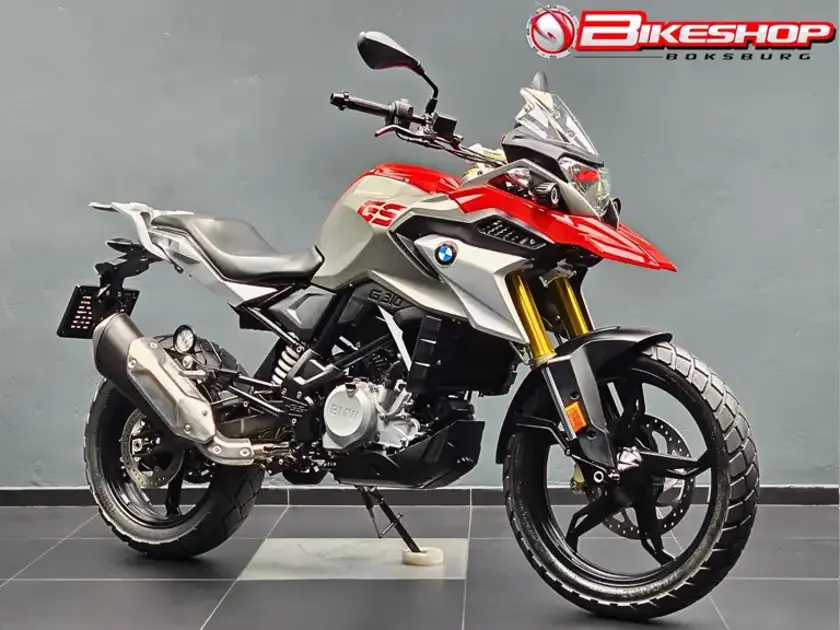

Full 2018 BMW G 310GS Specifications
Year
2018
Colours
Cosmic Black, Racing Red, Pearl White Metallic Motorsport
Make Model
BMW G 310GS
Width (mm)
880 mm
Width (in.)
34.6 inches
Wheelbase (mm)
1,420 mm
Wheelbase (in.)
55.9 inches
Height (in.)
42.5 inches
Height (mm)
1,080 mm
Length (in.)
81.7 inches
Length (mm)
2,075 mm
Seat Height (in.)
32.9 inches
Seat Height (mm)
835 mm
Seat Height
835 mm / 32.9 in 820 mm / 32.2 in Low Seat 850 mm / 33.5 in Comfort Seat
Wheelbase
1420 mm / 55.9 in
Height
1230 mm / 48.2 in (excl. mirrors)
Length
2075 mm / 81.7 in
Width
878 mm / 34.6 in (incl. mirrors)
Fuel Capacity (gal.)
2.91 gallons
Fuel Capacity (l)
11.00 litres
Wet Weight (kg)
169.5 kg
Wet Weight (lbs.)
373.7 pounds
Fuel Capacity
11 Litres / 2.9 US gal
Wet Weight
175 kg / 385.8 lbs
Fuel Reserve (l)
1.00 litres
Fuel Reserve (gal.)
0.26 gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
Single cylinder, four-stroke
Displacement (ci)
19.10 cubic inches
Displacement (cc)
313.00 cc
CO2
77.3 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
80.0 x 62.1 mm
Bore x Stroke (in,)
3.1 x 2.4 inches
Displacement
313 cc / 19.1 cu-in
Engine Detail
Four stroke, rRearward-canted single-cylinder, DOHC, 4 valves
Fuel System
Injection. Electronic fuel injection, BMS-E2.
Bore x Stroke
80 x 62.1 mm
Compression Ratio
10.6:1
Cooling System
Liquid cooled
Emissions
Euro 4
Engine Lubrication
Wet sump
Exhaust
Single, closed-loop 3-way catalytic converter
Fuel Consumption
3.33 litres/100 km (30.0 km/l or 70.64 mpg)
Fuel Induction
Electronic fuel injection, BMS-E2
Ignition
Electronic
Lubrication
Wet sump
Starter
Electric
Valve System
4
Battery Capacity
12 V / 8 Ah, Maintenance free
Clutch
Multiple-discs in oil bath, mechanically operated
Final Drive
Chain
Gearbox
6-speed
Primary Drive
Endless Z-ring chain, shock damping in rear wheel hub
Transmission / Drive
Synchromesh 6-speed transmission, integrated in the motor housing
Trail (in.)
3.9 inches
Trail (mm)
98 mm
Wheel Travel - Front (in.)
7.1 inches
Wheel Travel - Front (mm)
180 mm
Wheel Travel - Rear (in.)
7.1 inches
Wheel Travel - Rear (mm)
180 mm
Frame Type
Tubular steel frame with bolted rear frame
Suspension - Front
41mm Upside-down fork
Suspension - Rear
Solid die-cast aluminum swingarm, directly hinged monoshock, adjustable preload
Rake
26.7°
Steering Head Angle
63.3°
Trail
98 mm / 3.86 in
Wheel Travel - Front
180 mm / 7.1 in
Wheel Travel - Rear
180 mm / 7.1 in
Brakes - Front Diameter (in.)
11.8 inches
Brakes - Front Diameter (mm)
300 mm
Brakes - Rear Diameter (in.)
9.4 inches
Brakes - Rear Diameter (mm)
240 mm
Brakes - Front
Single 300mm disc, 4-piston fixed caliper, radially bolted
Brakes - Rear
Single 240mm disc, single-piston floating caliper
ABS
BMW Motorrad ABS
Tyres - Front
110/80 - R19
Tyres - Rear
150/70 - R17
Wheels - Front
Cast aluminium, 5-spoke, 2.50 x 19
Wheels - Rear
Cast aluminium, 5-spoke, 4.0 x 17
