Key Specifications
Engine
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Power
147.1 kW / 200.0 PS @ 13500 rpm
Torque
112.4 Nm / 11.5 kg-m @ 11500 rpm
Fuel Capacity
17 Liters / 4.5 gal

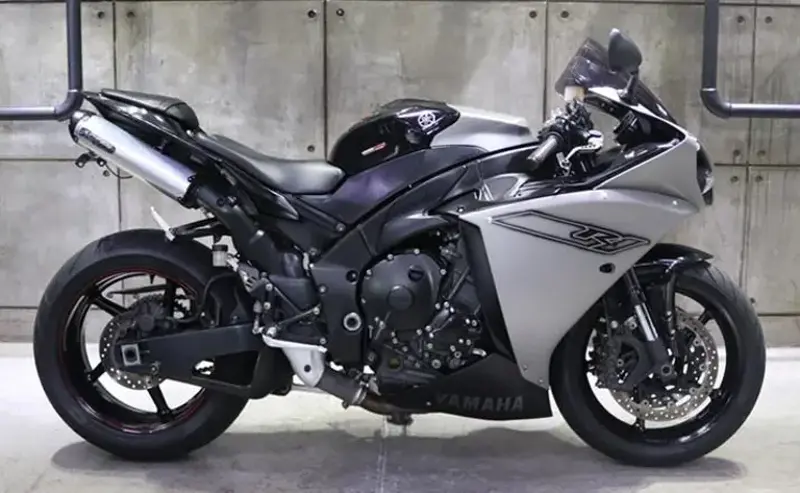

Full 2015 Yamaha YZF 1000 R1 Specifications
Year
2015
Make Model
Yamaha YZF 1000 R1
Seat Height
830 mm / 32.7 in
Wheelbase
1419 mm / 55.9 in
Ground Clearance
135mm / 5.3 in
Height
1150 mm / 45.3 in
Length
2054 mm / 80.9 in
Width
690 mm / 27.2 in
Wet Weight (kg)
199
Fuel Capacity
17 Liters / 4.5 gal
Wet Weight
199 kg / 439 lbs
Displacement
998 cc / 60.9 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Bore x Stroke
79.0 x 50.9 mm
Compression Ratio
13.0:1
Cooling System
Liquid cooled
Engine Management
YCC-T, YCC-I, PWR, TCS, LCS, LIF, SCS, QSS, CCU & SCU
Fuel Induction
Fuel Injection with YCC-T and YCC-I
Ignition
TCI: Transistor Controlled Ignition
Lubrication
Wet sump
Starter
Electric
Clutch
Wet, Multiple Disc
Final Drive
"O" ring chain
Transmission / Drive
6-speed w/multiplate slipper clutch
Suspension - Front
43mm KYBø inverted fork; fully adjustable
Suspension - Rear
KYB® Single shock w/piggyback reservoir, 4-way adjustable
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
120 mm / 4.7 in
Brakes - Front
2x 320mm discs 4 piston calipers, UBS ABS
Brakes - Rear
Single 220mm disc 1 piston caliper, UBS ABS
Tyres - Front
120/70 ZR17
Tyres - Rear
190/55 ZR17
