2016 Yamaha YZF 1000 R1 Specifications

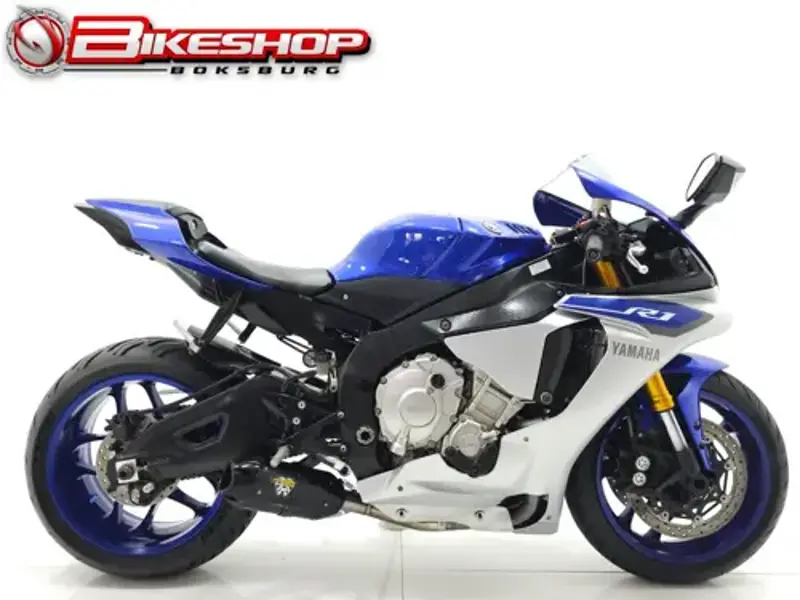

Name: 2016 Yamaha YZF 1000 R1
Brand: Yamaha

Sport • Specs last verified 13 July 2026

No images available

Tap to enlarge

2016 Yamaha YZF 1000 R1 Overview

Yamaha YZF 1000 R1 is a sport motorcycle, displacing 998 cc. Power comes from a Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder engine, a compression ratio of 13.0:1. On the performance side, it delivers 147.1 kW @ 13500 rpm of peak power and 112.4 Nm @ 11500 rpm of torque. On the road, the 2016 YZF 1000 R1 tips the scales at 199 kg, carries a 17-litre fuel tank, offers a seat height of 830 mm and spans a 1419 mm wheelbase. The full 2016 Yamaha YZF 1000 R1 spec sheet below covers every technical detail, from suspension travel to tyre sizes.

2016 YZF 1000 R1 - Pros & Cons

Strengths

Strong power output: With 147.1 kW @ 13500 rpm and 112.4 Nm @ 11500 rpm of torque on tap, the YZF 1000 R1 is no slouch for its class.
Fuel injection: Fuel injection means consistent cold starts and clean throttle response without the fussiness of a carbureted setup.

Considerations

Tall seat height: At 830 mm, shorter riders will likely be on tiptoes at a standstill - worth sitting on one before you buy.
Chain final drive upkeep: Budget time for routine chain maintenance - it's cheap to replace but needs consistent attention to avoid premature sprocket wear.

Wear Points & Servicing Notes

Cooling system servicing

YZF 1000 R1's Liquid cooled setup is low-maintenance provided the coolant interval is kept - old, acidic coolant is the main cause of long-term corrosion in the water passages.

Fuelling & injector care

The fuel injectionwith YCC-T and YCC-I on the YZF 1000 R1 needs little beyond good fuel and periodic use of an injector-cleaner additive - no jetting or float-bowl maintenance to worry about.

Brake disc and pad wear

Braking up front comes from 2x 320mm discs 4 piston calipers, UBS ABS - solid stopping power, with disc and pad wear best checked on the same schedule as tyre changes.

Suspension condition on used examples

The YZF 1000 R1's suspension runs 43mm KYBø inverted fork; fully adjustable at the front. The rear uses KYB® Single shock w/piggyback reservoir, 4-way adjustable. Fork-seal condition and rear linkage play are the two things worth checking before buying used.

Final drive maintenance

The YZF 1000 R1 uses chain final drive, which is cheap to replace but needs regular cleaning, lubrication and tension checks to get a full service life out of the sprockets.

YZF 1000 R1 - Buying & Maintenance Guide

What to check before buying

Before handing over money for a used 2016 Yamaha YZF 1000 R1, cover the fundamentals: service book and oil change history, chain and sprocket wear, and any sign of oil weeping around the casings. Cold-starting it yourself tells you a lot - a healthy YZF 1000 R1 should catch quickly and settle into a smooth idle.

Oil and filter changes

Nothing protects a YZF 1000 R1's engine like disciplined oil changes - stay on the manufacturer's schedule (roughly every 6,000 km or annually). Match the viscosity grade to what the owner's manual specifies, not what's cheapest.

Fuel system care

Fuel injection on the YZF 1000 R1 needs little attention beyond decent fuel and an occasional system-cleaner additive. Anything left standing for three months or more should have its fuel drained and replaced before it varnishes the injectors.

2016 Yamaha YZF 1000 R1 - Frequently Asked Questions

What engine does the 2016 Yamaha YZF 1000 R1 have?

The 2016 Yamaha YZF 1000 R1 uses a Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder. engine with 998 cc of displacement. It is liquid cooled.

How much does the 2016 Yamaha YZF 1000 R1 weigh?

The 2016 Yamaha YZF 1000 R1 weighs 199 kg. This is the manufacturer's wet figure.

How much power does the 2016 Yamaha YZF 1000 R1 make?

The 2016 Yamaha YZF 1000 R1 produces 147.1 kW @ 13500 rpm of power and 112.4 Nm @ 11500 rpm of torque. These are peak figures.

What is the fuel tank capacity of the 2016 Yamaha YZF 1000 R1?

The 2016 Yamaha YZF 1000 R1 has a 17-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 283-340 km between stops.

Is the 2016 Yamaha YZF 1000 R1 suitable for shorter riders?

The 2016 Yamaha YZF 1000 R1 has a seat height of 830 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.

What brakes does the 2016 Yamaha YZF 1000 R1 have?

The 2016 Yamaha YZF 1000 R1 uses 2x 320mm discs 4 piston calipers, UBS ABS at the front and Single 220mm disc 1 piston caliper, UBS ABS at the rear.

What tyre sizes does the 2016 Yamaha YZF 1000 R1 use?

The 2016 Yamaha YZF 1000 R1 runs 120/70 ZR17 front and 190/55 ZR17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

What gearbox does the 2016 Yamaha YZF 1000 R1 have?

The 2016 Yamaha YZF 1000 R1 is fitted with a 6-speed w/multiplate slipper clutch transmission.

Yamaha YZF 1000 R1 Spec Evolution

The Yamaha YZF 1000 R1 was produced across 13 model years (1998-2021). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	1998	2001	2003	2005	2008	2014	2015	2016	2017	2018	2019	2020	2021
Max Power	148.8 hp / 109.5 kW @ 10000 rpm	148.8 hp / 109.5 kW @ 10000 rpm	152 hp / 110.8 kW @ 10500 rpm	171.3 hp / 126 kW @ 12500 rpm	132.4 kW / 180 hp @ 12500 rpm	133.9 kW / 182 hp @ 12500 rpm	147.1 kW / 200.0 PS @ 13500 rpm	147.1 kW / 200.0 PS @ 13500 rpm	147.1 kW / 200.0 PS @ 13500 rpm	147.1 kW / 200.0 PS @ 13500 rpm	147.1 kW / 200.0 PS @ 13500 rpm	147.1 kW / 197 hp @ 13500 rpm	147.1 kW / 197 hp @ 13500 rpm
Wet Weight	192 kg / 423 lbs	192 kg / 423 lbs	192 kg / 423 lbs	185 kg / 407.8 lbs	190 kg / 418.8 lbs	206 kg / 454 lb	199 kg / 439 lbs	199 kg / 439 lbs	199 kg / 439 lbs	199 kg / 439 lbs	199 kg / 439 lbs	203 kg / 448 lbs	203 kg / 448 lbs
Dry Weight	177 kg / 390.2 lbs	177 kg / 390.2 lbs	175 kg / 389.5 lbs	172 kg / 379 lbs	177 kg / 389.4 lbs	177 kg / 389.4 lb	-	-	-	-	-	-	-
Engine Detail	Four stroke, transverse four cylinder, DOHC, 5 valves per cylinder.	Four stroke, transverse four cylinder, DOHC, 5 valves per cylinder.	Four stroke, transverse four cylinder, DOHC, 5 valves per cylinder.	Four stroke, transverse four cylinder, DOHC, 5 valves per cylinder.	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Top Speed	277.2 km/h / 172.2 mph	277.2 km/h / 172.2 mph	277.5 km/h / 172.4 mph	296.1 km/h / 184 mph	287.7 km/h	280.9 km/h	-	-	-	-	-	-	-
Seat Height	813 mm / 32.3 in	813 mm / 32.3 in	813 mm / 32.3 in	833 mm / 32.3 in	835 mm / 32.9 in	835 mm / 32.8 in	830 mm / 32.7 in	830 mm / 32.7 in	830 mm / 32.7 in	830 mm / 32.7 in	830 mm / 32.7 in	861 mm / 33.9 in	861 mm / 33.9 in
Fuel Capacity	18 Litres / US 4.7 gal	18 Litres / 4.7 gal	18 Litres / 4.7 gal	18 Litres / 4.7 gal	18 Litres / 4.0 US gal	18 Litres / 4.8 gal	17 Liters / 4.5 gal	17 Liters / 4.5 US gal	17 Liters / 4.5 US gal	17 Liters / 4.5 US gal	17 Liters / 4.5 US gal	17 Liters / 4.5 US gal	17 Liters / 4.5 US gal
Frame Type	Aluminium, twin spar	Aluminium, twin spar	Aluminium, twin spar	Deltabox V aluminium aluminium, twin spar	Deltabox V aluminium aluminium, twin spar	Deltabox V aluminium	-	-	-	-	-	-	-

Key Specifications

Engine

Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.

Power

147.1 kW / 200.0 PS @ 13500 rpm

Torque

112.4 Nm / 11.5 kg-m @ 11500 rpm

Top Speed

Not published by manufacturer

Weight

199 kg / 439 lbs

Fuel Capacity

17 Liters / 4.5 US gal

Full 2016 Yamaha YZF 1000 R1 Specifications

Year 2016

Make Model Yamaha YZF 1000 R1

Seat Height 830 mm / 32.7 in

Wheelbase 1419 mm / 55.9 in

Ground Clearance 135mm / 5.3 in

Height 1150 mm / 45.3 in

Length 2054 mm / 80.9 in

Width 690 mm / 27.2 in

Fuel Capacity 17 Liters / 4.5 US gal

Wet Weight 199 kg / 439 lbs

Max Power 147.1 kW / 200.0 PS @ 13500 rpm

Max Torque 112.4 Nm / 11.5 kg-m @ 11500 rpm

Displacement 998 cc / 60.9 cu-in

Engine Detail Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.

Bore x Stroke 79.0 x 50.9 mm

Compression Ratio 13.0:1

Cooling System Liquid cooled

Engine Management YCC-T, YCC-I, PWR, TCS, LCS, LIF, SCS, QSS, CCU & SCU

Fuel Induction Fuel Injection with YCC-T and YCC-I

Ignition TCI: Transistor Controlled Ignition

Lubrication Wet sump

Starter Electric

Clutch Wet, Multiple Disc

Final Drive "O" ring chain

Transmission / Drive 6-speed w/multiplate slipper clutch

Suspension - Front 43mm KYBø inverted fork; fully adjustable

Suspension - Rear KYB® Single shock w/piggyback reservoir, 4-way adjustable

Wheel Travel - Front 120 mm / 4.7 in

Wheel Travel - Rear 120 mm / 4.7 in

Brakes - Front 2x 320mm discs 4 piston calipers, UBS ABS

Brakes - Rear Single 220mm disc 1 piston caliper, UBS ABS

Tyres - Front 120/70 ZR17

Tyres - Rear 190/55 ZR17

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
