Key Specifications
Engine
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Power
133.9 kW / 182 hp @ 12500 rpm
Torque
115.5 Nm / 11.8 kgf-m @ 10000 rpm
Fuel Capacity
18 Litres / 4.8 gal

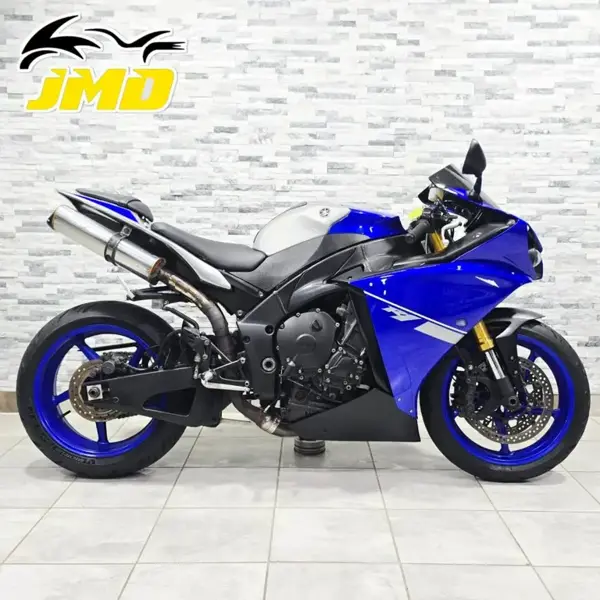

Full 2014 Yamaha YZF 1000 R1 Specifications
Year
2014
Make Model
Yamaha YZF 1000 R1
Seat Height
835 mm / 32.8 in
Wheelbase
1415 mm / 55.7 in
Ground Clearance
135mm / 5.3 in
Height
1130 mm / 44.5 in
Length
1130 mm / 44.5 in
Width
715 mm / 28.1 in
Wet Weight (kg)
206
Dry Weight (kg)
177
Dry Weight
177 kg / 389.4 lb
Fuel Capacity
18 Litres / 4.8 gal
Wet Weight
206 kg / 454 lb
Displacement
998 cc / 60.9 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Bore x Stroke
78 X 52.2 mm
Compression Ratio
12.8:1
Cooling System
Liquid cooled
Engine Oil Specification
Synthetic, 10W/40
Fuel Induction
Mikuni 45mm throttle body FI
Ignition
TCI: Transistor Controlled Ignition
Lubrication
Wet sump
Spark Plug
NGK, CR9EK
Starter
Electric
Clutch
Cable-operated multiplate wet slipper clutch.
Final Drive
"O" ring chain
Gear Ratios
1st 38/15 (2.533) 2nd 33/16 (2.063) 3rd 37/21 (1.762) 4th 35/23 (1.522) 5th 30/22 (1.364) 6th 33/26 (1.269)
Transmission / Drive
6 Speed
Frame Type
Deltabox V aluminium
Suspension - Front
43mm inverted telescopic fork w/adjustable preload, compression damping, rebound damping;
Suspension - Rear
Single shock w/piggyback reservoir; adjustable for hi-/lo-speed compression damping, rebound damping, spring preload,
Rake
24°
Trail
102 mm / 4.0 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
120 mm / 4.7 in
Brakes - Front
2x 310mm discs 6 piston calipers
Brakes - Rear
Single 220mm disc 1 piston caliper
Tyres - Front
120/70 ZR17
Tyres - Rear
190/55 ZR17
