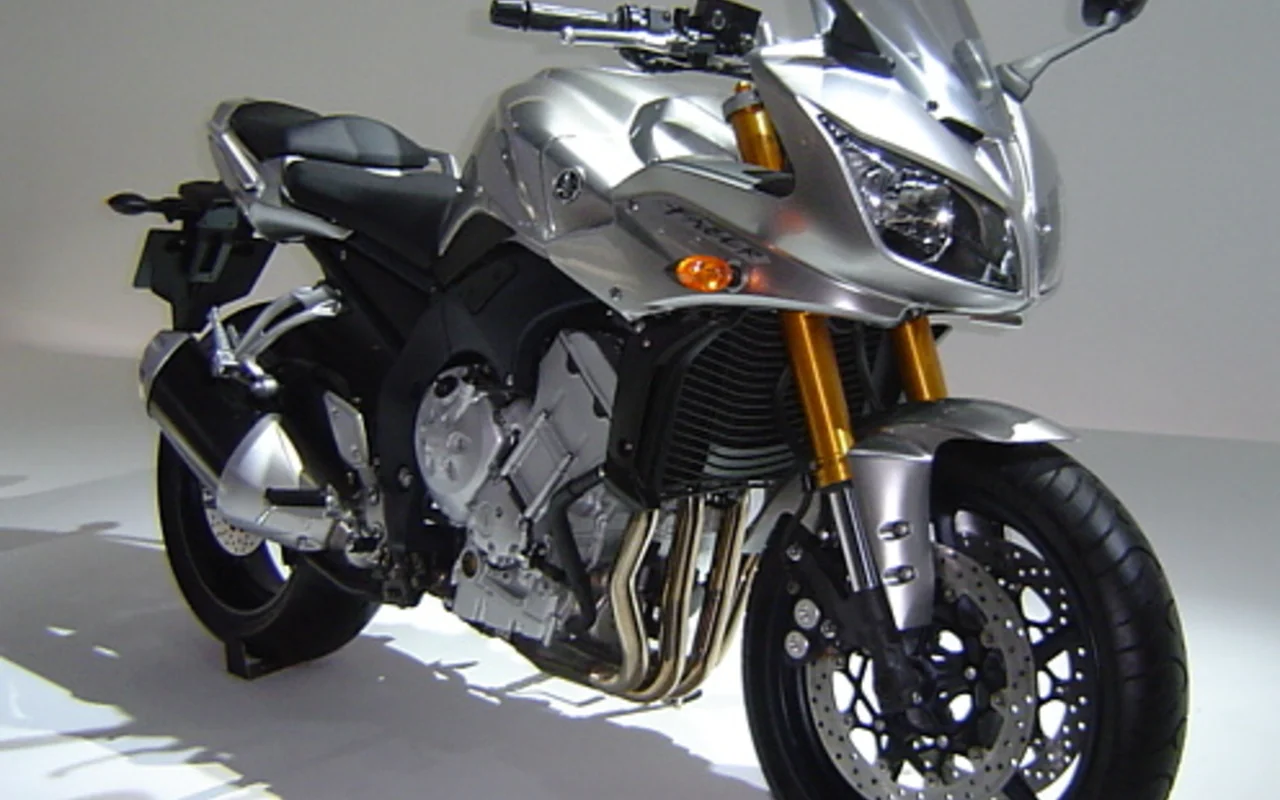

2005 Yamaha FZ1 Specifications

Name: 2005 Yamaha FZ1
Brand: Yamaha

Naked bike • Specs last verified 13 July 2026

No images available

Tap to enlarge

2005 Yamaha FZ1 Overview

The 2005 Yamaha FZ1 is a naked bike motorcycle built around 998 cc of displacement. Under the tank sits an In-line four engine running DOHC valve actuation, a compression ratio of 11.4:1. The bore and stroke measures 74 x 58 mm. From a practical standpoint, the 2005 FZ1 tips the scales at 208.2 kg, carries a 5.60-litre fuel tank, offers a seat height of 820 mm and spans a 1,450 mm wheelbase. Scroll down for the complete 2005 Yamaha FZ1 spec sheet covering every technical detail from suspension travel to tyre sizes.

2005 FZ1 - Pros & Cons

Strengths

Factory engineering: The 2005 Yamaha FZ1 represents Yamaha's engineering at the time, with a specification built around real-world usability.

Considerations

Carburetor fuelling: Carbureted engines need occasional jetting attention and can be reluctant in cold weather or at altitude compared to modern fuel-injected alternatives.
Tall seat height: The 820 mm seat height will challenge shorter riders - tiptoeing at low speeds is something to factor into your decision.
Modest fuel capacity: The 5.60-litre tank means more frequent fuel stops on longer rides, which is worth planning around on touring routes.
Chain final drive upkeep: Chain final drive needs regular cleaning, lubrication and tension checks to get full life out of the sprockets.

Wear Points & Servicing Notes

Carburetor maintenance

The FZ1 uses carburetion rather than fuel injection, which means jetting is altitude- and temperature-sensitive and benefits from a clean-and-rejet after extended storage or an exhaust change.

Valve clearance checks

DOHC valve actuation on the FZ1 means clearances should be checked at the manufacturer's specified interval - they can tighten as mileage accumulates, and a light top-end tick is usually the first sign.

Brake disc and pad wear

The Double disc front brake gives strong, progressive stopping power. Disc thickness and pad depth are worth checking at every tyre change, since worn pads can score the disc surface.

Suspension condition on used examples

Up front, the FZ1 runs 43mm telescopic fork w/adjustable preload, compression and rebound damping and Single shock w/piggyback reservoir and adjustable preload, compression and rebound damping at the rear. On a used example, check fork seals for weeping oil and test the rear linkage for play - seals are a relatively cheap fix but useful when negotiating price.

Final drive maintenance

Final drive is by chain - expect to clean and lube it every few hundred kilometres and check tension regularly; a neglected chain wears the sprockets faster than the chain itself.

FZ1 - Buying & Maintenance Guide

What to check before buying

When inspecting a used 2005 Yamaha FZ1, start with the basics: check the service book for oil change frequency, inspect the chain and sprockets for wear, and look for oil seepage around the engine casings and rocker covers. A cold start test is invaluable - a well-maintained FZ1 should fire up cleanly and settle to a smooth idle within a few seconds.

Oil and filter changes

Regular oil changes are the single most important maintenance task on any FZ1. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. Always use the correct viscosity grade as specified in the owner's manual.

Carburetor upkeep

Keep the carburetors clean and free of deposits. If the FZ1 has been stored, strip and clean the carb float bowls before attempting to start it. Pilot jets are the first to block and the last to be checked - always include them in any carb rebuild.

Valve clearance service

Check that valve clearances have been adjusted at the correct intervals on any used FZ1. A bike with clearances out of spec doesn't always feel obviously wrong - but tight clearances accelerate valve seat wear. Ask for service documentation proving it's been done.

2005 Yamaha FZ1 - Frequently Asked Questions

What engine does the 2005 Yamaha FZ1 have?

The 2005 Yamaha FZ1 uses an In-line four engine with 998 cc of displacement.

How much does the 2005 Yamaha FZ1 weigh?

The 2005 Yamaha FZ1 weighs 208.2 kg. This is the manufacturer's dry figure.

What is the fuel tank capacity of the 2005 Yamaha FZ1?

The 2005 Yamaha FZ1 has a 5.60-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 93-111 km between stops.

Is the 2005 Yamaha FZ1 suitable for shorter riders?

The 2005 Yamaha FZ1 has a seat height of 820 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.

What brakes does the 2005 Yamaha FZ1 have?

The 2005 Yamaha FZ1 uses Double disc at the front and Single disc at the rear.

What tyre sizes does the 2005 Yamaha FZ1 use?

The 2005 Yamaha FZ1 runs 120/70-ZR17 front and 180/55-ZR17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

What fuel system does the 2005 Yamaha FZ1 use?

The 2005 Yamaha FZ1 uses Carburettor. (4) 37mm Mikuni CV w/throttle position sensor (TPS), providing precise fuelling across the rev range and reliable cold-start behaviour.

Yamaha FZ1 Spec Evolution

The Yamaha FZ1 was produced across 13 model years (2005-2017). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2005	2006	2007	2008	2009	2010	2011	2012	2013	2014	2015	2016	2017
Wet Weight	-	-	-	-	220.0 kg / 485.0 lbs	220.9 kg / 487.0 lbs	220.9 kg / 487.0 lbs	220.9 kg / 487.0 lbs	220.9 kg / 487.0 lbs	220.9 kg / 487.0 lbs	220.9 kg / 487.0 lbs	220.9 kg / 487.0 lbs	220.9 kg / 487.0 lbs
Dry Weight	208.2 kg / 459.0 lbs	198 kg / 436.5 lbs	198.7 kg / 438.0 lbs	199.1 kg / 439.0 lbs	-	-	230 kg / 507.0 lbs	-	210.5 kg / 464.1 lbs	59 kg / 130.1 lbs	-	-	-
Engine Detail	-	-	-	-	-	-	-	Titanium intake valves	-	High silicon-content ceramic-composite cylinder lining.	High silicon-content ceramic-composite cylinder lining.	High silicon-content ceramic-composite cylinder lining.	High silicon-content ceramic-composite cylinder lining.
Engine Type	In-line four	In-line four	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke
Seat Height	820 mm / 32.3 in.	815 mm / 32.1 in.	815 mm / 32.1 in.	815 mm / 32.1 in.	815 mm / 32.1 in.	815 mm / 32.1 in.	815 mm / 32.1 in.	815 mm / 32.1 in.	815 mm / 32.1 in.	815 mm / 32.1 in.	815 mm / 32.1 in.	815 mm / 32.1 in.	815 mm / 32.1 in.
Fuel Capacity	5.60 litres / 1.48 gallons	18.00 litres / 4.76 gallons	17.97 litres / 4.75 gallons	17.97 litres / 4.75 gallons	17.97 litres / 4.75 gallons	18.01 litres / 4.76 gallons	18.02 litres / 4.76 gallons	18.17 litres / 4.80 gallons	18.17 litres / 4.80 gallons	18.17 litres / 4.80 gallons	18.17 litres / 4.80 gallons	18.17 litres / 4.80 gallons	18.17 litres / 4.80 gallons
Bore x Stroke (in,)	2.9 x 2.3 inches	3.0 x 2.1 inches	3.0 x 2.1 inches	3.0 x 2.1 inches	3.0 x 2.1 inches	3.0 x 2.1 inches	3.0 x 2.1 inches	3.0 x 2.1 inches	3.0 x 2.1 inches	3.0 x 2.1 inches	3.0 x 2.1 inches	3.0 x 2.1 inches	3.0 x 2.1 inches
Bore x Stroke (mm)	74.0 x 58.0 mm	77.0 x 53.6 mm	77.0 x 53.6 mm	77.0 x 53.6 mm	77.0 x 53.6 mm	77.0 x 53.6 mm	77.0 x 53.6 mm	77.0 x 53.6 mm	77.0 x 53.6 mm	77.0 x 53.6 mm	77.0 x 53.6 mm	77.0 x 53.6 mm	77.0 x 53.6 mm

Key Specifications

Engine

In-line four

Power

Not published by manufacturer

Torque

Not published by manufacturer

Top Speed

Not published by manufacturer

Weight

208.2 kg / 459.0 lbs

Fuel Capacity

5.60 litres / 1.48 gallons

Full 2005 Yamaha FZ1 Specifications

Colours Team Yamaha Blue, Liquid Silver

Seat Height 820 mm / 32.3 in.

Wheelbase 1,450 mm / 57.1 in.

Height 1,191 mm / 46.9 in.

Length 2,126 mm / 83.7 in.

Width 765 mm / 30.1 in.

Dry Weight 208.2 kg / 459.0 lbs

Fuel Capacity 5.60 litres / 1.48 gallons

Bore x Stroke (in,) 2.9 x 2.3 inches

Bore x Stroke (mm) 74.0 x 58.0 mm

Displacement (cc) 998.00 cc

Displacement (ci) 60.90 cubic inches

Engine Type In-line four

Fuel Control DOHC

Stroke 4

Fuel System Carburettor. (4) 37mm Mikuni CV w/throttle position sensor (TPS)

Compression Ratio 11.4:1

Ignition Digital TCI

Starter Electric

Clutch Multiplate

Final Drive Chain

Gearbox 6-speed

Suspension - Front 43mm telescopic fork w/adjustable preload, compression and rebound damping

Suspension - Rear Single shock w/piggyback reservoir and adjustable preload, compression and rebound damping

Rake 26.0°

Trail 104 mm / 4.1 in.

Wheel Travel - Front 142 mm / 5.6 in.

Wheel Travel - Rear 135 mm / 5.3 in.

Brakes - Front Diameter (in.) 11.7 inches

Brakes - Front Diameter (mm) 298 mm

Brakes - Rear Diameter (in.) 10.5 inches

Brakes - Rear Diameter (mm) 267 mm

Brakes - Front Double disc

Brakes - Rear Single disc

Tyres - Front 120/70-ZR17

Tyres - Rear 180/55-ZR17

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
