Key Specifications
Engine
Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder.
Power
95.4 kW / 128 hp @ 12500rpm
Torque
74 Nm / 7.5 kgf-m / 55 ft.lbs @ 11900rpm
Fuel Capacity
17.5 Litres / 4.6 US gal / 3.8 Imp gal
Advertisement

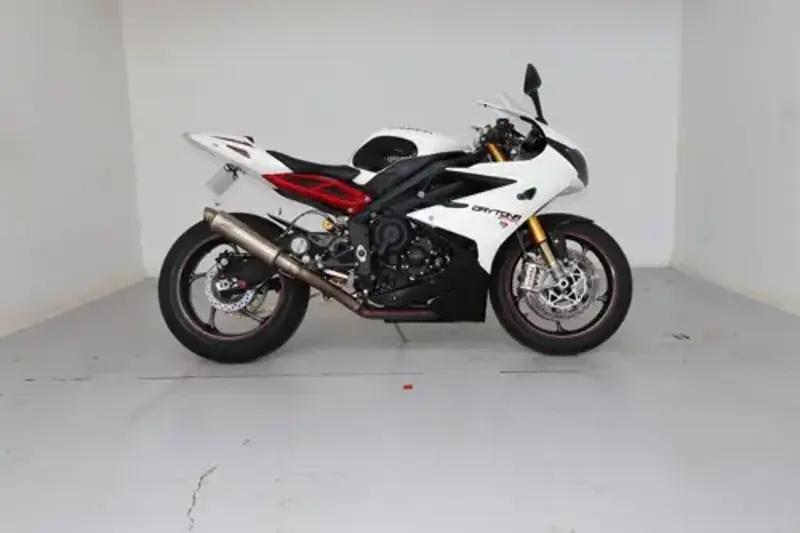

Full 2014 Triumph Daytona 675R Specifications
Year
2014
Make Model
Triumph Daytona 675R
Seat Height
820 mm / 32.3 in
Wheelbase
1375 mm / 54.1 in
Height
without mirrors 1112 mm / 43.7 in
Length
without mirrors 1112 mm / 43.7 in
Width
(handlebars) 695 mm / 27.3 in
Dry Weight
167 kg / 368lbs
Fuel Capacity
17.5 Litres / 4.6 US gal / 3.8 Imp gal
Oil Capacity
3.6 Litres / 1.0 US gal / 0.8 Imp gal
Wet Weight
184 kg / 406 lbs
Displacement
675 cc / 41.2 cu in
Engine Detail
Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder.
Bore x Stroke
76 x 49.6 mm
Compression Ratio
13.1:1
Cooling System
Liquid-cooled
Exhaust
Stainless steel 3 into 1 system with valve in secondary and under engine silencer
Fuel Induction
Multipoint sequential electronic fuel injection with forced air induction and SAI
Ignition
Digital - inductive type
Lubrication
Wet sump
Starter
Electric
Clutch
Wet, multi-plate, slipper.
Final Drive
O-ring chain
Transmission / Drive
6 Speed
Frame Type
Aluminium beam twin spar. Rear - 2 piece high pressure die cast swingarm braced, twin-sided, aluminium alloy with adjustable pivot position
Suspension - Front
Öhlins 43mm upside down NIX30 forks with adjustable preload, rebound and compression damping
Suspension - Rear
Öhlins TTX36 twin tube monoshock with piggy back reservoir, adjustable preload, rebound and compression damping
Rake
23.0°
Trail
87.7 mm / 3.4 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
133 mm / 5.2 in
Brakes - Front
2 x 308 mm Discs, 4 piston calipers, Brembo
Brakes - Rear
Single 220 mm disc, 1 piston caliper, Brembo
Tyres - Front
120/70 ZR 17
Tyres - Rear
180/55 ZR 17
Wheels - Front
Front Cast aluminium alloy 5-spoke 17 x 3.5in
Wheels - Rear
Rear Cast aluminium alloy 5-spoke 17 x 5.5in
