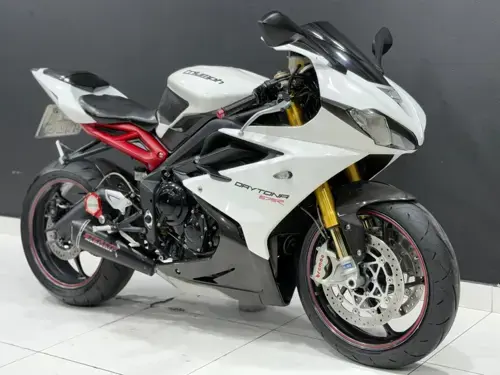

Triumph Daytona 675R Specs

2013–2016 • 3 variants

Triumph has built the Daytona 675R, a sport motorcycle, across 3 variants since 2013, most recently updated for 2016. Under the tank sits a four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder.. It makes 128 hp at peak. Torque tops out at 74 Nm.

About the Triumph Daytona 675R

Triumph introduced the Daytona 675R as part of their Sport range, with production running from 2011 to 2017. This technical reference page documents the full specification sheet for the Triumph Daytona 675R, including engine displacement, power and torque figures, frame and suspension geometry, braking systems, and overall dimensions. Select a model year above to view year-specific technical data. Specifications are compiled from official manufacturer sources.

Triumph Daytona 675R by Year

2016 Triumph Daytona 675R View specs →

2014 Triumph Daytona 675R View specs →

2013 Triumph Daytona 675R View specs →

Spec Evolution

How key specs changed across production years.

Specification	2011	2012	2013	2014	2016	2017
Fuel Control	DOHC	DOHC	DOHC	-	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)
Comments	Sold in Germany	4W/2WD. Automatic Transmission with Hi/Lo Range and Reverse. Slip Limited Front Differential. DC 12V 10A 120W electric outlet. Made in Taiwan.	Sold in the Philippines.	-	-	Carbon fibre cockpit infills. Quickshifter. Rear hugger and front mudguard. Removable number plate and indicators.
Brakes - Front Diameter (mm)	308 mm	308 mm	310 mm ↑	-	310 mm	310 mm
Brakes - Front Diameter (in.)	12.1 inches	12.1 inches	12.2 inches ↑	-	12.2 inches	12.2 inches
Frame Type	Running Gear and Displays, Aluminium beam twin spar. Rear - 2 piece high pressure die cast Swingarm Braced, twin-sided, aluminium alloy with adjustable pivot position	Running Gear and Displays, Aluminium beam twin spar. Rear - 2 piece high pressure die cast Swingarm Braced, twin-sided, aluminium alloy with adjustable pivot position	Aluminium beam twin spar. Rear - 2 piece high pressure die cast swingarm braced, twin-sided, aluminium alloy with adjustable pivot position	Aluminium beam twin spar. Rear - 2 piece high pressure die cast swingarm braced, twin-sided, aluminium alloy with adjustable pivot position	Aluminium beam twin spar. Rear - 2 piece high pressure die cast swingarm braced, twin-sided, aluminium alloy with adjustable pivot position	Aluminium beam twin spar. Braced, twin-sided, aluminium alloy with adjustable pivot position swing arm.
Seat Height	820 mm / 32.3 in	820 mm / 32.3 in	820 mm / 32.3 in	820 mm / 32.3 in	830 mm / 32.7 in. ↑	830 mm / 32.7 in
Dry Weight	226 kg / 498.2 lbs	364 kg / 802.5 lbs ↑	167 kg / 368.2 lbs ↓	167 kg / 368lbs	167 kg / 368lbs	167 kg / 368lbs
Displacement	675 cc / 41.2 cub in.	675 cc / 41.2 cub in.	675 cc / 41.2 cu in	675 cc / 41.2 cu in	675 cc / 41.2 cu in	675 cc / 41.2 cu in
Brakes - Front	2 x 308 mm Discs, 4 piston calipers, Brembo	2 x 308 mm Discs, 4 piston calipers, Brembo	2 x 308 mm Discs, 4 piston calipers, Brembo	2 x 308 mm Discs, 4 piston calipers, Brembo	Double disc. Brembo 4-piston radial mono-block calipers, switchable ABS. ↑	Double disc. Brembo 4-piston radial mono-block calipers, switchable ABS.
Wheelbase	1395mm / 54.9 in	1395mm / 54.9 in	1375 mm / 54.1 in ↓	1375 mm / 54.1 in	1,375 mm / 54.1 in. ↓	1,375 mm / 54.1 in.
Fuel Capacity	17.5 Litres / 4.6 US gal / 3.8 Imp gal	17.5 Litres / 4.6 US gal / 3.8 Imp gal	17.5 Litres / 4.6 US gal / 3.8 Imp gal	17.5 Litres / 4.6 US gal / 3.8 Imp gal	17.40 litres / 4.60 gallons ↓	17.5 Litres / 4.6 US gal / 3.8 Imp gal ↑
Brakes - Rear	Single 220 mm disc, 1 piston caliper, Brembo	Single 220 mm disc, 1 piston caliper, Brembo	Single 220 mm disc, 1 piston caliper, Brembo	Single 220 mm disc, 1 piston caliper, Brembo	Single disc. Brembo single piston caliper, switchable ABS.	Single 220 mm disc, 1 piston caliper, Brembo, swotchable ABS
Suspension - Front	Öhlins 43mm upside down NIX30 forks with adjustable preload, rebound and compression damping	Öhlins 43mm upside down NIX30 forks with adjustable preload, rebound and compression damping	Öhlins 43mm upside down NIX30 forks with adjustable preload, rebound and compression damping	Öhlins 43mm upside down NIX30 forks with adjustable preload, rebound and compression damping	Öhlins 43mm upside down NIX30 forks with adjustable preload, rebound and compression damping	?hlins 43mm upside down NIX30 forks with adjustable preload, rebound and compression damping.
Suspension - Rear	Öhlins TTX36 twin tube monoshock with piggy back reservoir, adjustable preload, rebound and compression damping,	Öhlins TTX36 twin tube monoshock with piggy back reservoir, adjustable preload, rebound and compression damping,	Öhlins TTX36 twin tube monoshock with piggy back reservoir, adjustable preload, rebound and compression damping	Öhlins TTX36 twin tube monoshock with piggy back reservoir, adjustable preload, rebound and compression damping	Öhlins TTX36 twin tube monoshock with piggy back reservoir, adjustable preload, rebound and compression damping	?hlins TTX36 twin tube monoshock with piggy back reservoir, adjustable, rebound and compression damping.
Colours	White/red/black	White/black	White/Black/Red	-	Crystal White/Jet Black/red, Phantom Black/Red	Crystal White/Jet Black/red, Phantom Black/Red
Clutch	Wet, multi-plate, slipper	Wet, multi-plate, slipper	Wet, multi-plate, slipper.	Wet, multi-plate, slipper.	Wet, multi-plate, slipper.	Wet, multi-plate, slipper.
Oil Capacity	3.6 Litres / 1.0 US gals / 0.8 Imp gal	3.6 Litres / 1.0 US gals / 0.8 Imp gal	3.6 Litres / 1.0 US gal / 0.8 Imp gal	3.6 Litres / 1.0 US gal / 0.8 Imp gal	3.6 Litres / 1.0 US gal / 0.8 Imp gal	3.6 Litres / 1.0 US gal / 0.8 Imp gal
Final Drive	O-ring chain	O-ring chain	O-ring chain	O-ring chain	O-ring chain	Chain
Height	without mirrors 1105 mm m 43.5 in	without mirrors 1105 mm m 43.5 in	without mirrors 1112 mm / 43.7 in ↑	without mirrors 1112 mm / 43.7 in	without mirrors 1112 mm / 43.7 in	1,112 mm / 43.8 in. ↓
Length	2020 mm / 79.5 in	2020 mm / 79.5 in	without mirrors 1112 mm / 43.7 in ↓	without mirrors 1112 mm / 43.7 in	without mirrors 1112 mm / 43.7 in	2,045 mm / 80.5 in. ↓
Wet Weight	185 kg / 407 lbs	185 kg / 407 lbs	184 kg / 406 lbs ↓	184 kg / 406 lbs	189.0 kg / 416.7 lbs ↑	184 kg / 406 lbs ↓
Warranty	-	-	2 year warranty unlimited mileage	-	24 months warranty unlimited mileage	24 months warranty unlimited mileage
Compression Ratio	12.7:1	12.7:1	13.1:1 ↑	13.1:1	12.7:1 ↓	13.1:1 ↑
Tyres - Front	120/70 ZR 17	120/70 ZR 17	120/70 ZR 17	120/70 ZR 17	120/70 ZR 17	120/70-ZR17
Width	(handlebars) 710 mm / 27.9 in	(handlebars) 710 mm / 27.9 in	(handlebars) 695 mm / 27.3 in ↓	(handlebars) 695 mm / 27.3 in	695 mm / 27.4 in.	(handlebars) 695 mm / 27.3 in
Tyres - Rear	180/55 ZR 17	180/55 ZR 17	180/55 ZR 17	180/55 ZR 17	180/55-ZR17	180/55 ZR 17
Primary Drive	O ring chain. Primary drive: Gear.	O ring chain	O ring chain	-	O ring chain	O ring chain
Rake	23.9°	23.9°	23.0° ↓	23.0°	23.0°	23.0°
Exhaust	Stainless steel 3 into 1 system with valve in secondary and under engine silencer	Stainless steel 3 into 1 system with valve in secondary and under engine silencer	Stainless steel 3 into 1 system with valve in secondary and under engine silencer	Stainless steel 3 into 1 system with valve in secondary and under engine silencer	Stainless steel 3 into 1 system with valve in secondary and under engine silencer	Stainless steel 3 into 1 system with valve in secondary and under seat silencer
Instrumentation	LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, lap timer, gear position indicator and programmable gear change lights	LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, lap timer, gear position indicator and programmable gear change lights	LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, lap timer, gear position indicator and programmable gear change lights and clock, coded key immobiliser, TPMS ready and switchable ABS (where fitted).	-	LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, lap timer, gear position indicator and programmable gear change lights and clock, coded key immobiliser, TPMS ready and switchable ABS (where fitted).	LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, lap timer, gear position indicator and programmable gear change lights and clock, coded key immobiliser, TPMS ready and switchable ABS (where fitted).
Fuel Consumption	-	5.11 litres/100 km (19.6 km/l or 46.03 mpg)	-	-	4.5 L/100 km / 22.3 km/l / 52.4 US mpg / 62.8 Imp mpg	4.5 L/100 km / 22.3 km/l / 52.4 US mpg / 62.8 Imp mpg
Trail	87.2 mm / 3.4 in	87.2 mm / 3.4 in	87.7 mm / 3.4 in ↑	87.7 mm / 3.4 in	87.9 mm / 3.5 in ↑	87.9 mm / 3.5 in
Max Power	93 kW / 124 hp @ 12600rpm	93 kW / 124 hp @ 12600rpm	95.4 kW / 128 hp @ 12500rpm ↑	95.4 kW / 128 hp @ 12500rpm	95.4 kW / 128 hp @ 12500rpm	95.4 kW / 128 hp @ 12500rpm
Wheel Travel - Front	110 mm / 4.3 in	110 mm / 4.3 in	120 mm / 4.7 in ↑	120 mm / 4.7 in	120 mm / 4.7 in	120 mm / 4.7 in.
Wheel Travel - Rear	130 mm / 5.1 in	130 mm / 5.1 in	133 mm / 5.2 in ↑	133 mm / 5.2 in	133 mm / 5.2 in	133 mm / 5.2 in.
Ignition	Digital - inductive type	Digital - inductive type	Digital - inductive type	Digital - inductive type	Digital-inductive type via engine management system	Digital - inductive type
Max Torque	72 Nm / 7.3 kgf-m / 53 ft/lb @ 11750rpm	72 Nm / 7.3 kgf-m / 53 ft/lb @ 11750rpm	74 Nm / 7.5 kgf-m / 55 ft.lbs @ 11900rpm ↑	74 Nm / 7.5 kgf-m / 55 ft.lbs @ 11900rpm	74.00 Nm (7.5 kgf-m or 54.6 ft.lbs) @ 11900 Revolutions	74 Nm / 7.5 kgf-m / 55 ft.lbs @ 11900rpm
Power-to-Weight Ratio	-	0.0541 HP/kg	0.1102 HP/kg ↑	-	0.7665 HP/kg	0.7665 HP/kg
