Key Specifications
Engine
Two stroke, 90° V- twin, reed valve
Power
45.5 kW / 61 hp @ 11000 rpm
Torque
40 Nm / 4.1 kgf-m / 29.5 lb-ft @ 8000 rpm
Top Speed
205.4 km/h / 127.6 mph
Fuel Capacity
17 Litres / 4.5 US gal / 3.7 Imp gal
Advertisement

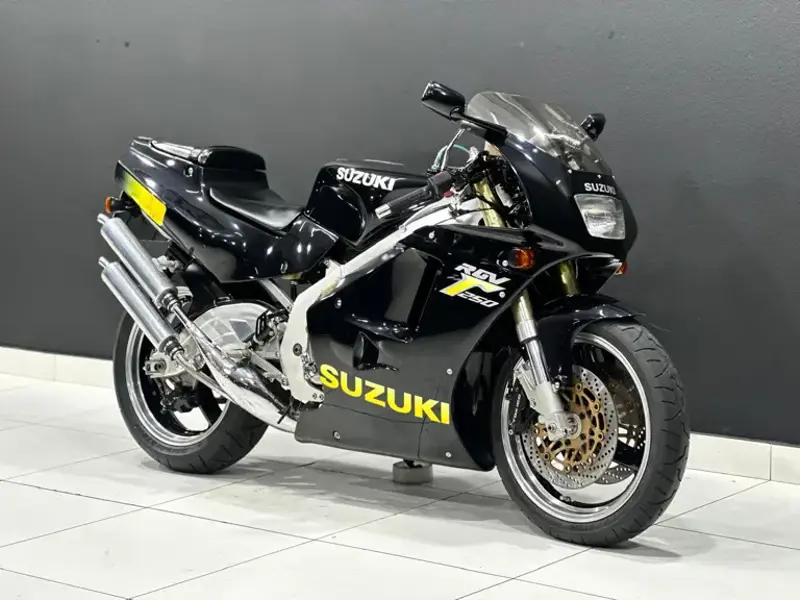

Full 1992 Suzuki RGV 250 Specifications
Year
1992
Model
Suzuki RGV 250
Seat Height
755 mm / 29.7 in
Wheelbase
1375 mm / 54.1 in
Ground Clearance
120 mm / 4.7 in
Height
1065 mm / 41.9 in
Length
2015 mm / 79.3 in
Turning Circle
3.1 m / 10.2 ft
Width
695 mm / 27.4 in
Wet Weight (kg)
161
Fuel Capacity
17 Litres / 4.5 US gal / 3.7 Imp gal
Oil Capacity
1.1 Litres / 12 US qt / 1.0 Imp qt
Wet Weight
161 kg / 355 lbs
Displacement
249 cc / 15.2 cu in
Engine Detail
Two stroke, 90° V- twin, reed valve
Bore x Stroke
56 x 50.6 mm
Compression Ratio
7.3 :1
Cooling System
Liquid cooled
Fuel Consumption
8.0 L/100 km / 12.5 km/l / 29.4 US mpg / 35.3 Imp mpg
Fuel Induction
2 x Mikuni TM34SS semi-flat carburetors
Ignition
Pointless Electrical Ignition
Spark Plug
NGK BR9ES
Starter
Kick
Battery Capacity
12V, 5Ah
Clutch
Wet, multi-plate
Final Drive
Chain, DID520V2, 114 links
Gear Ratios
1st 2.454 (27/11) / 2nd 1.625 (26/16) / 3rd 1.235 (21/17) / 4th 1.045 (23/22) / 5th 0.916 (22/24) / 6th 0.840 (21/25)
Primary Drive Ratios
2.565 (59/23)
Transmission / Drive
6 Speed, constant mesh
Frame Type
Twin spar, aluminium
Suspension - Front
USD telescopic fork, 5-way adjustable with anti-dive, oil dampened
Suspension - Rear
Full Floater, mono-shock, gas/oil damped, 7-way adjustable
Lean Angle
58°
Rake
25o
Trail
94 mm / 3.7 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
140 mm / 5.5 in
Brakes - Front
2 x 300 mm Discs ,4 piston calipers
Brakes - Rear
Single 210 mm disc, 1 piston caliper
Tyres - Front
110/70-17
Tyres - Rear
140/60-18
