Key Specifications
Engine
Four stroke, 90°-V-twin, DOHC, 4 valves per cylinder.
Power
73.9 kW / 99.2 hp / @ 8000 rpm
Torque
103 Nm / 10.5 kgf-m / 76 lb-ft @ 4000 rpm
Weight
228 kg / 502.6 lbs
Fuel Capacity
20 Litres / 5.3 US gal / 4.4 Imp gal
Advertisement

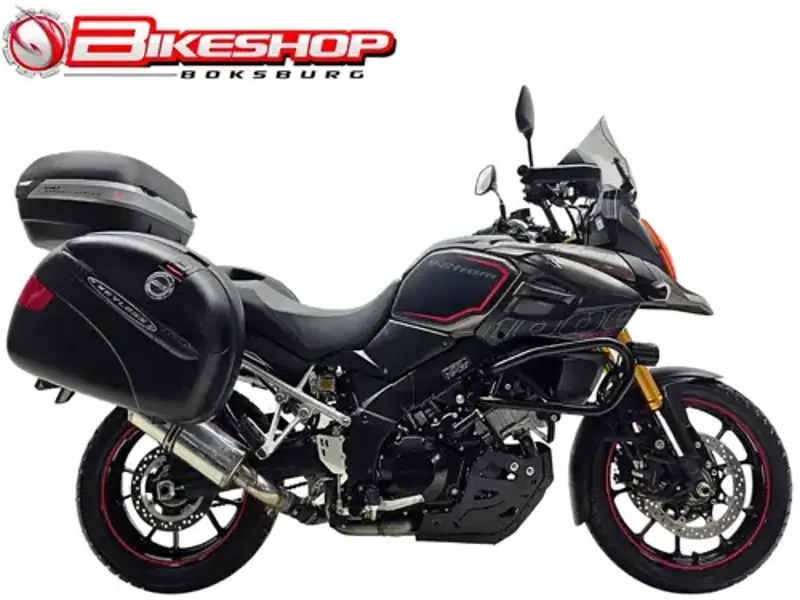

Full 2016 Suzuki DL 1000 V-Strom Specifications
Year
2015 - 16
Make Model
Suzuki DL 1000 V-Strom
Seat Height
850 mm / 33.6 in
Wheelbase
1,535 mm / 60.4 in
Ground Clearance
165 mm / 6.5 in
Height
1410 mm / 55.5 in
Length
2285 mm / 89.96 in
Width
865 mm / 34.1 in
Fuel Capacity
20 Litres / 5.3 US gal / 4.4 Imp gal
Oil Capacity
(Overhaul) 3.5 Litres / 7.4 US pts / 6.2 Imp pts
Wet Weight
228 kg / 502.6 lbs
Displacement
1037 cc / 63.2 cu-in
Engine Detail
Four stroke, 90°-V-twin, DOHC, 4 valves per cylinder.
Bore x Stroke
100 x 66.0mm
Compression Ratio
11.3:1
Cooling System
Liquid cooled
Fuel Induction
Suzuki Fuel Injection
Ignition
Electronic ignition
Lubrication
Wet sump
Starter
Electric
Clutch
Wet, multiple discs, hydraulic
Final Drive
Chain
Final Drive Ratio
2.411 (41/17)
Primary Drive Ratios
1.838 (57/31)
Transmission / Drive
6 Speed
Frame Type
Aluminium, twin spar
Suspension - Front
40mm Inverted telescopic, coil spring, oil damped
Suspension - Rear
Link type, coil spring, oil damped
Rake
25.7°
Trail
109 mm / 4.3 in
Wheel Travel - Front
160 mm / 6.3 in
Wheel Travel - Rear
160 mm / 6.3 in
Brakes - Front
2 x 310 mm discs, 4 piston radial calipers, ABS
Brakes - Rear
Single 265 mm disc, 2 piston caliper, ABS
Tyres - Front
110/80R19M/C 59V
Tyres - Rear
150/70R17M/C 69V
Wheels
Wire spoked
