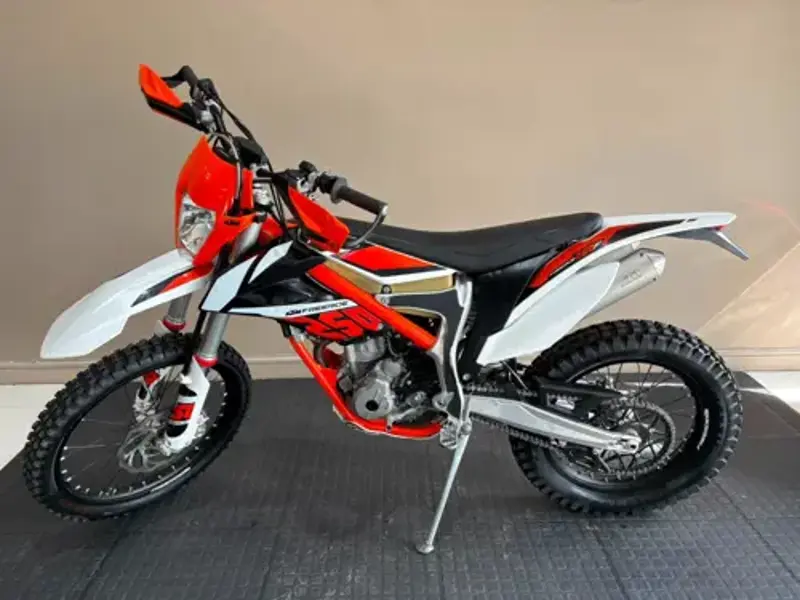

2020 KTM Freeride 250 F Overview
The 2020 KTM Freeride 250 F is an enduro / off-road motorcycle built around 249.9 cc of displacement. Under the tank sits a Single cylinder, four-stroke engine running Double Overhead Cams/Twin Cam (DOHC) valve actuation, a compression ratio of 14.0:1. The bore and stroke measures 78 x 52.3 mm. From a practical standpoint, the 2020 Freeride 250 F tips the scales at 98.5 kg, carries a 5.50-litre fuel tank, offers a seat height of 915 mm and spans a 1485 mm wheelbase. That's roughly 99.5 kg lighter than the average enduro / off-road motorcycle in our database. Scroll down for the complete 2020 KTM Freeride 250 F spec sheet covering every technical detail from suspension travel to tyre sizes.
2020 Freeride 250 F - Pros & Cons
Strengths
-
✓
Factory engineering: The 2020 KTM Freeride 250 F represents KTM's engineering at the time, with a specification built around real-world usability.
Considerations
-
📏
Tall seat height: The 915 mm seat height will challenge shorter riders - tiptoeing at low speeds is something to factor into your decision.
-
⛽
Modest fuel capacity: The 5.50-litre tank means more frequent fuel stops on longer rides, which is worth planning around on touring routes.
-
⚙️
Chain final drive upkeep: Chain final drive needs regular cleaning, lubrication and tension checks to get full life out of the sprockets.
Wear Points & Servicing Notes
Valve clearance checks
Double Overhead Cams/Twin Cam (DOHC) valve actuation on the Freeride 250 F means clearances should be checked at the manufacturer's specified interval - they can tighten as mileage accumulates, and a light top-end tick is usually the first sign.
Brake disc and pad wear
The Single disc. Brake calipers on floating bearings front brake gives strong, progressive stopping power. Disc thickness and pad depth are worth checking at every tyre change, since worn pads can score the disc surface.
Suspension condition on used examples
Up front, the Freeride 250 F runs WP-USD, AER 48, Ø 43 mm and WP Xplor PDS shock absorber at the rear. On a used example, check fork seals for weeping oil and test the rear linkage for play - seals are a relatively cheap fix but useful when negotiating price.
Final drive maintenance
Final drive is by chain - expect to clean and lube it every few hundred kilometres and check tension regularly; a neglected chain wears the sprockets faster than the chain itself.
Frame & chassis check
The frame is Perimeter steel-aluminium composite frame - worth a visual check for corrosion or impact damage around the head-stock and swingarm pivot on any used example, since frame damage is far costlier to fix than any service item.
Low-speed handling
At just 98.5 kg, the Freeride 250 F is light enough to manhandle easily at a standstill - one of the practical advantages of its class.
Freeride 250 F - Buying & Maintenance Guide
What to check before buying
When inspecting a used 2020 KTM Freeride 250 F, start with the basics: check the service book for oil change frequency, inspect the chain and sprockets for wear, and look for oil seepage around the engine casings and rocker covers. A cold start test is invaluable - a well-maintained Freeride 250 F should fire up cleanly and settle to a smooth idle within a few seconds.
Oil and filter changes
Regular oil changes are the single most important maintenance task on any Freeride 250 F. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. Always use the correct viscosity grade as specified in the owner's manual.
Valve clearance service
Check that valve clearances have been adjusted at the correct intervals on any used Freeride 250 F. A bike with clearances out of spec doesn't always feel obviously wrong - but tight clearances accelerate valve seat wear. Ask for service documentation proving it's been done.
2020 KTM Freeride 250 F - Frequently Asked Questions
What engine does the 2020 KTM Freeride 250 F have?
The 2020 KTM Freeride 250 F uses a Single cylinder, four-stroke engine with 249.9 cc of displacement.
How much does the 2020 KTM Freeride 250 F weigh?
The 2020 KTM Freeride 250 F weighs 98.5 kg. This is the manufacturer's dry figure.
What is the fuel tank capacity of the 2020 KTM Freeride 250 F?
The 2020 KTM Freeride 250 F has a 5.50-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 91-110 km between stops.
Is the 2020 KTM Freeride 250 F suitable for shorter riders?
The 2020 KTM Freeride 250 F has a seat height of 915 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.
What brakes does the 2020 KTM Freeride 250 F have?
The 2020 KTM Freeride 250 F uses Single disc. Brake calipers on floating bearings at the front and Single disc. Brake calipers on floating bearings at the rear.
What suspension does the 2020 KTM Freeride 250 F have?
The 2020 KTM Freeride 250 F uses WP-USD, AER 48, Ø 43 mm up front and WP Xplor PDS shock absorber at the rear.
What frame does the 2020 KTM Freeride 250 F use?
The 2020 KTM Freeride 250 F is built around a Perimeter steel-aluminium composite frame frame.
KTM Freeride 250 F Spec Evolution
The KTM Freeride 250 F was produced across 3 model years (2018-2020). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.
| Specification |
2018 |
2019 |
2020 |
| Dry Weight |
92.5 kg / 203.9 lbs |
98.5 kg / 217.2 lbs |
98.5 kg / 217.2 lbs |
| Engine Type |
Single cylinder, two-stroke |
Single cylinder, four-stroke |
Single cylinder, four-stroke |
| Fuel Capacity |
7.00 litres / 1.85 gallons |
5.50 litres / 1.45 US gallons |
5.50 litres / 1.45 US gallons |
| Bore x Stroke (in,) |
2.6 x 2.8 inches |
3.1 x 2.1 inches |
3.1 x 2.1 inches |
| Bore x Stroke (mm) |
66.4 x 72.0 mm |
78.0 x 52.3 mm |
78.0 x 52.3 mm |
| Displacement (cc) |
249.00 cc |
249.9 cc |
249.9 cc |
| Displacement (ci) |
15.19 cubic inches |
15.25 cubic inches |
15.25 cubic inches |
| Ground Clearance (in.) |
15.0 inches |
12.8 inches |
12.8 inches |
Key Specifications
Engine
Single cylinder, four-stroke
Power
Not published by manufacturer
Torque
Not published by manufacturer
Top Speed
Not published by manufacturer
Weight
98.5 kg / 217.2 lbs
Fuel Capacity
5.50 litres / 1.45 US gallons
Advertisement
Full 2020 KTM Freeride 250 F Specifications
Colours
Orange/white/black
Ground Clearance (in.)
12.8 inches
Ground Clearance (mm)
325 mm
Seat Height
915 mm / 36.0 in.
Wheelbase
1485 mm / 58.5 in.
Dry Weight
98.5 kg / 217.2 lbs
Fuel Capacity
5.50 litres / 1.45 US gallons
Bore x Stroke (in,)
3.1 x 2.1 inches
Bore x Stroke (mm)
78.0 x 52.3 mm
CO2
69.6 CO2 g/km. (CO2 - Carbon dioxide emission)
Displacement (cc)
249.9 cc
Displacement (ci)
15.25 cubic inches
Engine Type
Single cylinder, four-stroke
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Compression Ratio
14.0:1
Fuel Consumption
3.00 litres/100 km (33.3 km/l or 78.41 mpg)
Ignition
Keihin EMS
Starter
Electric
Clutch
Wet multi-disc clutch / hydraulically operated
Final Drive
Chain (final drive)
Gearbox
5-speed
Primary Drive
13:48. Primary drive: 22:68.
Frame Type
Perimeter steel-aluminium composite frame
Suspension - Front
WP-USD, AER 48, Ø 43 mm
Suspension - Rear
WP Xplor PDS shock absorber
Rake
26.5°
Wheel Travel - Front
250 mm / 9.8 in.
Wheel Travel - Rear
260 mm / 10.2 in.
Brakes - Front
Single disc. Brake calipers on floating bearings
Brakes - Rear
Single disc. Brake calipers on floating bearings
Rims
CNC machined hubs. Excel rims. Wire spoked.
Specifications are compiled from manufacturer documentation and cross-referenced
technical sources, and corrected on an ongoing basis.
