Key Specifications
Engine
Single cylinder, four-stroke
Weight
98.5 kg / 217.2 lbs
Fuel Capacity
5.50 litres / 1.45 US gallons
Advertisement

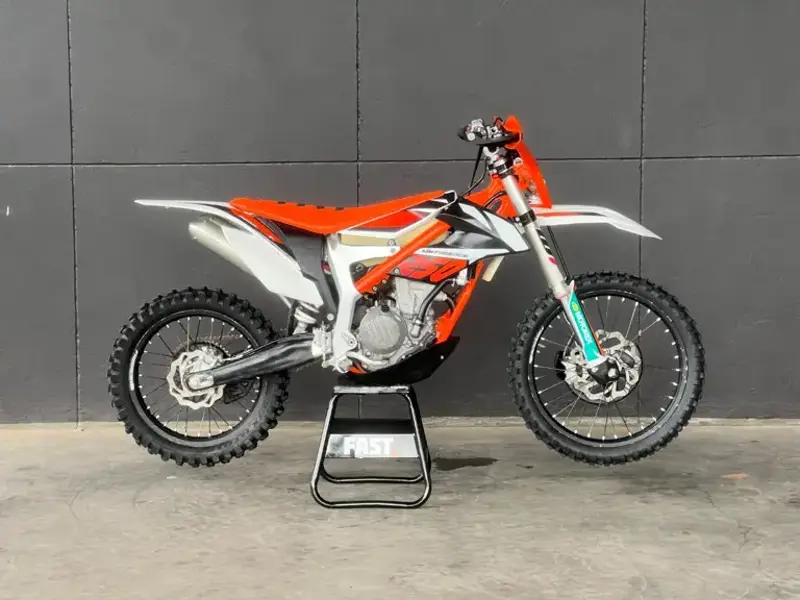

Full 2019 KTM Freeride 250 F Specifications
Colours
Orange/white/black
Ground Clearance (in.)
12.8 inches
Ground Clearance (mm)
325 mm
Seat Height
915 mm / 36.0 in.
Wheelbase
1485 mm / 58.5 in.
Dry Weight
98.5 kg / 217.2 lbs
Fuel Capacity
5.50 litres / 1.45 US gallons
Bore x Stroke (in,)
3.1 x 2.1 inches
Bore x Stroke (mm)
78.0 x 52.3 mm
CO2
69.6 CO2 g/km. (CO2 - Carbon dioxide emission)
Displacement (cc)
249.9 cc
Displacement (ci)
15.25 cubic inches
Engine Type
Single cylinder, four-stroke
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Detail
Balancer shaft
Compression Ratio
14.0:1
Fuel Consumption
3.00 litres/100 km (33.3 km/l or 78.41 mpg)
Ignition
Keihin EMS
Starter
Electric
Clutch
Wet multi-disc clutch / hydraulically operated
Final Drive
Chain (final drive)
Gearbox
5-speed
Primary Drive
13:48. Primary drive: 22:68.
Frame Type
Perimeter steel-aluminium composite frame
Suspension - Front
WP-USD, AER 48, Ø 48 mm
Suspension - Rear
WP shock absorber with linkage
Rake
26.5°
Wheel Travel - Front
250 mm / 9.8 in.
Wheel Travel - Rear
260 mm / 10.2 in.
Brakes - Front
Single disc. Brake calipers on floating bearings
Brakes - Rear
Single disc. Brake calipers on floating bearings
Rims
CNC machined hubs. Excel rims. Wire spoked.
